Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

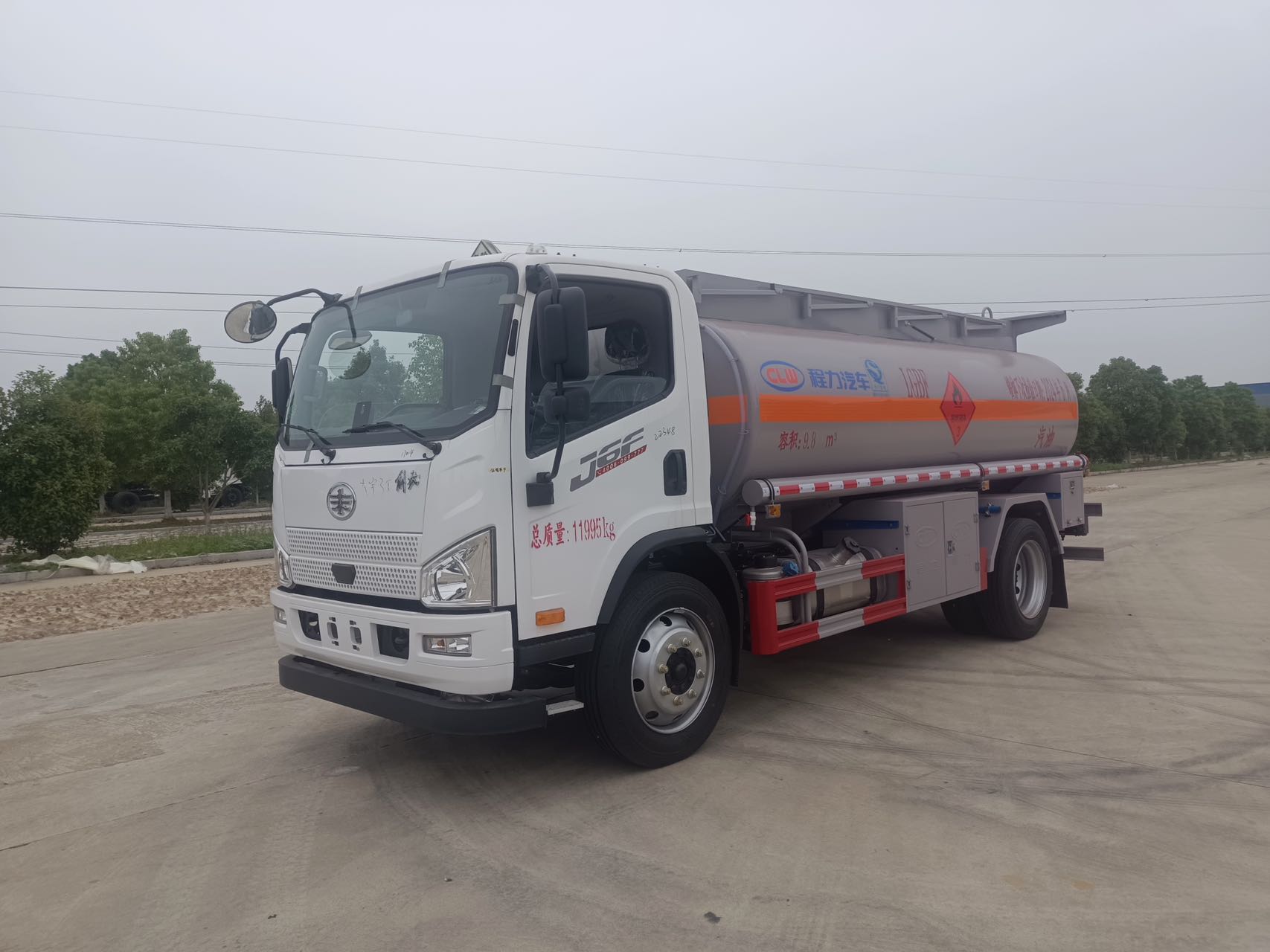

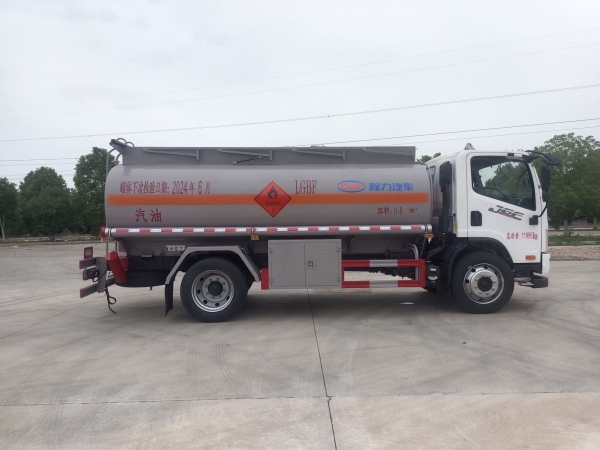

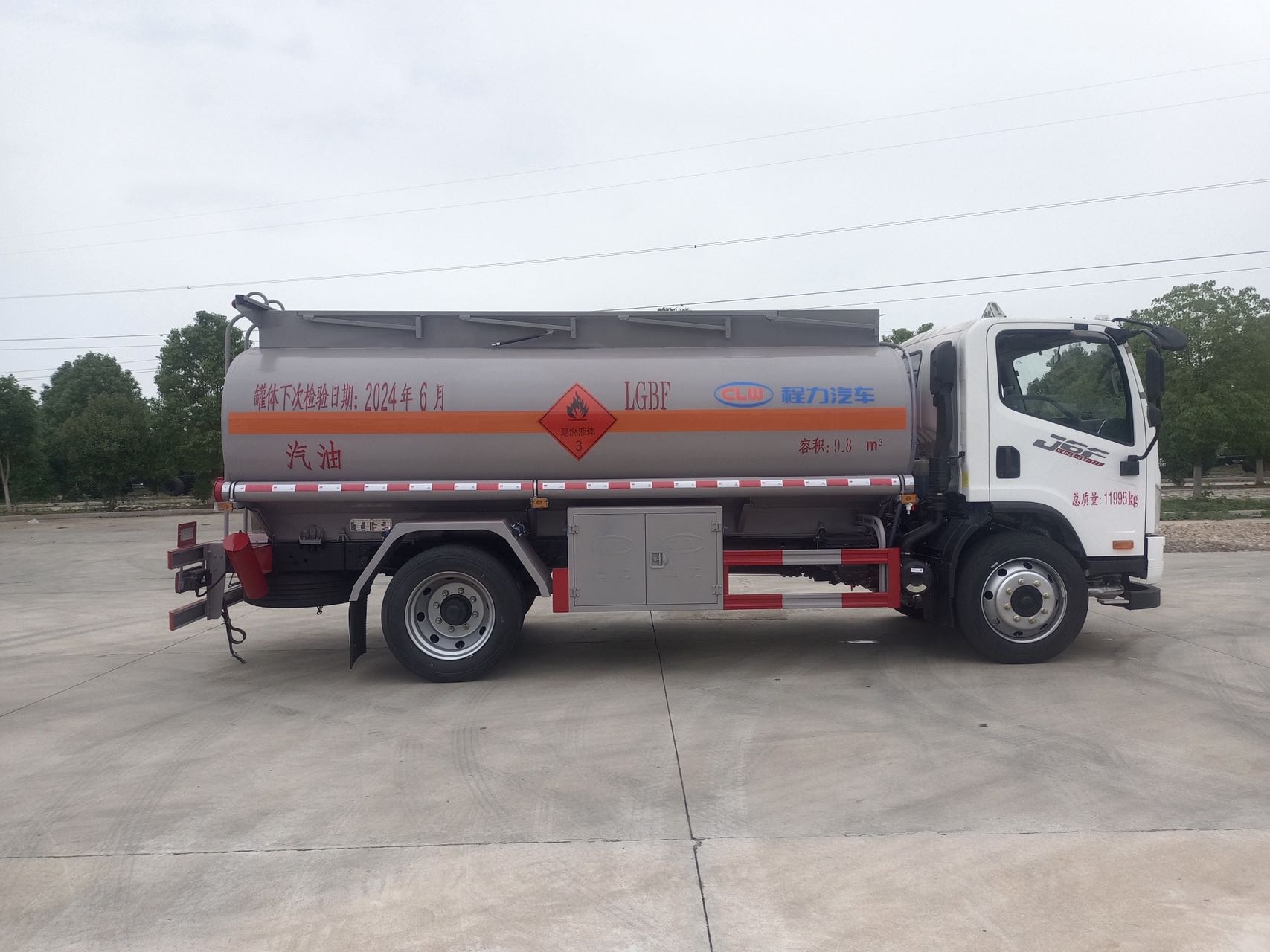

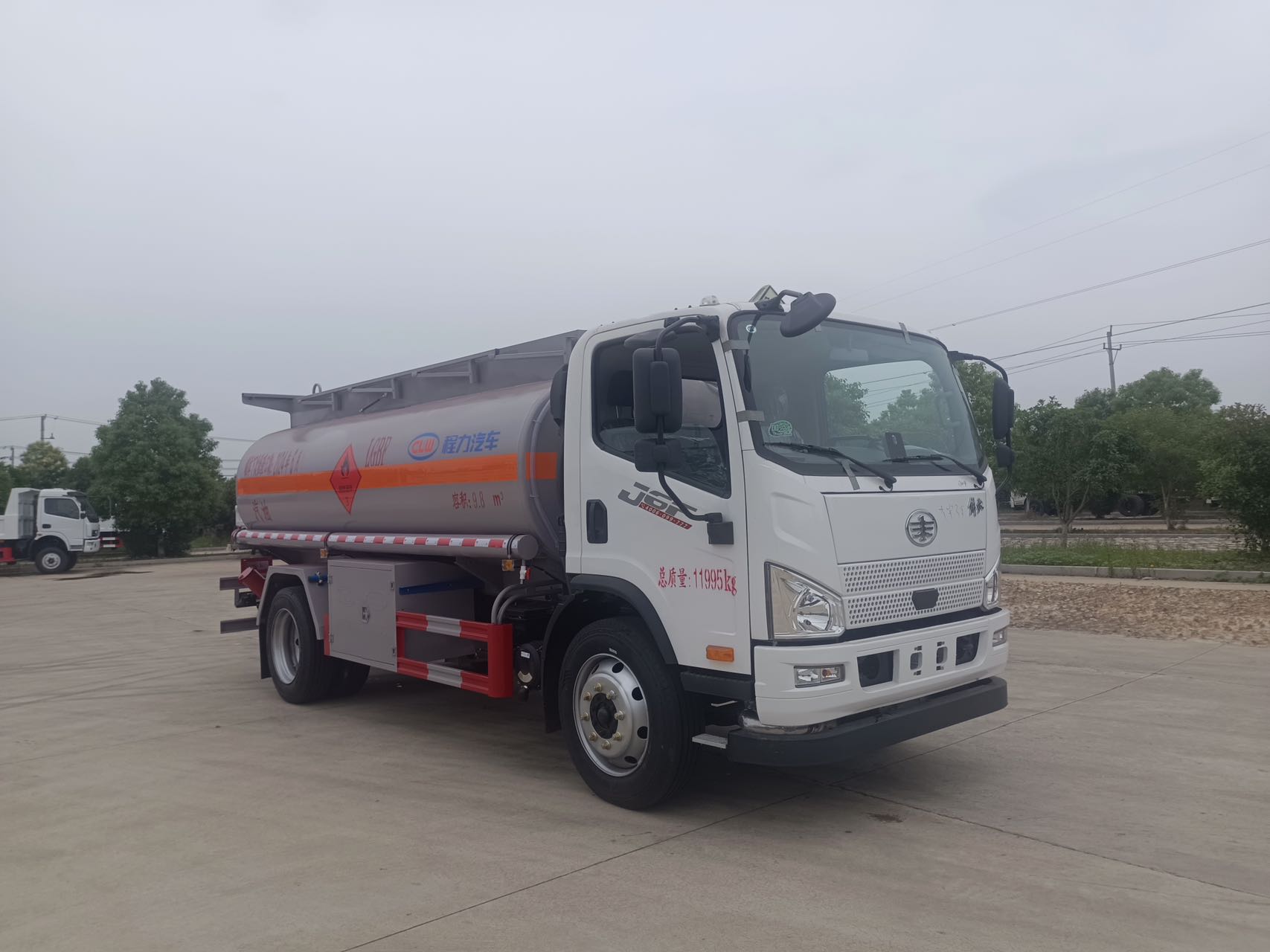

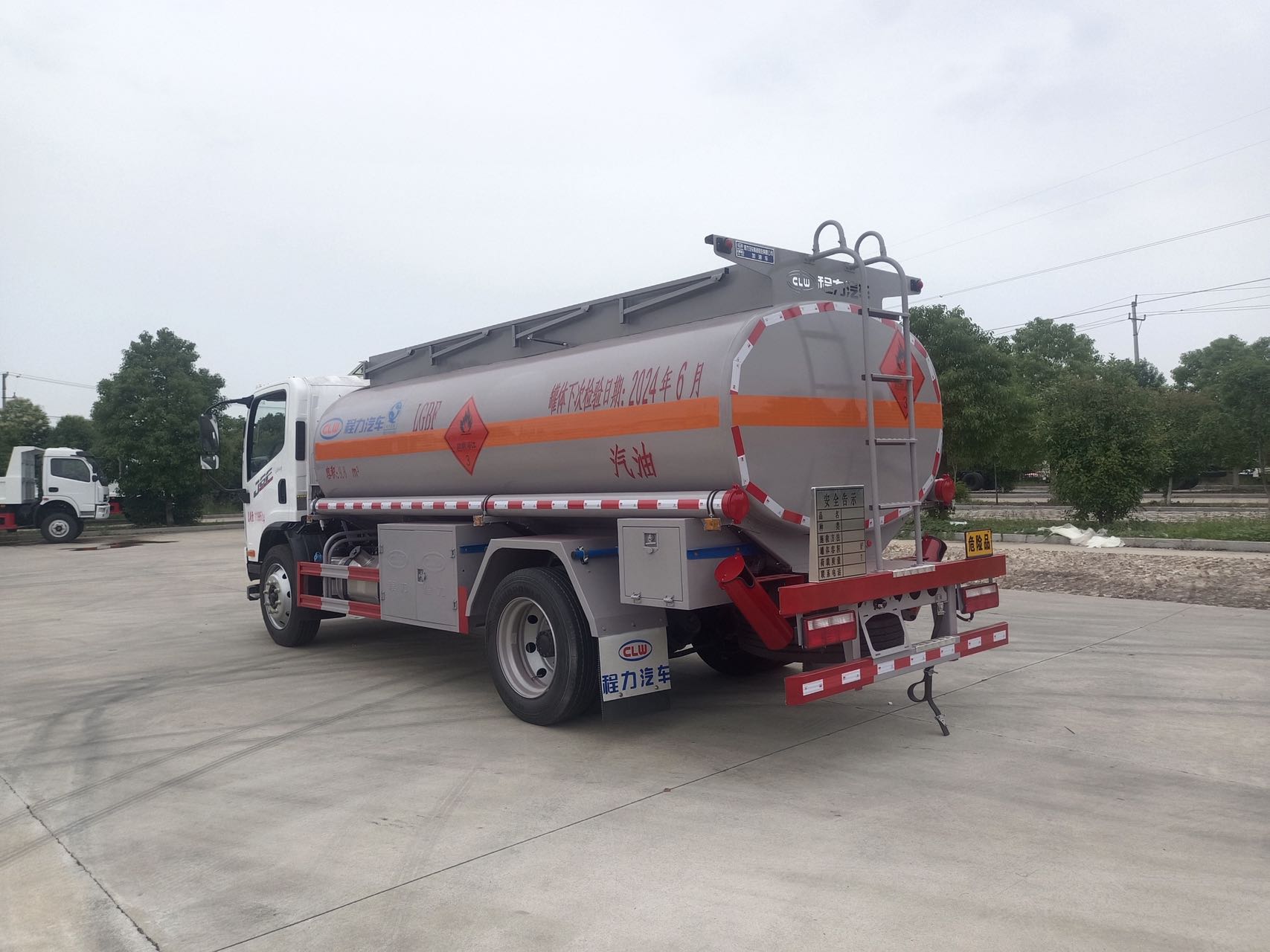

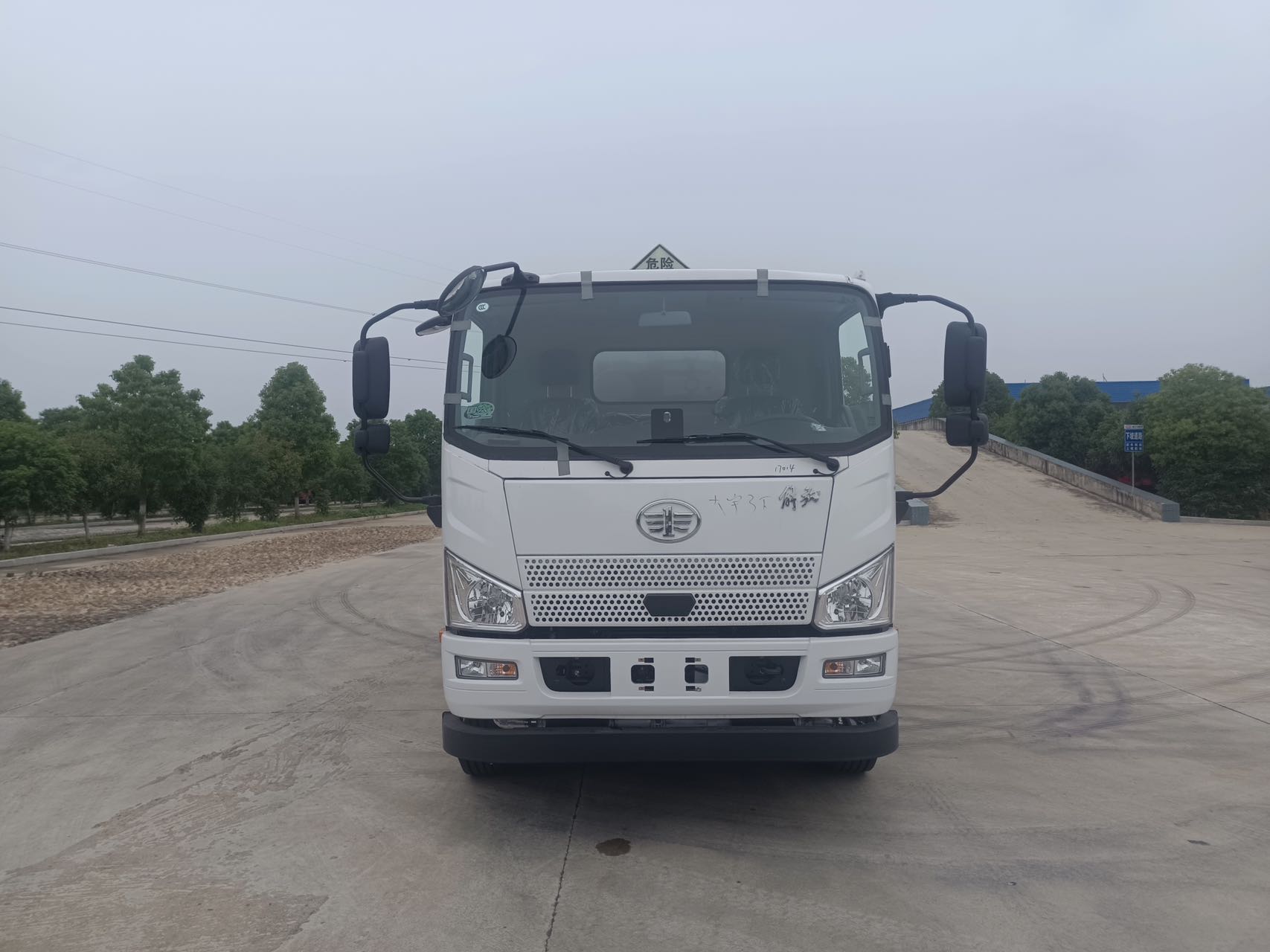

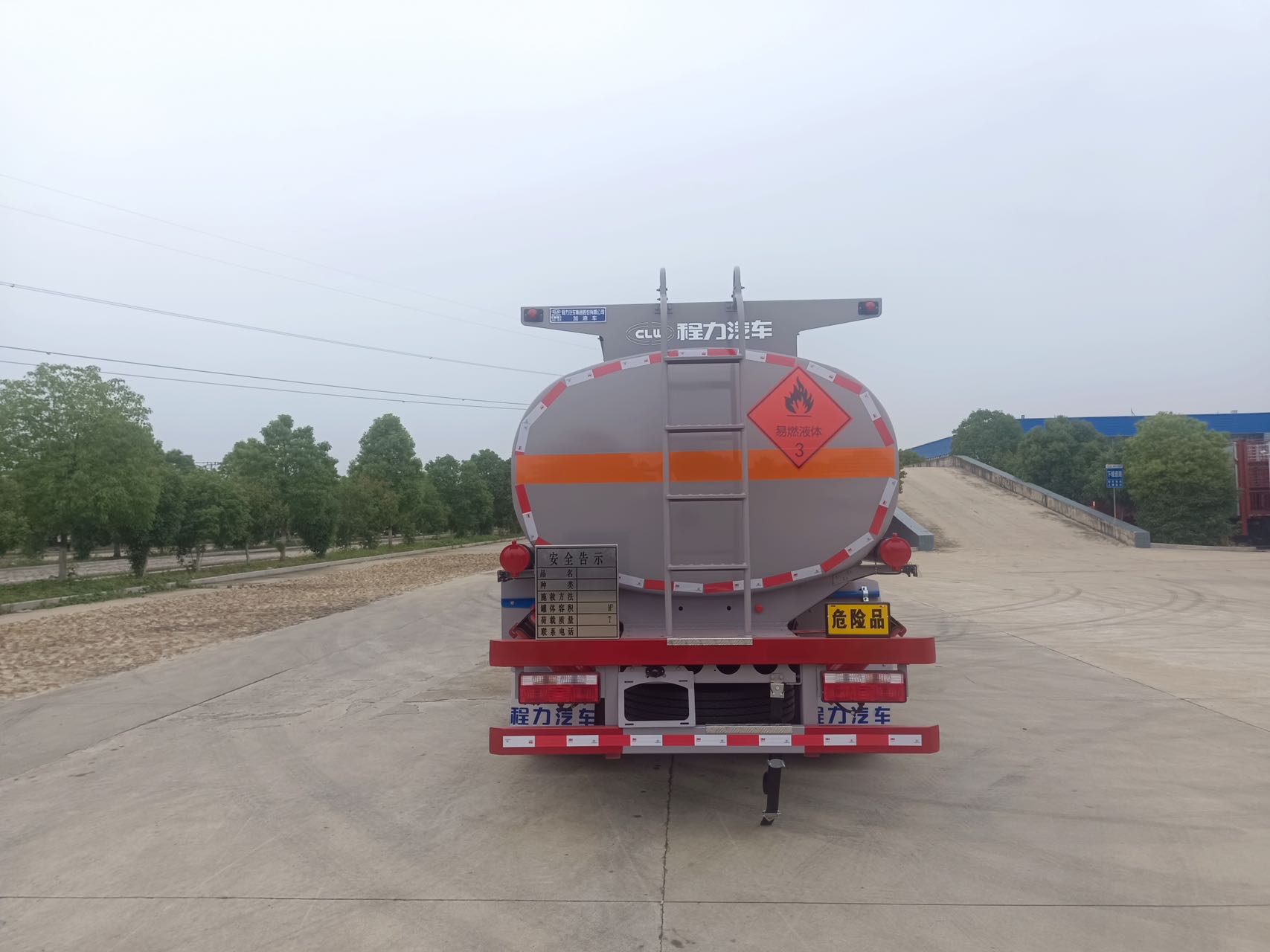

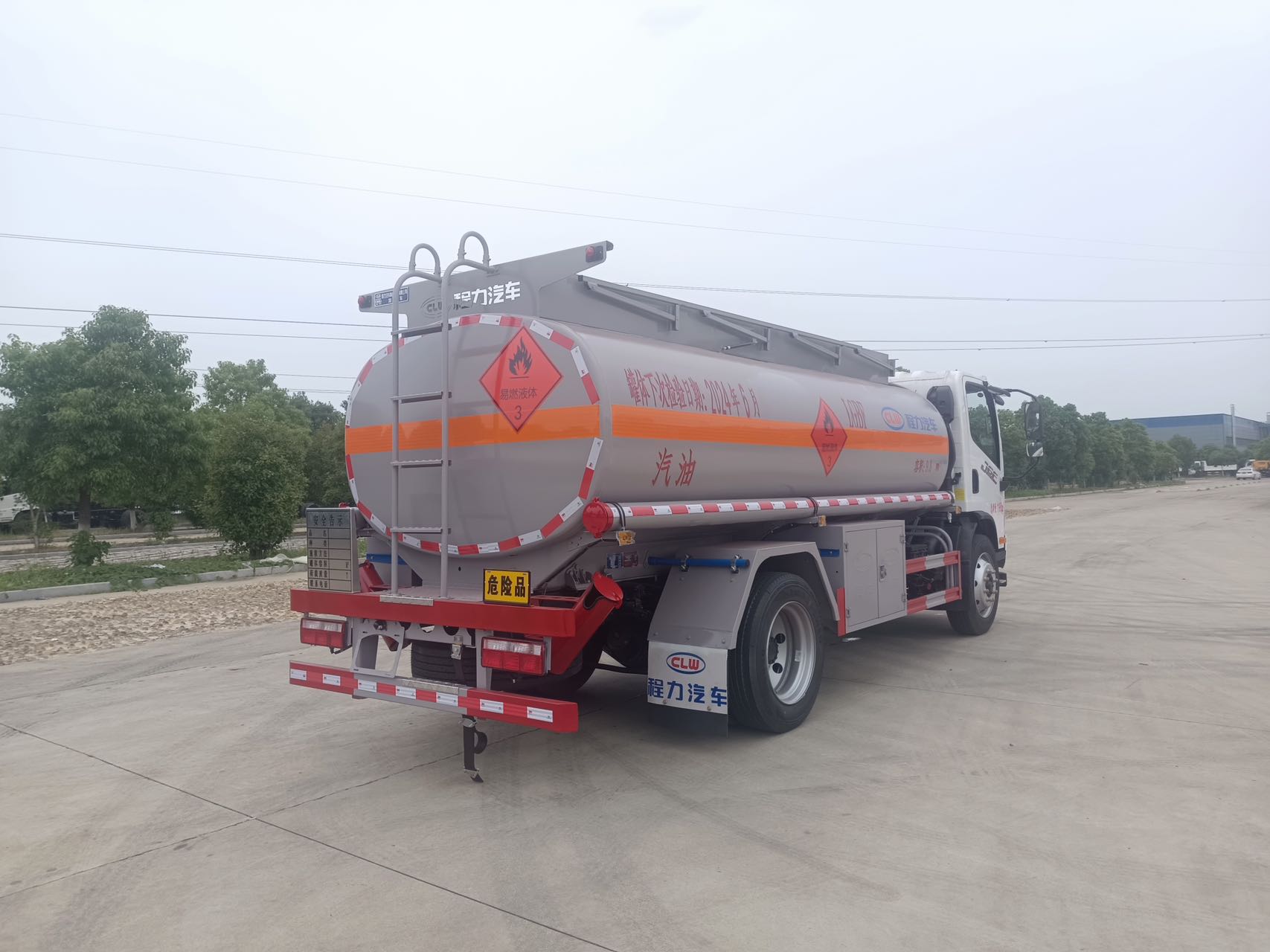

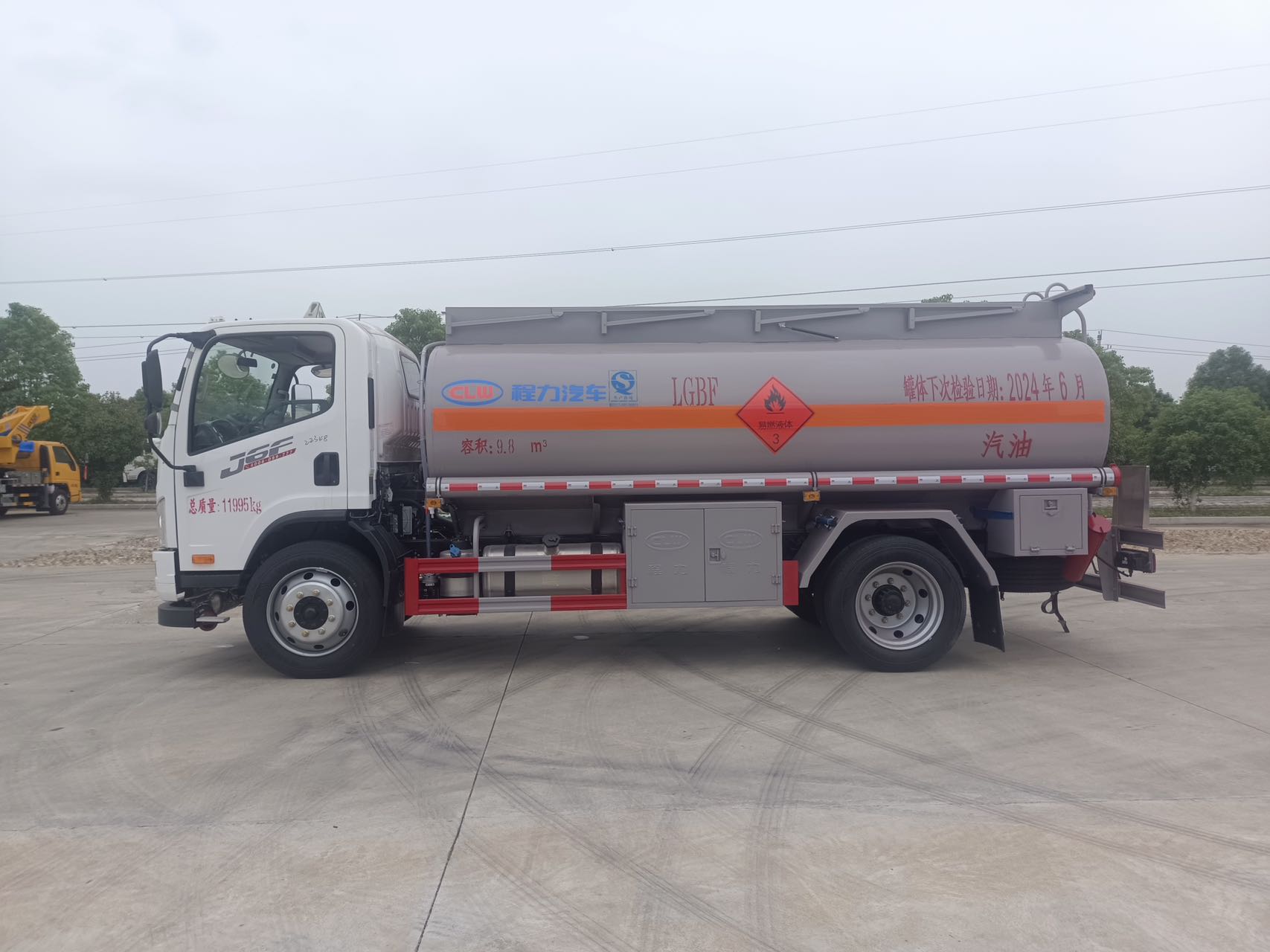

1. Pictures of the FAW fuel truck
2. Parameters of the whole fuel truck
| model | CL5121GJY6BWG | brand | CLW |
| outer dimensions | 6950*2350*2800mm | GVW | 11995kg |
| rated loading capacity | 6545kg | curb weight | 5255kg |
| axle loading capacity | 4360/7635kg | front/ rear suspension | 1155/1895mm |
3. Parameters of the fuel truck chassis
| model | CA1120P40K59L4BE6A84 | brand | FAW |
| axle number | 2 | tyre number | 6 |
| wheelbase | 4200mm | tyre size | 255/70R22.5 |
| front/ rear gauge | 1738/1678mm | leaf spring number | 3/3+3 |
| fuel type | diesel | emission standard | EURO 6 |
| engine brand | Dachai | horsepower | 180hp |
4. The fuel truck chassis configuration: FAW original dangerous goods chassis, FAW J6F flat top single row cab, Dachai EURO 6 emission standard engine 180 HP, with air conditioning, 8 speed transmission, air brake, double battery 24V, 340G welding bridge (7 tons rear axle), electromagnetic + manual power switch, air brake, power steering, 255 vacuum tire, with exhaust brake, front disc brake, speed limiter, ABS, GPS, double warning with new rules.
5. The fuel truck body configuration: Made in strict accordance with the announcement volume of 9.8 square, Q235B plate, barrel body 4.2mm thick, head 4.5mm thick, partition 4.2mm thick, single bin, tank top one European standard tank mouth, one submarine valve, with 76/40 special oil pump (pump in and pump out), (optional large flow refueling machine and 15 meters thick reel and gun) full set of European standard, Rear ladder, manual guardrail, toolbox, rear bumper, side guardrail, other standard.
