Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

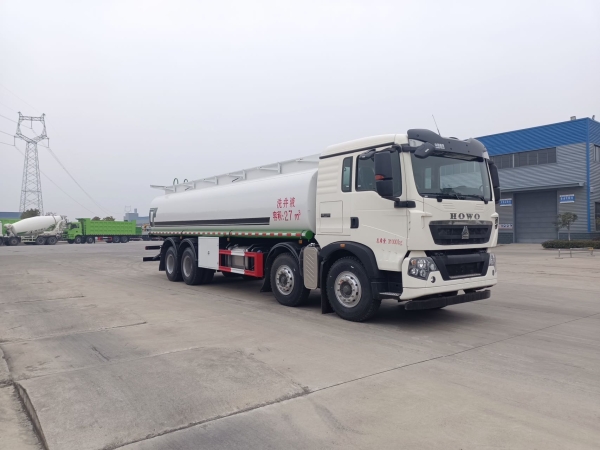

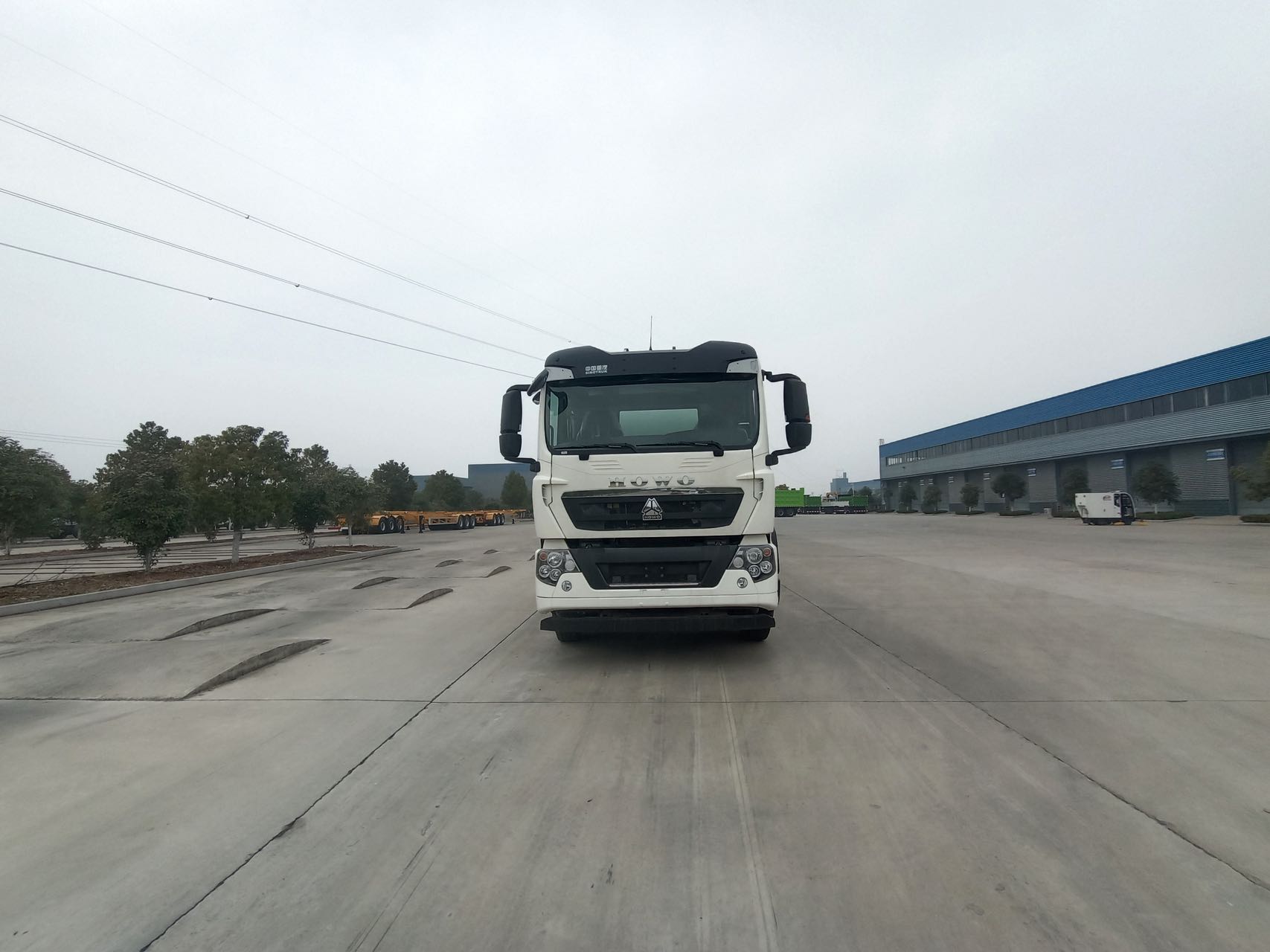

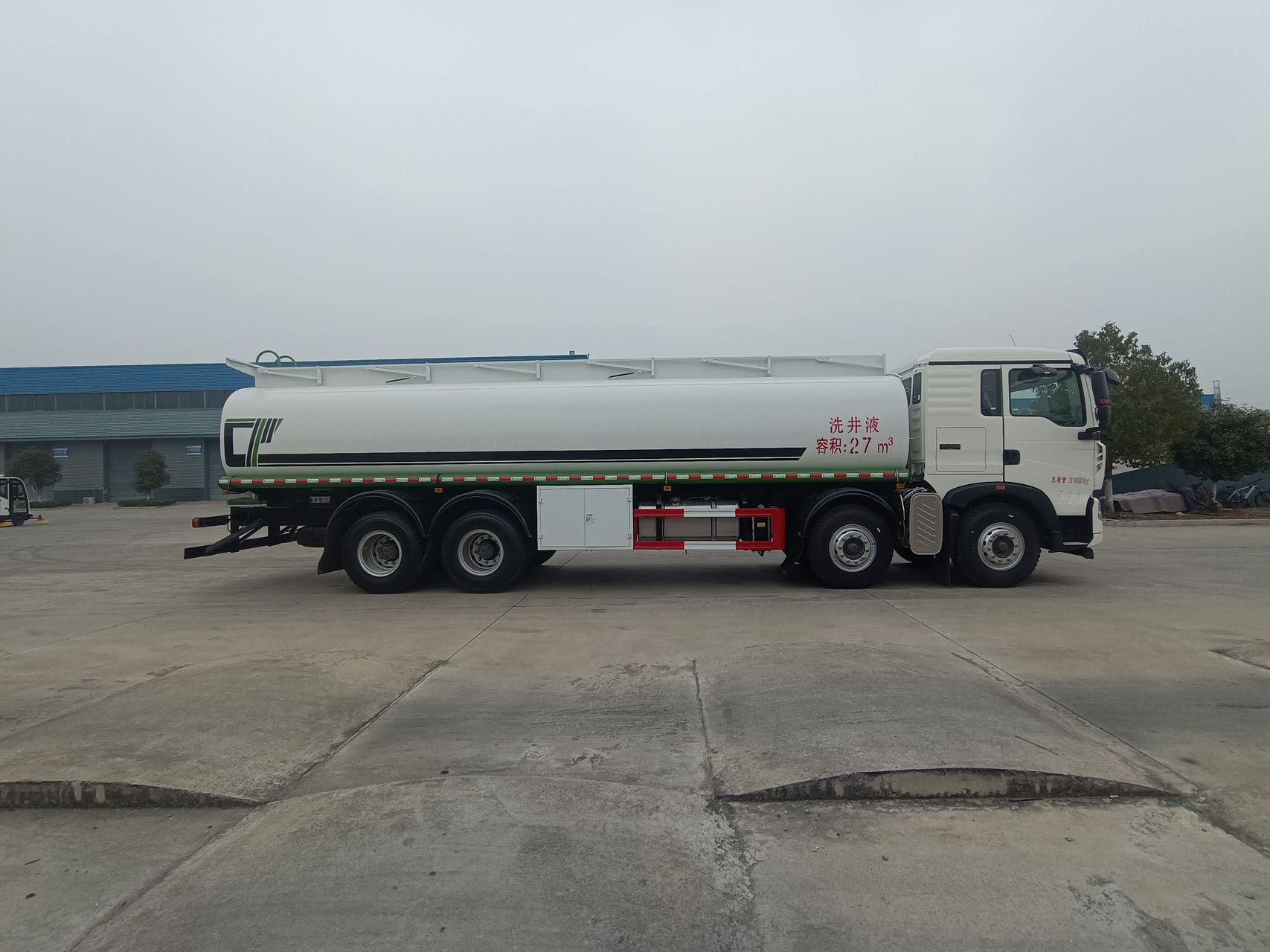

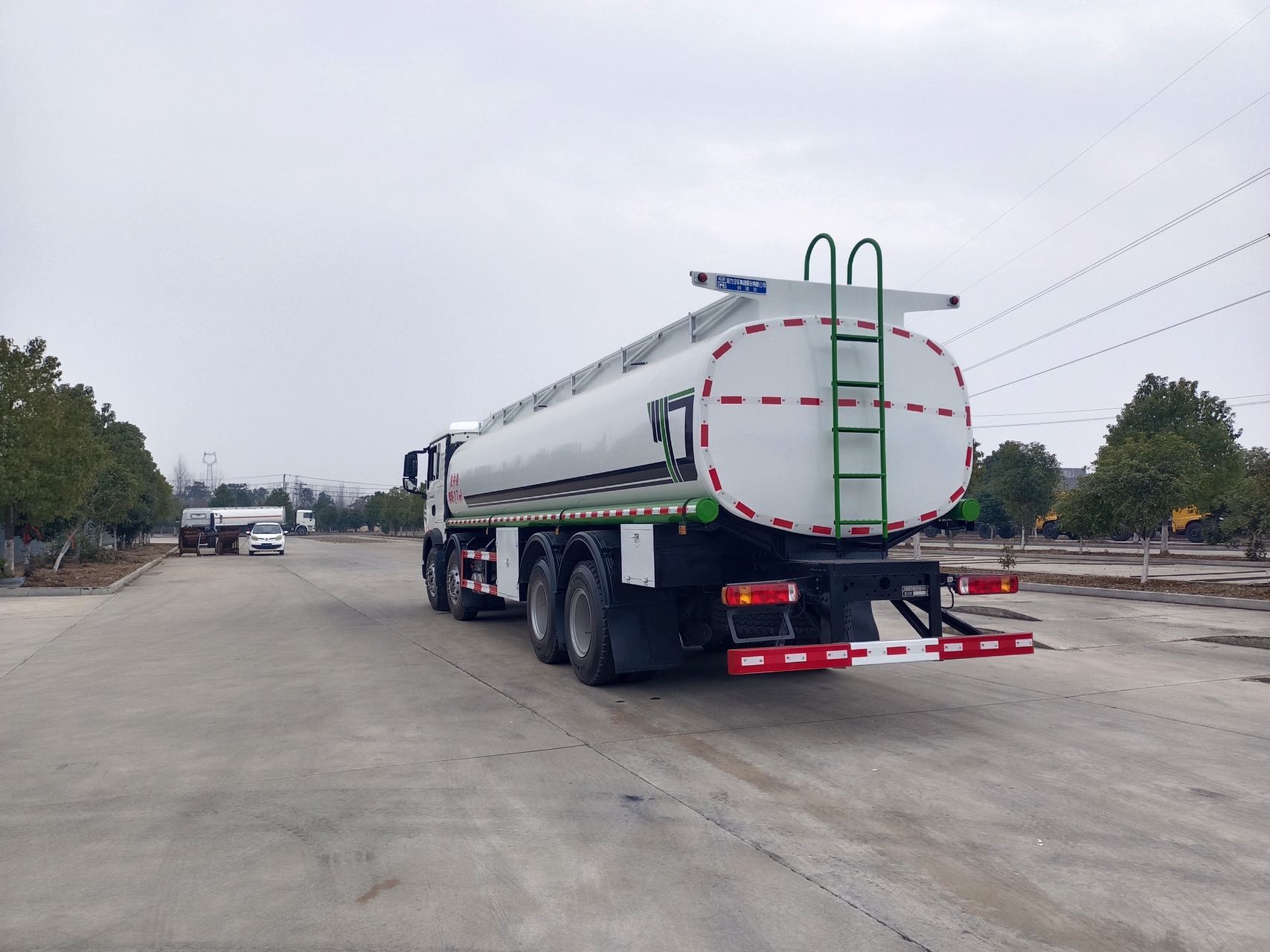

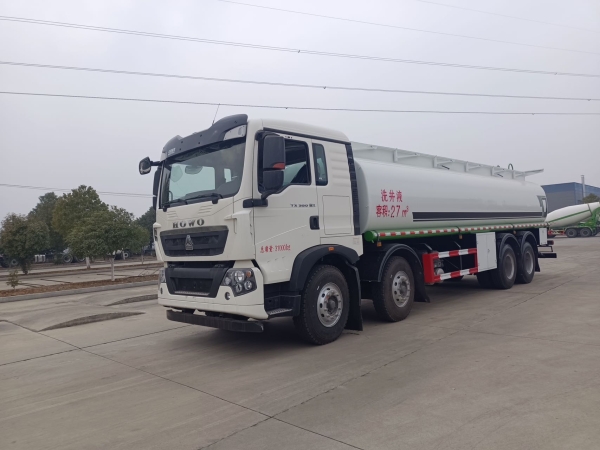

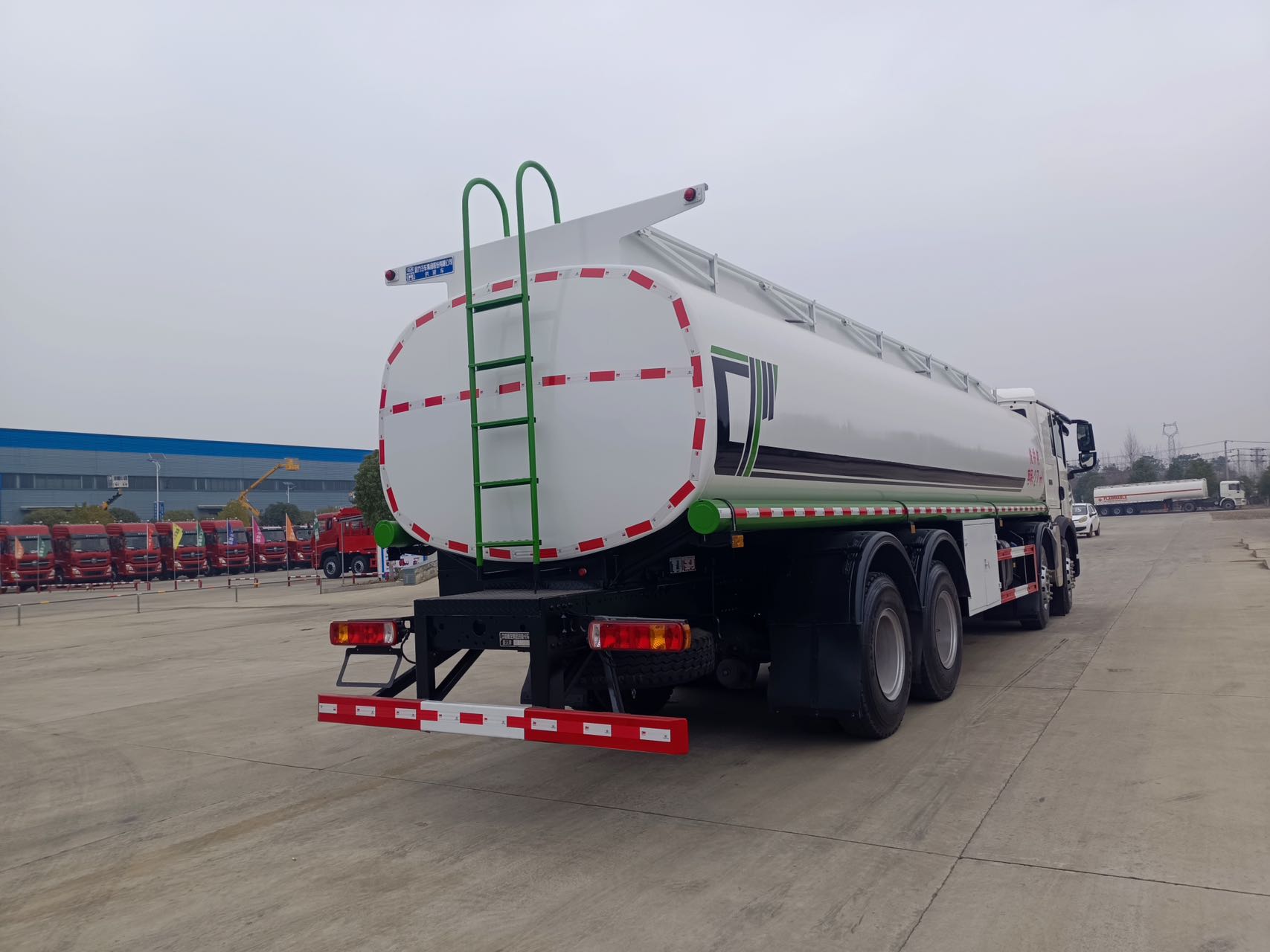

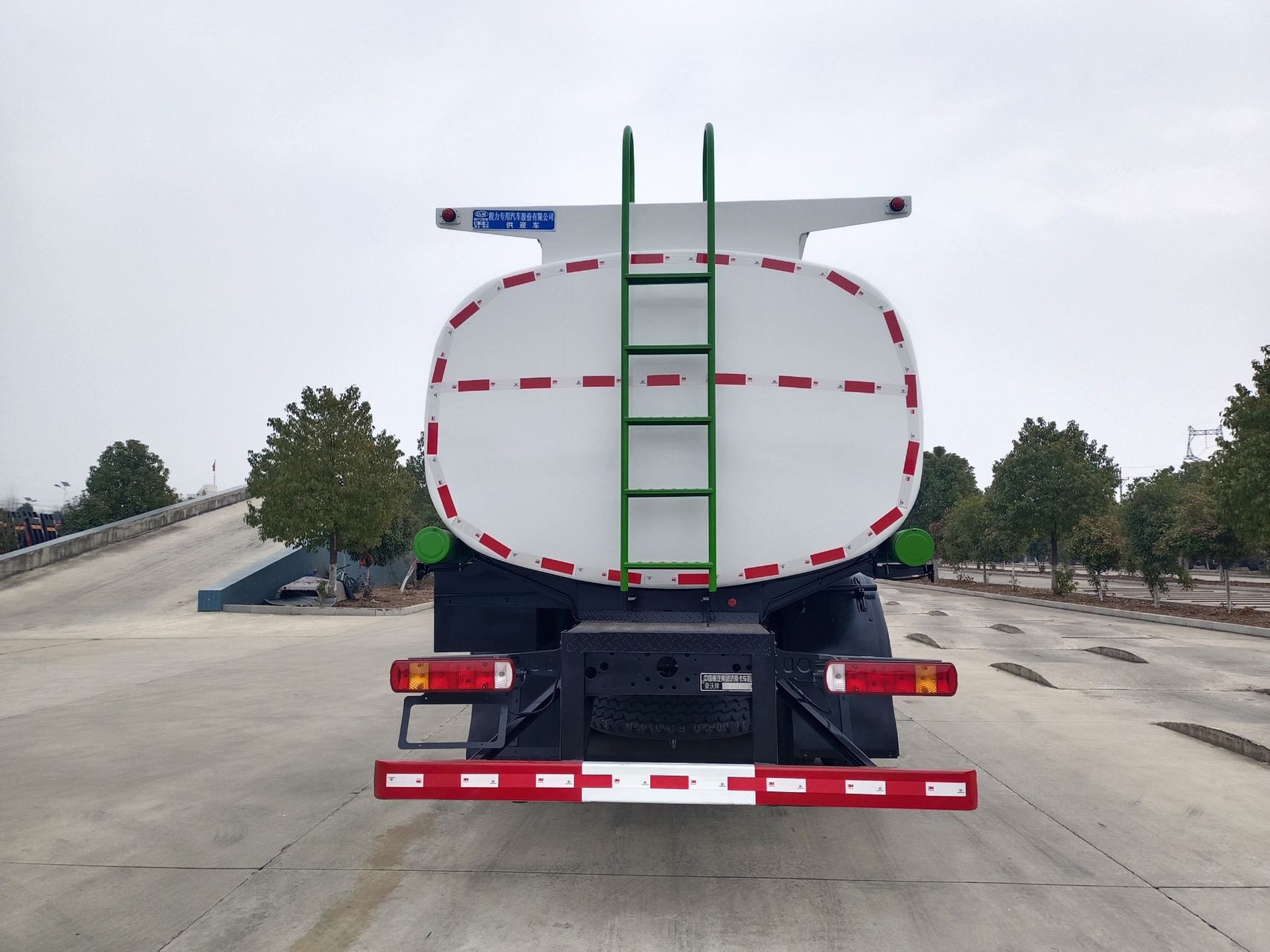

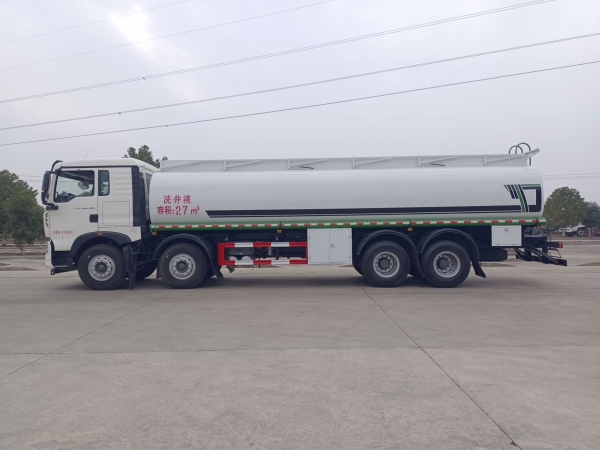

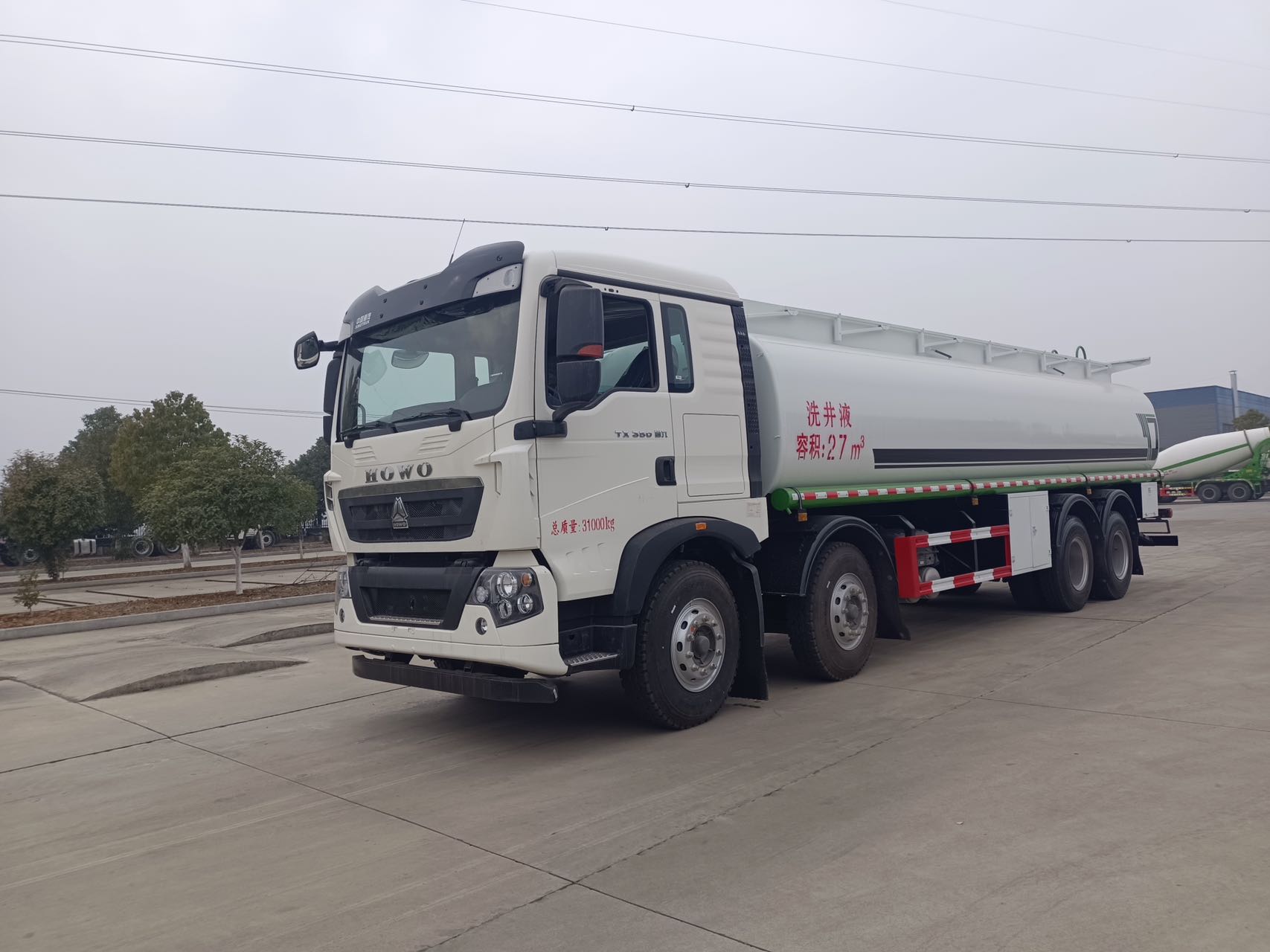

1. Pictures of the HOWO 27m3 washing fluid truck








2. Parameters of the HOWO washing fluid truck
| model | CLW5311TGYZ6 | brand | CLW |
| GVW | 31000KG | rated loading capacity | 16100kg |
| curb weight | 14705kg | axle loading capacity | 6500/7000/17500(rear double axle) |
| front/ rear suspension | 1430/2690mm | passengers | 2/3 |
| max speed | 89km/h | approach/ departure angle | 19/10° |
3. Parameters of the HOWO chassis
| model | ZZ1317N466GF1 | brand | HOWO |
| axle number | 4 | tyre number | 12 |
| wheelbase | 1800+3800+1350mm | front/ rear gauge | 2015/1830mm |
| leaf spring number | 11/11/12 | fuel type | diesel |
| engine model | MC07H.35-60 | horsepower | 350hp |
| transmisson box | HW13709XSTC2 |
4. Effective volume of the tank body: 27m3, Q235 carbon steel, carbon steel steel tank 5mm thick, carbon steel head 5.5mm thick, partition 4mm thick, with 2 ordinary tank mouth, with 80-60 pump, pump in and pump out, 4 inch pipe, 3 inch outlet, all other accessories are carbon steel material
