Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

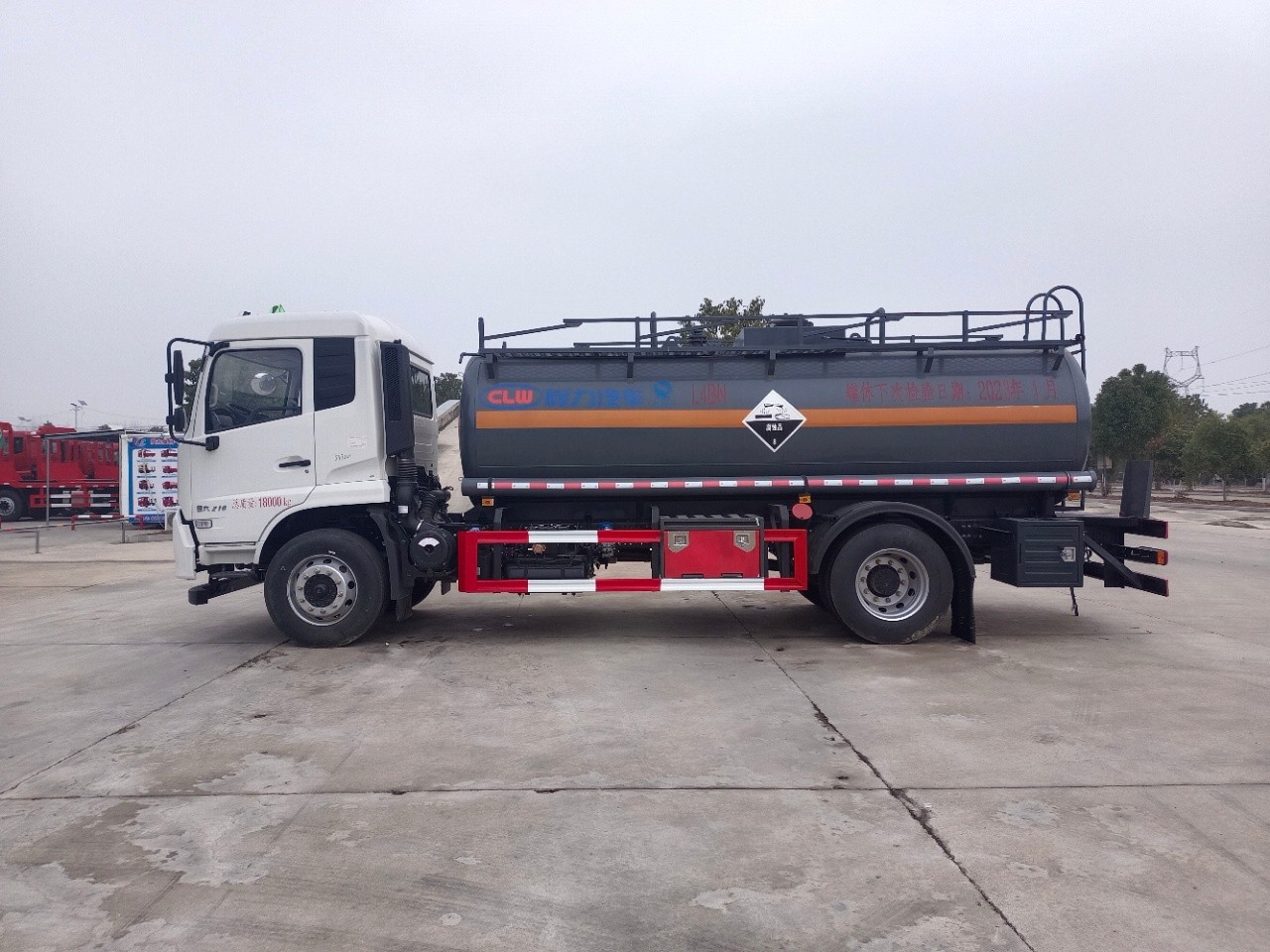

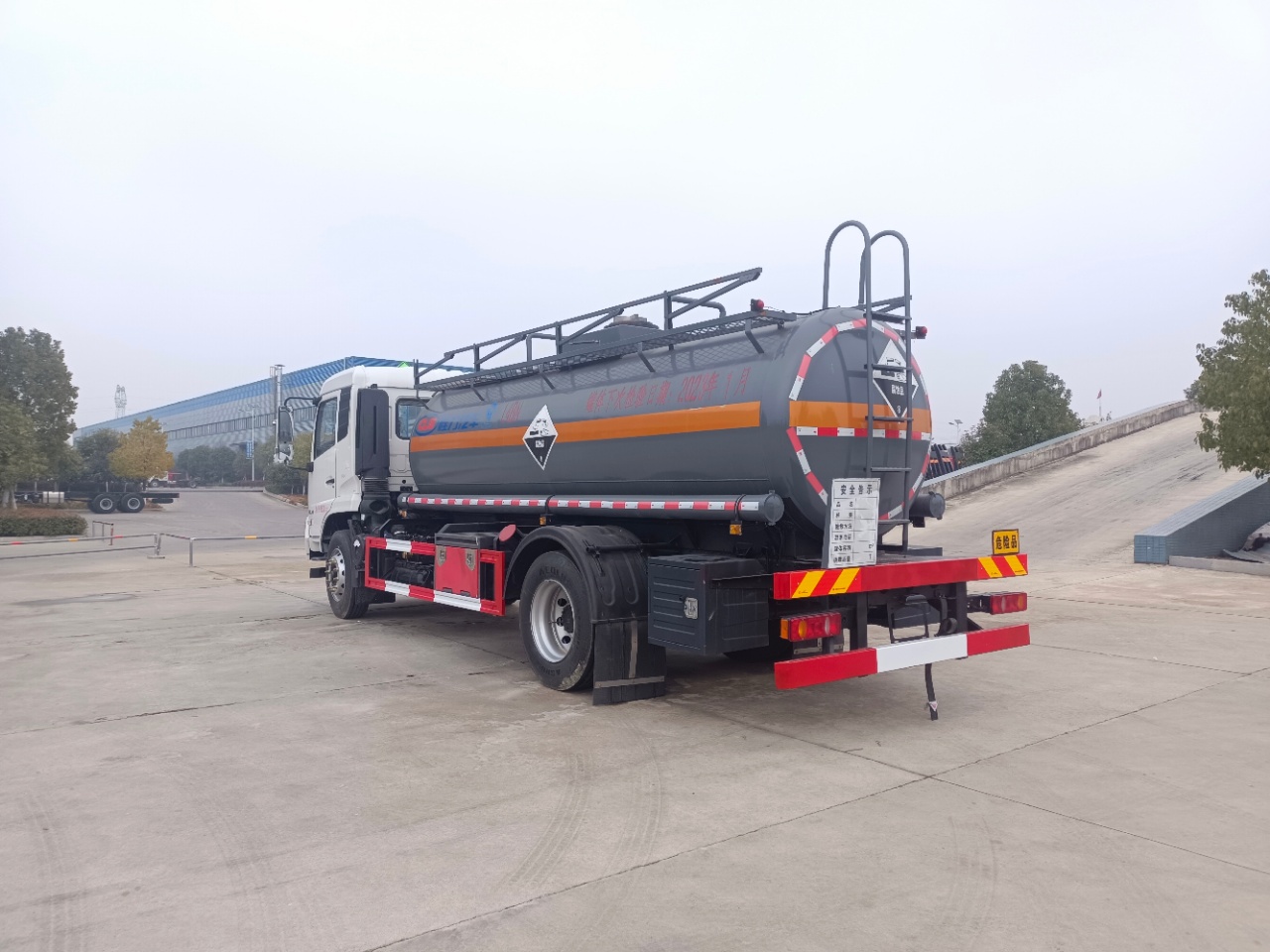

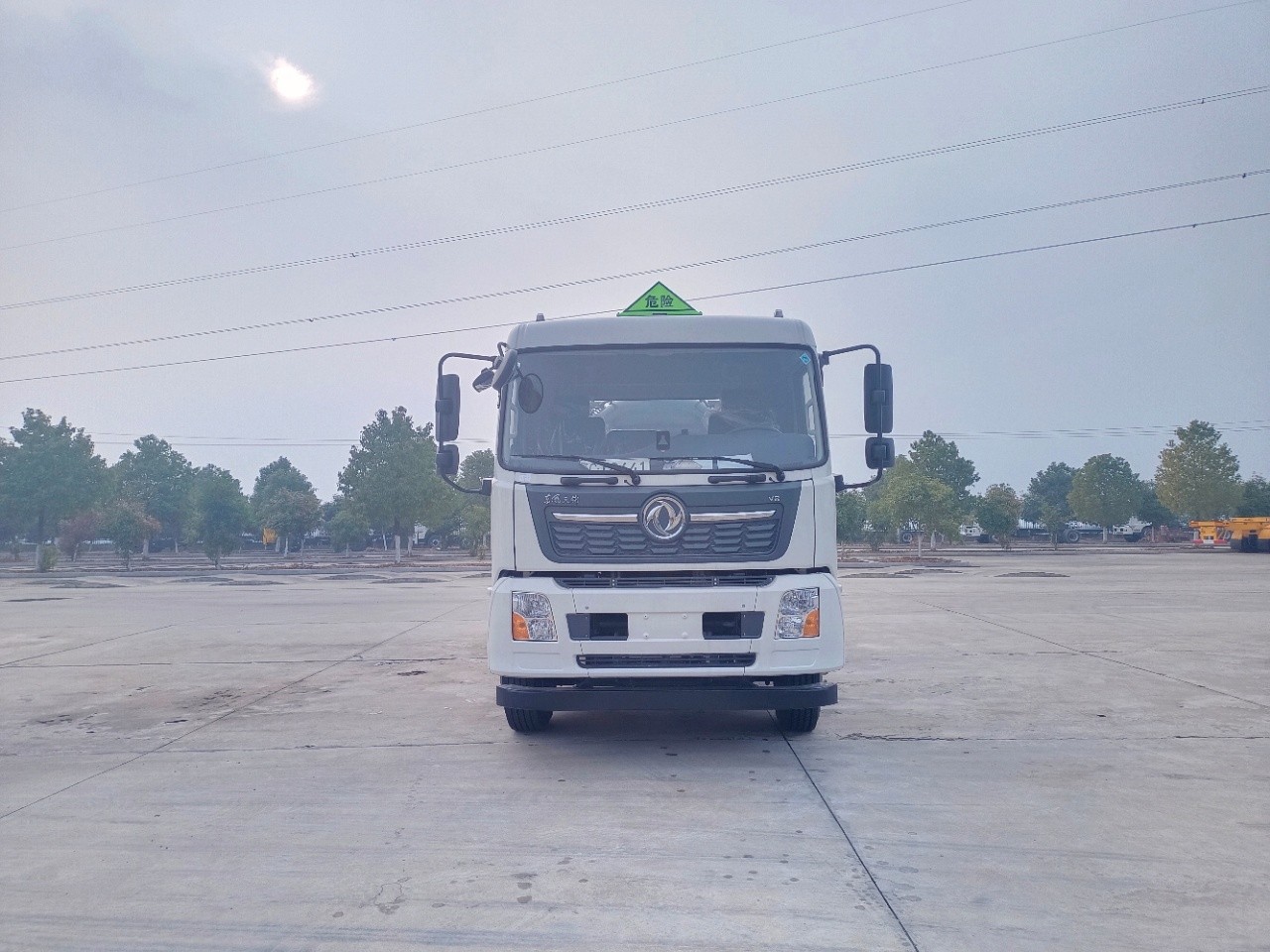

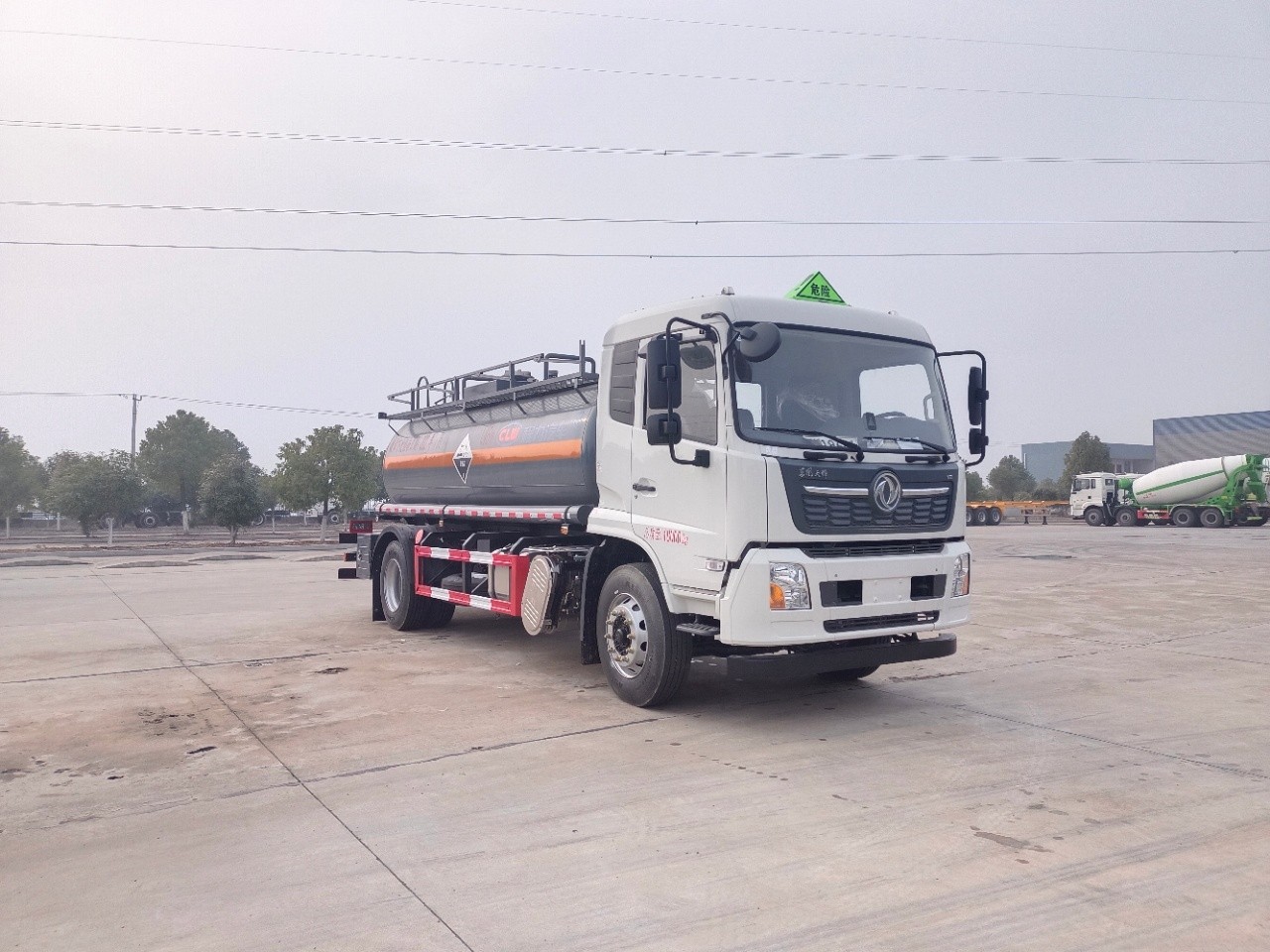

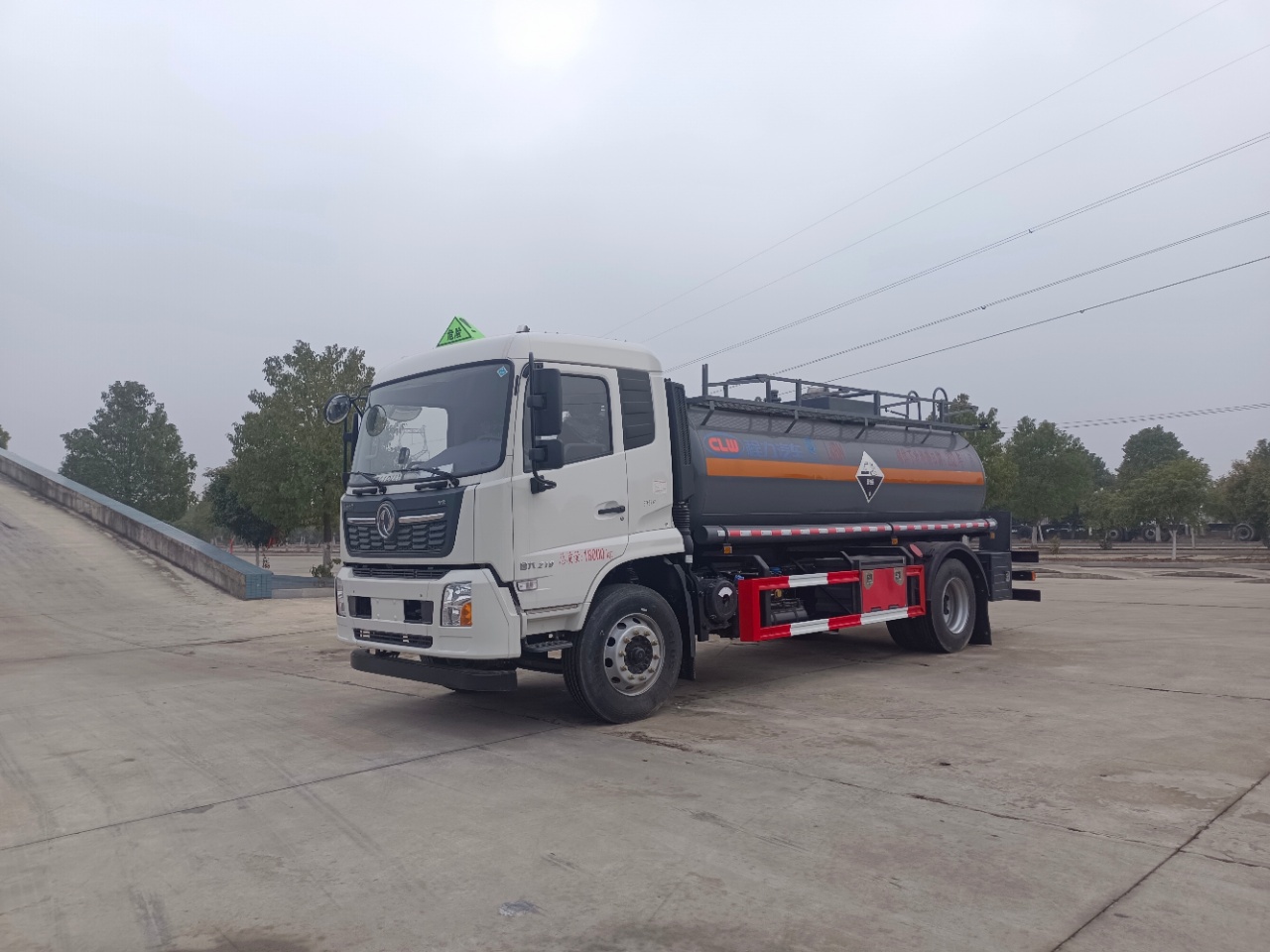

1. Pictures of the ammonia water truck
2. Parameters of the ammonia water truck
| model | CL5180GFWD6 | brand | CLW |
| outer dimensions | 8415*2500*3200mm | GVW | 18000kg |
| rated loading capacity | 10000kg | curb weight | 7805kg |
| axle loading capacity | 6500/11500kg | front/rear suspension | 1430/2285mm |
| passengers | 2/3 | max speed | 80km/h |
| appraoch/departure angle | 16/12 | oil consumption | 26.5 |
3. Parameters of the ammonia water truck
| model | DFH1180EX9 | brand | Dongfeng |
| axle number | 2 | tyre number | 6 |
| wheelbase | 4700mm | tyre size | 275/80R22.518PR |
| front gauge | 1910mm | rear gauge | 1840mm |
| leaf spring number | 3/- | fuel type | diesel |
| emissions standard | GB17691-2018 EURO VI | engine model | B6.2NS6B210 |
| engine brand | Cummins | power | 154KW |
| displacement | 6200ml |
4. Parameters of the ammonia water truck body
| body volume | 9.5m3 material SS304 | tank thickness | tank 4.75mm head 5.75mm |
| Other configurations: one compartment, the top of the tank a stainless steel tank mouth, a stainless steel safety valve, a new stainless steel submarine valve, after the tail left and right self-flow DN80 stainless steel ball valve, after the ladder, manual guardrail, tool box, rear bumper, test guardrail, suitable for ammonia transport. | |||
5. Ammonia water truck loading and unloading requirements.
During the transportation of ammonia, it is essential to ensure proper operation and safety. First of all, ammonia transport needs to use closed tank trucks that meet national standards, and such vehicles need to use stainless steel or aluminum alloy materials to make tanks to ensure their tightness and corrosion resistance. At the same time, the vehicle also needs to be equipped with a special pumping device and sealed pipelines to effectively prevent liquid leakage and volatilization.
In the preparation work before transportation, it is necessary to carry out a comprehensive and detailed inspection of the vehicle to ensure that the vehicle and the pipeline are not damaged or worn to ensure the safety of the transportation process. In addition, clear ammonia transport signs should also be posted on the vehicle, and communicate with the receiving and shipping units in advance to ensure the accuracy of transportation information.
During the loading and unloading operation, the loading and unloading of ammonia should be carried out in a closed working area and operated by special operators wearing self-propelled gas masks. In the loading and unloading process, special attention should be paid to stabilize the tank car to prevent the vehicle from tilting or collapsing, and close monitoring should be done to avoid the leakage and evaporation of ammonia.
Finally, in terms of safety measures, ammonia transport vehicles must follow the prescribed routes and strictly abide by traffic rules. During the transportation process, the air circulation equipment should be turned on to reduce the ammonia concentration in the tank car and ensure the safety of personnel. In case of emergency, stop the car immediately and contact the relevant departments to take timely and effective measures to deal with the danger.
In short, the operation and safety management specifications of ammonia transport vehicles cover many aspects such as vehicle conditions, preparation before transportation, loading and unloading operations and safety measures. Enterprises and individuals must strictly abide by these regulations to ensure the safety and environmental protection of ammonia transportation, so as to protect personnel life and property safety and environmental health.
