Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

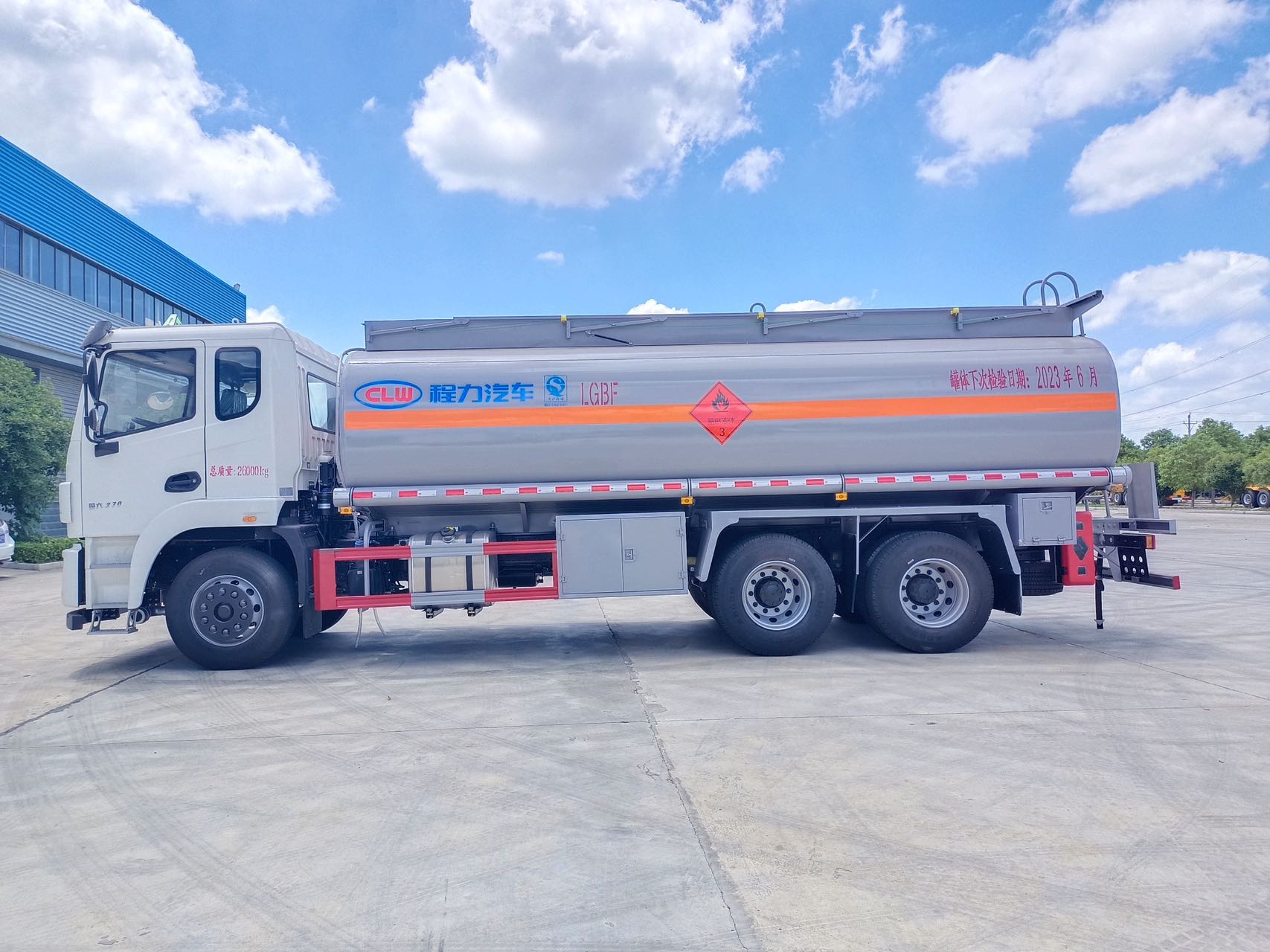

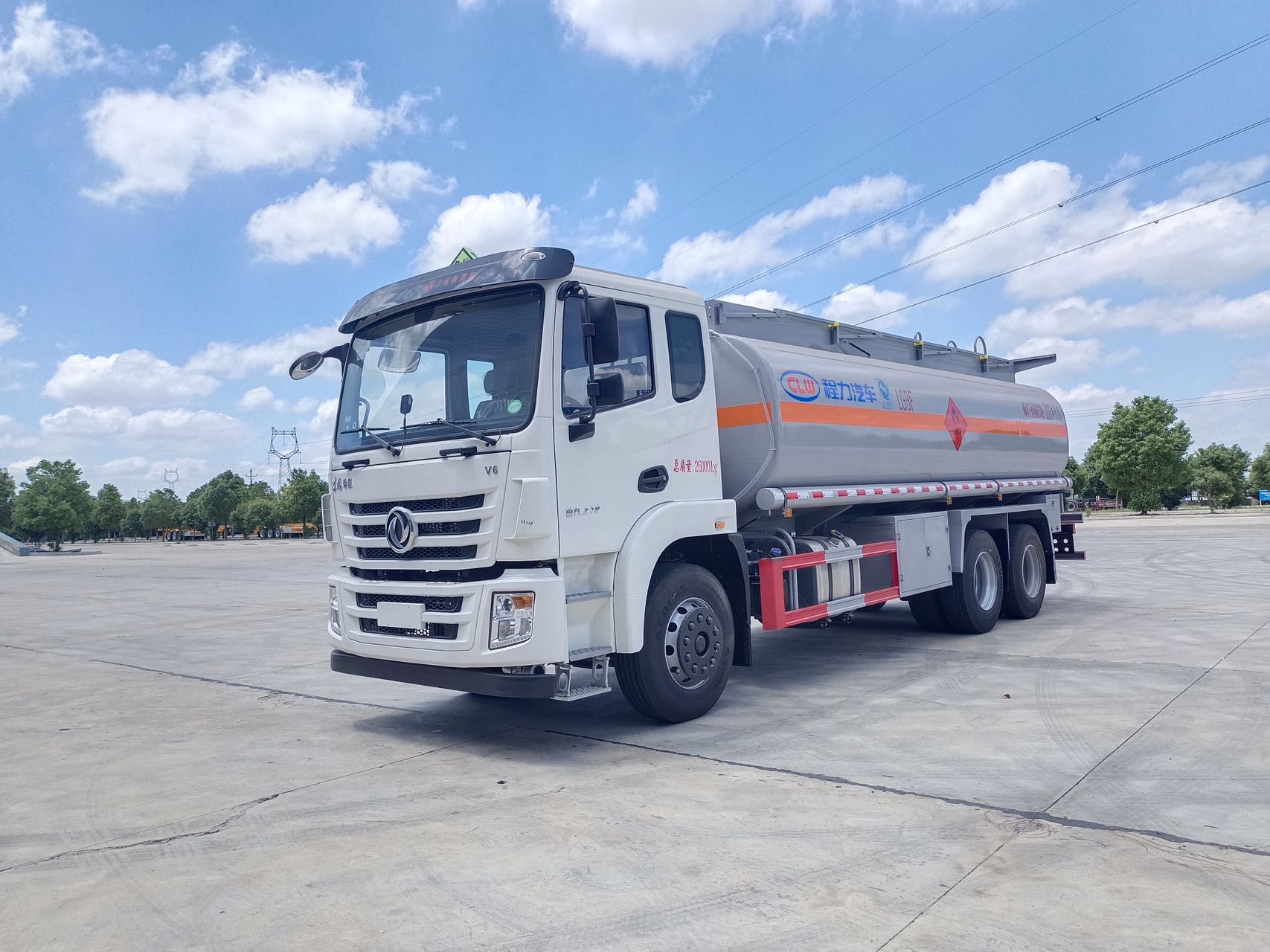

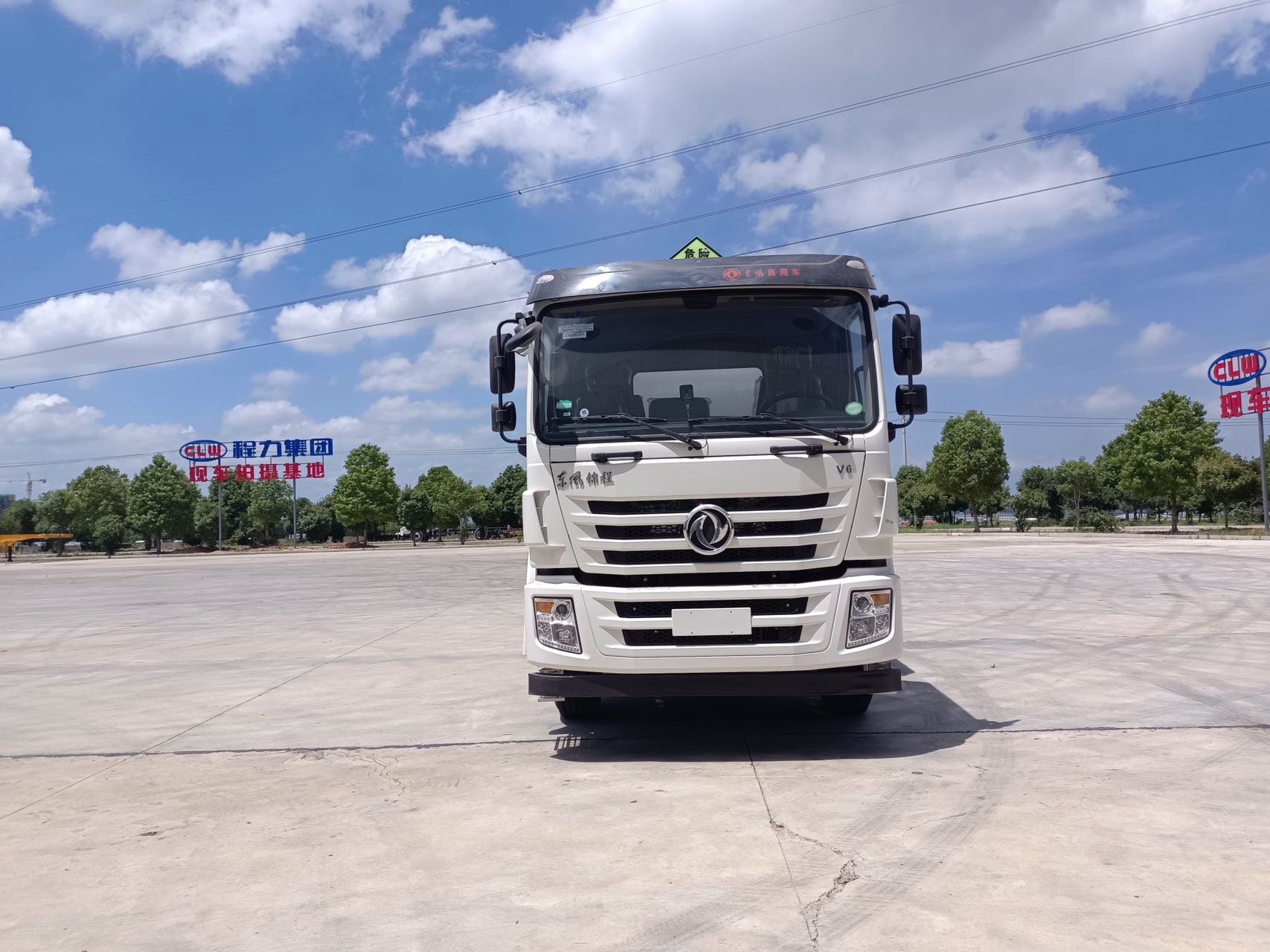

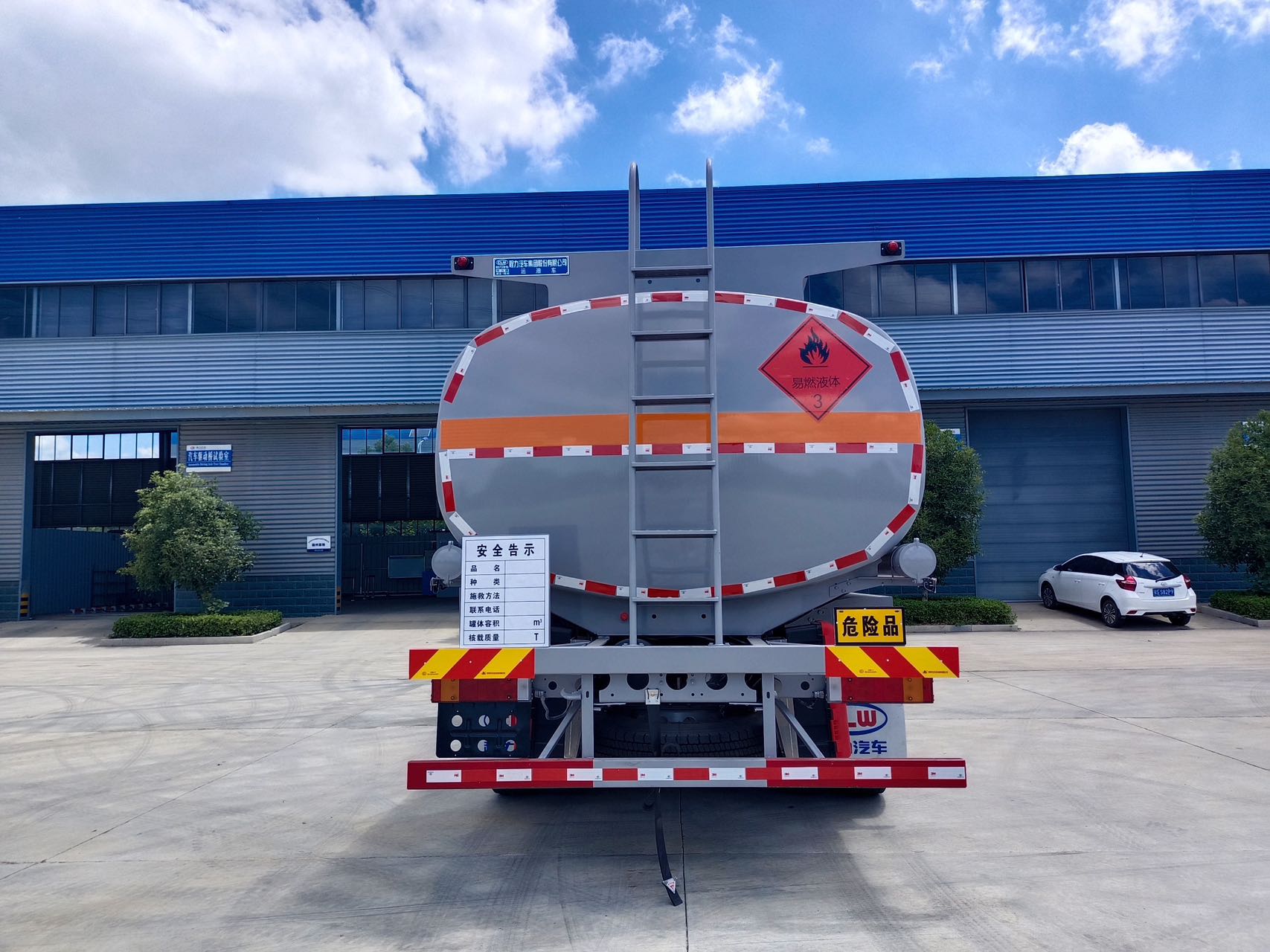

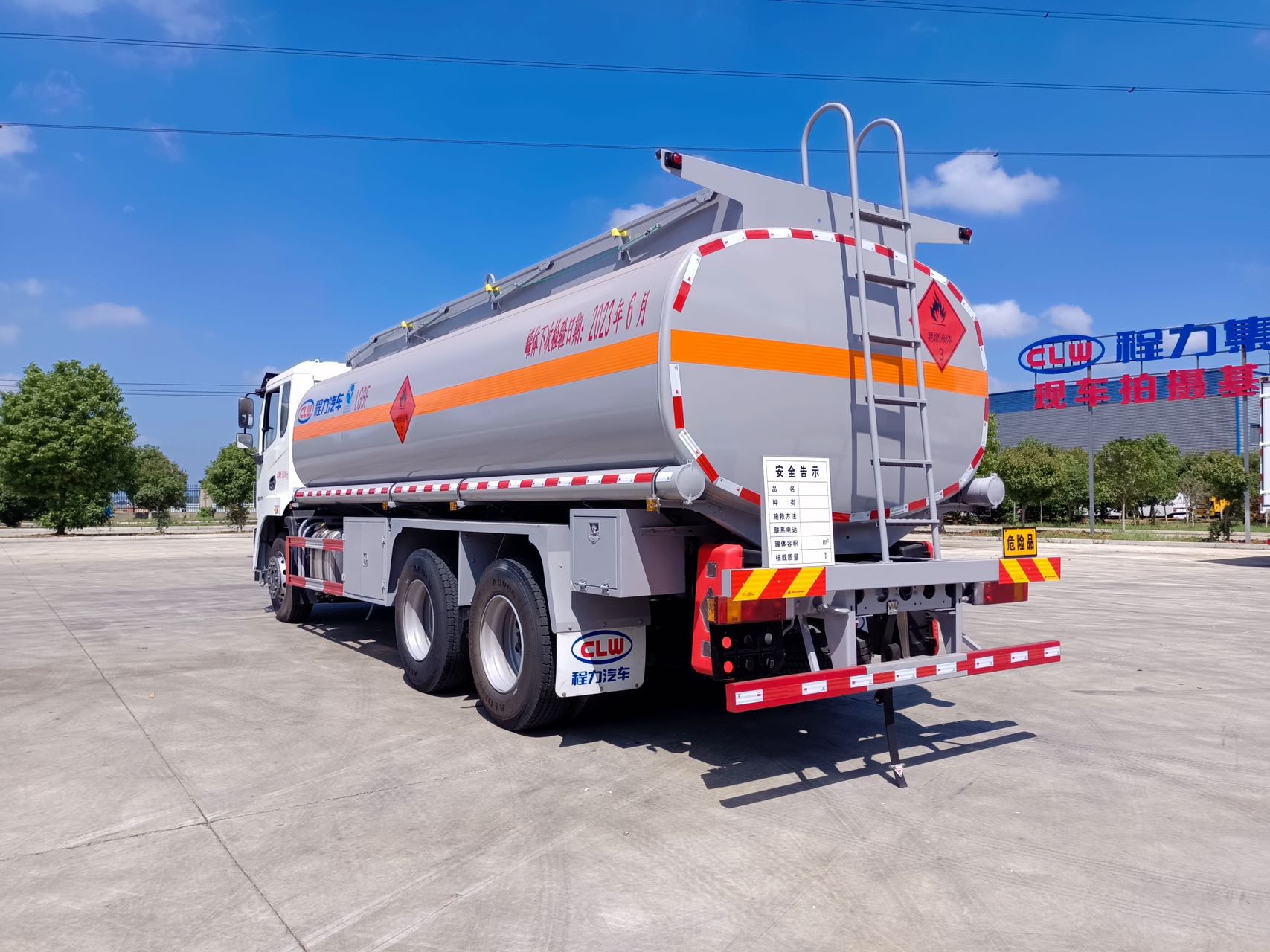

1. Pictures of the Dongfeng 21m3 fuel truck
2. Parameters of the Dongfeng 21m3 fuel truck
| model | CL5260GYY6BWG | brand | CLW |
| outer dimensions | 9600*2550*3500mm | GVW | 26000kg |
| rated loading capacity | 14500kg | curb weight | 11305kg |
| axle loading capacity | 7000/19000kg | front/rear suspension | 1475/2425mm |
| passengers | 2/3 | max speed | 80km/h |
| approach/departure angle | 29/11° | fuel consumption | 31.2 |
3. Parameters of the Dongfeng 21m3 fuel truck chassis
| model | EQ1260GSZ6DJ | brand | Dongfeng |
| axle number | 3 | tyre number | 10 |
| wheelbase | 4350+1350mm | tyre size | 295/80R22.5 18PR |
| front/rear gauge | 1960/1860mm | leaf spring number | 3/- |
| fuel type | diesel | emission standard | GB17691-2018 EURO 6 |
| engine | YCS06300-61 | power | 270hp |
| displacement | 6442ml |
4. The Dongfeng 21m3 fuel truck body configurations:
Effective volume of tank: 21.7 square, Q235 material, tank body 5mm, head 5.5mm, partition 5mm, single bin, tank top two Jialong European standard tank mouth, 1 new regulation voice alarm subsea valve, single bin with a set of Jialong lower oil (oil discharge valve, oil and steam recovery, anti-overflow detector rod, anti-static coil), With Shandong Shenwei 80-60 special oil pump (can be pumped in and out) , rear climbing ladder, with manual guardrail, toolbox, rear bumper, side guardrail for carbon steel one-time molding.
