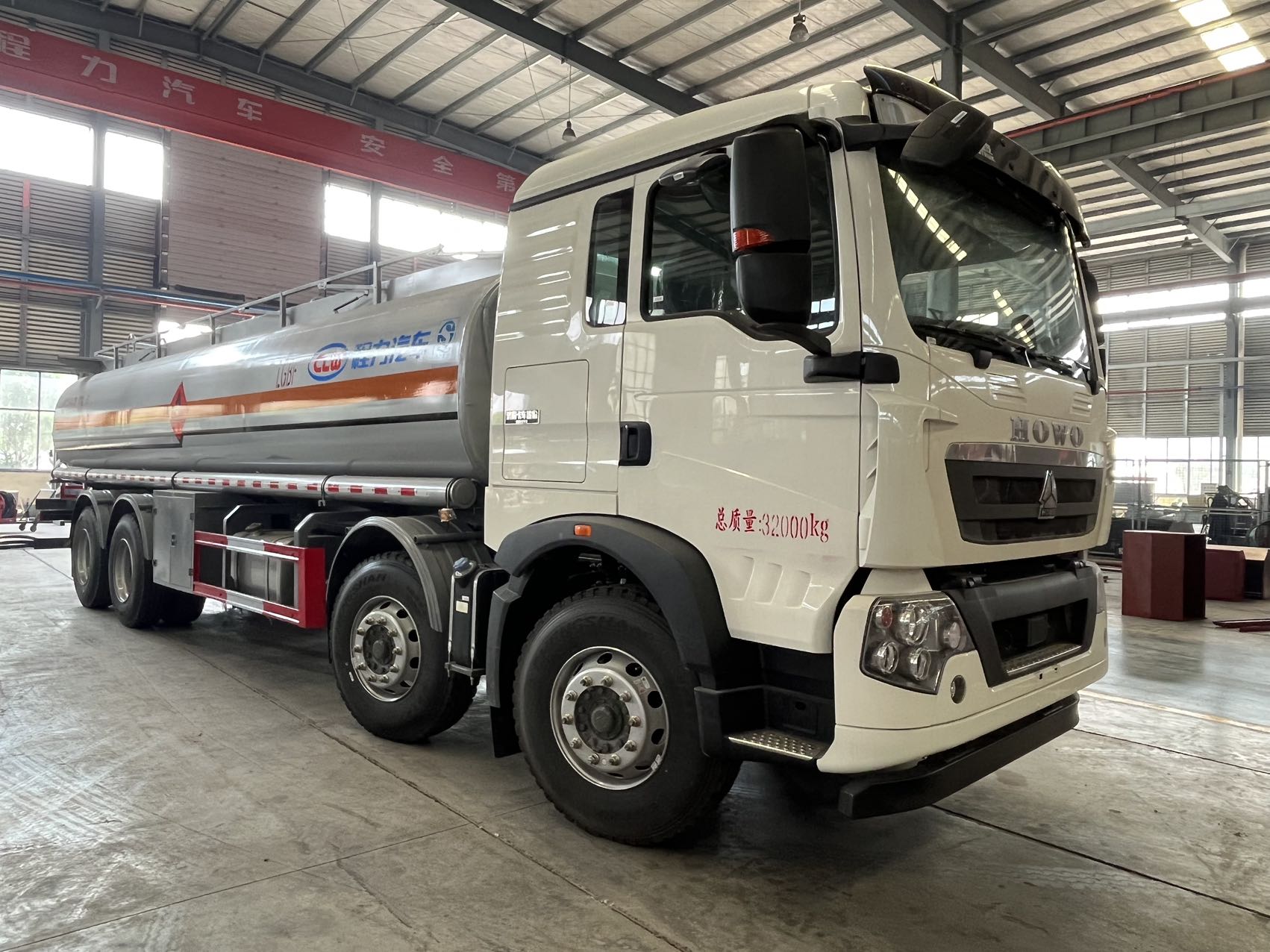

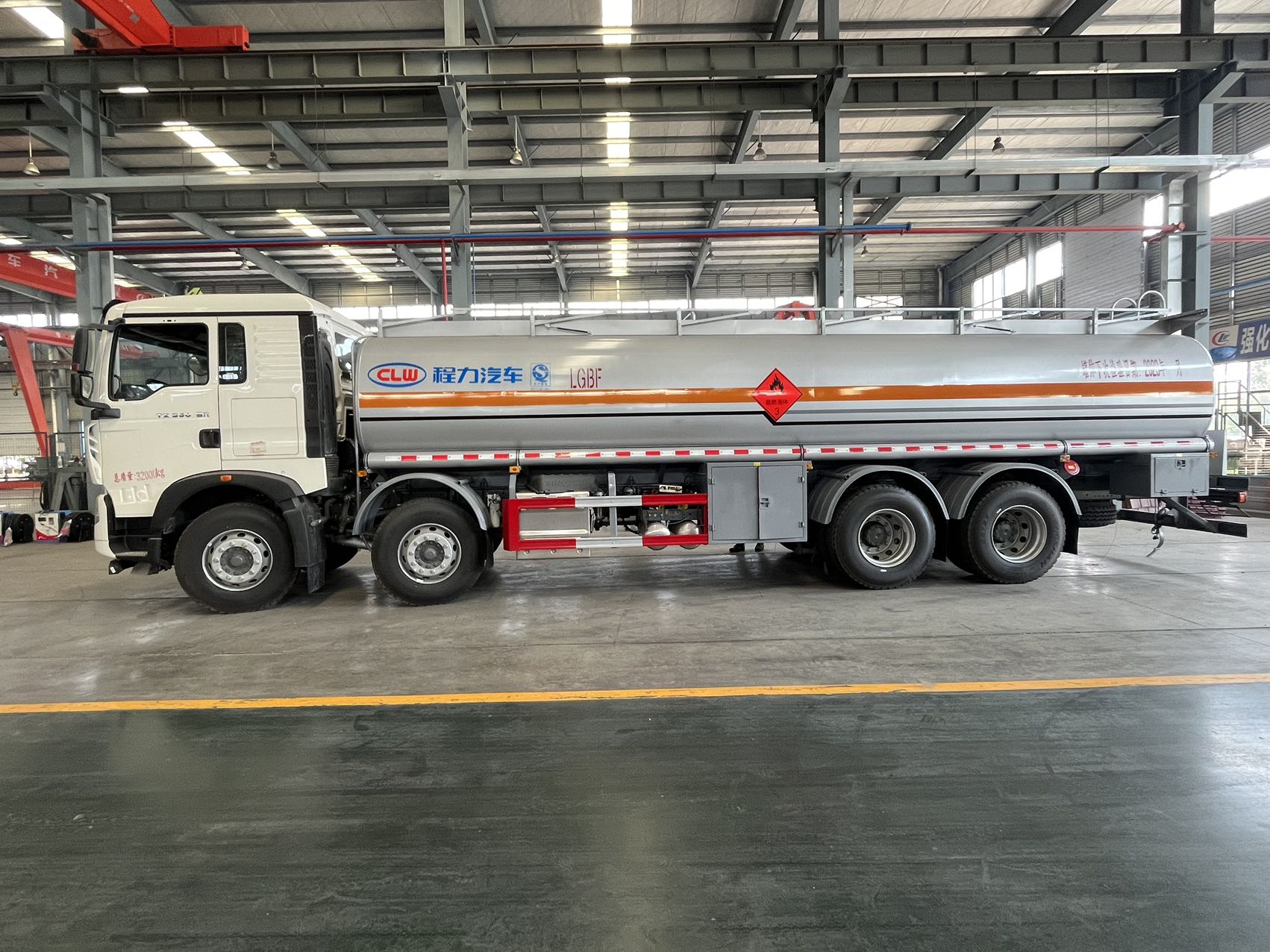

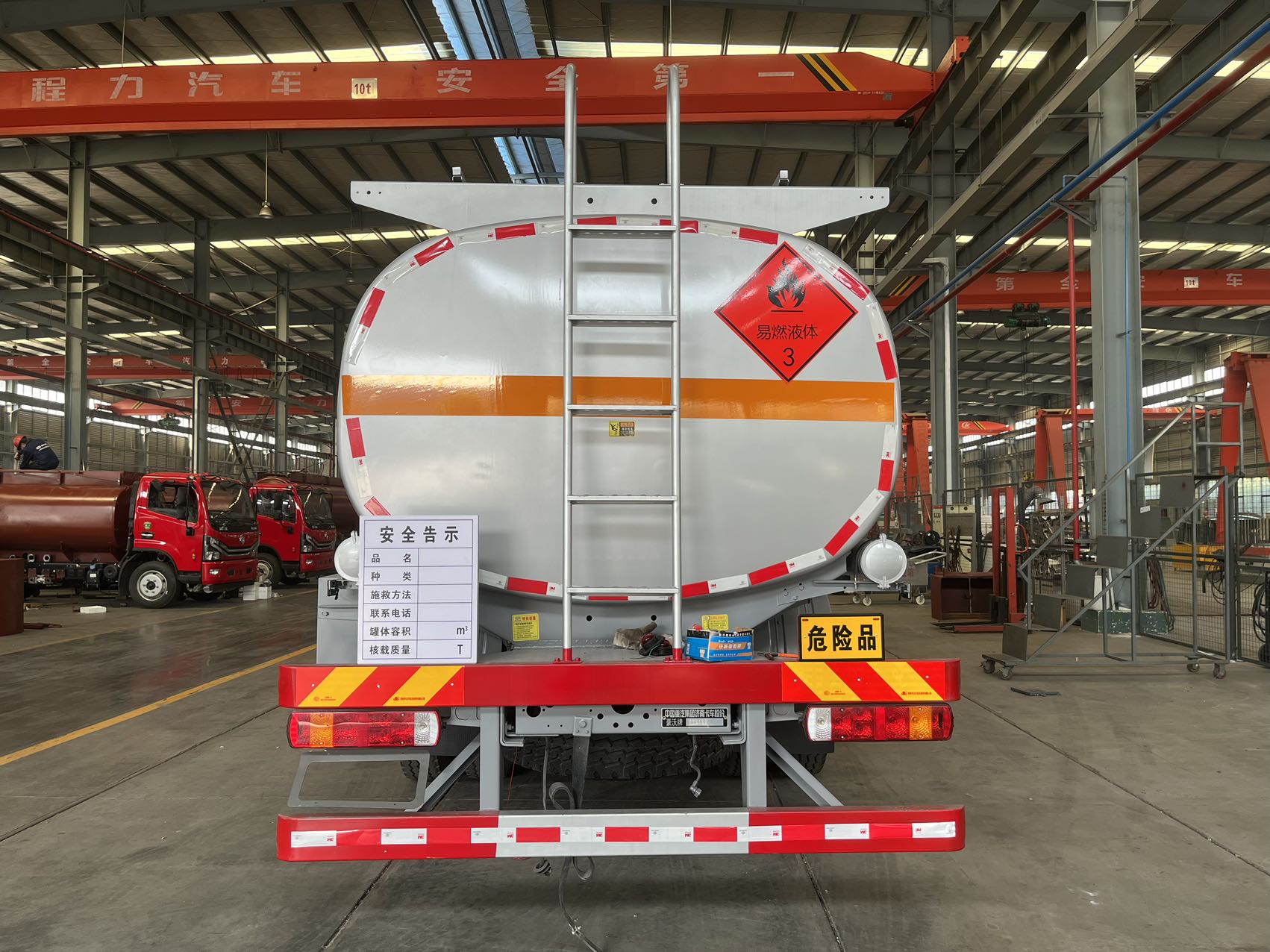

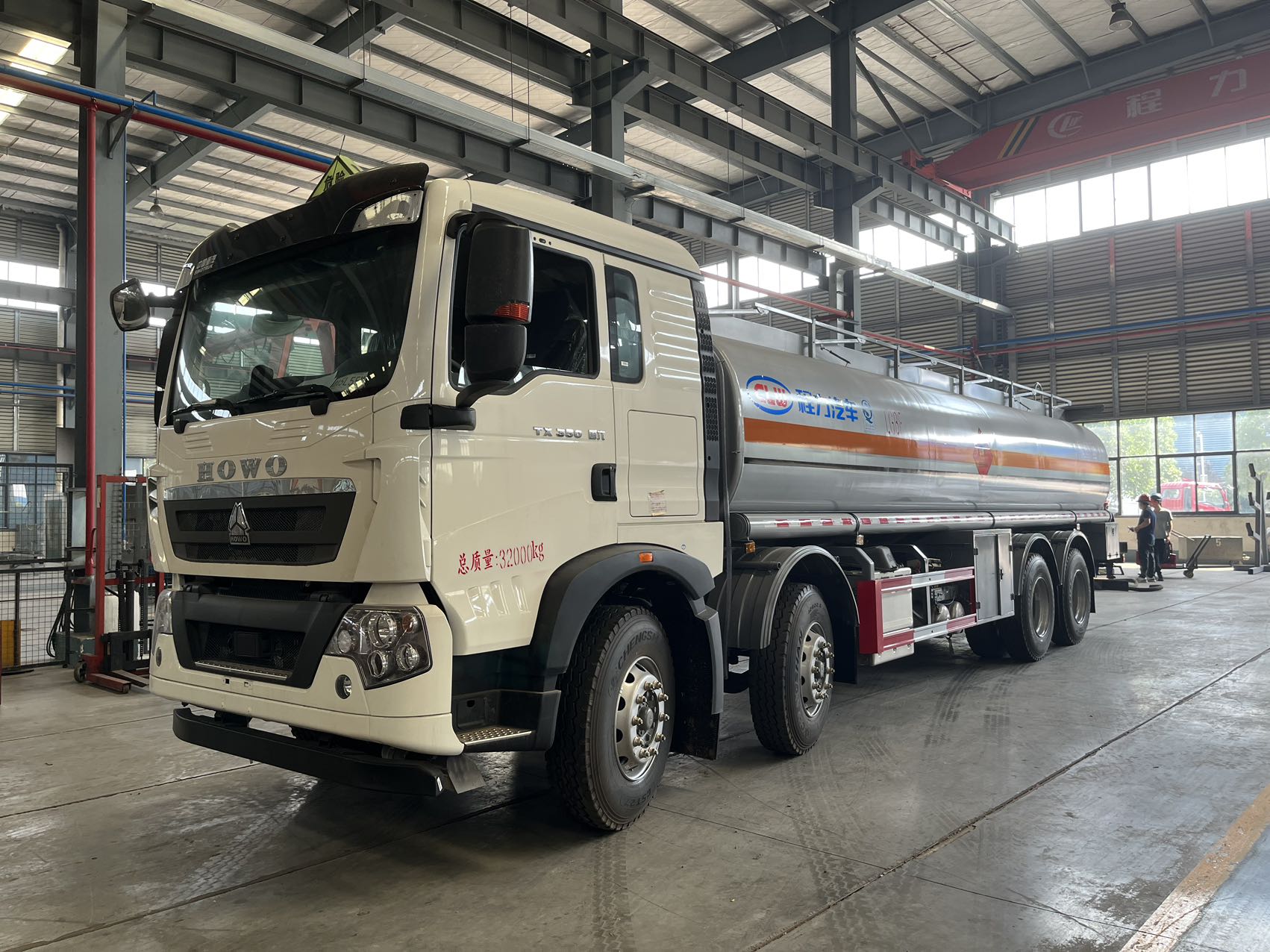

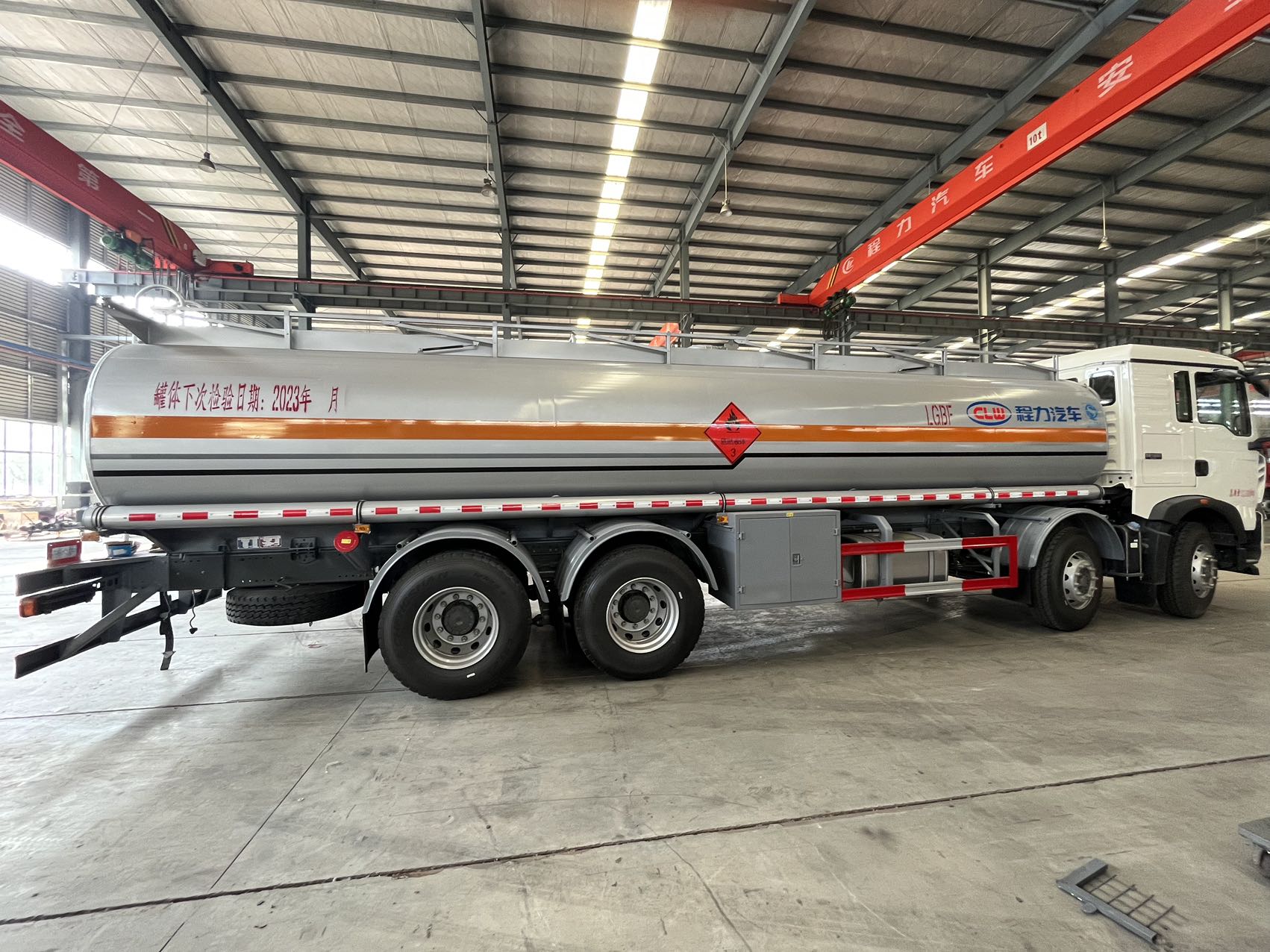

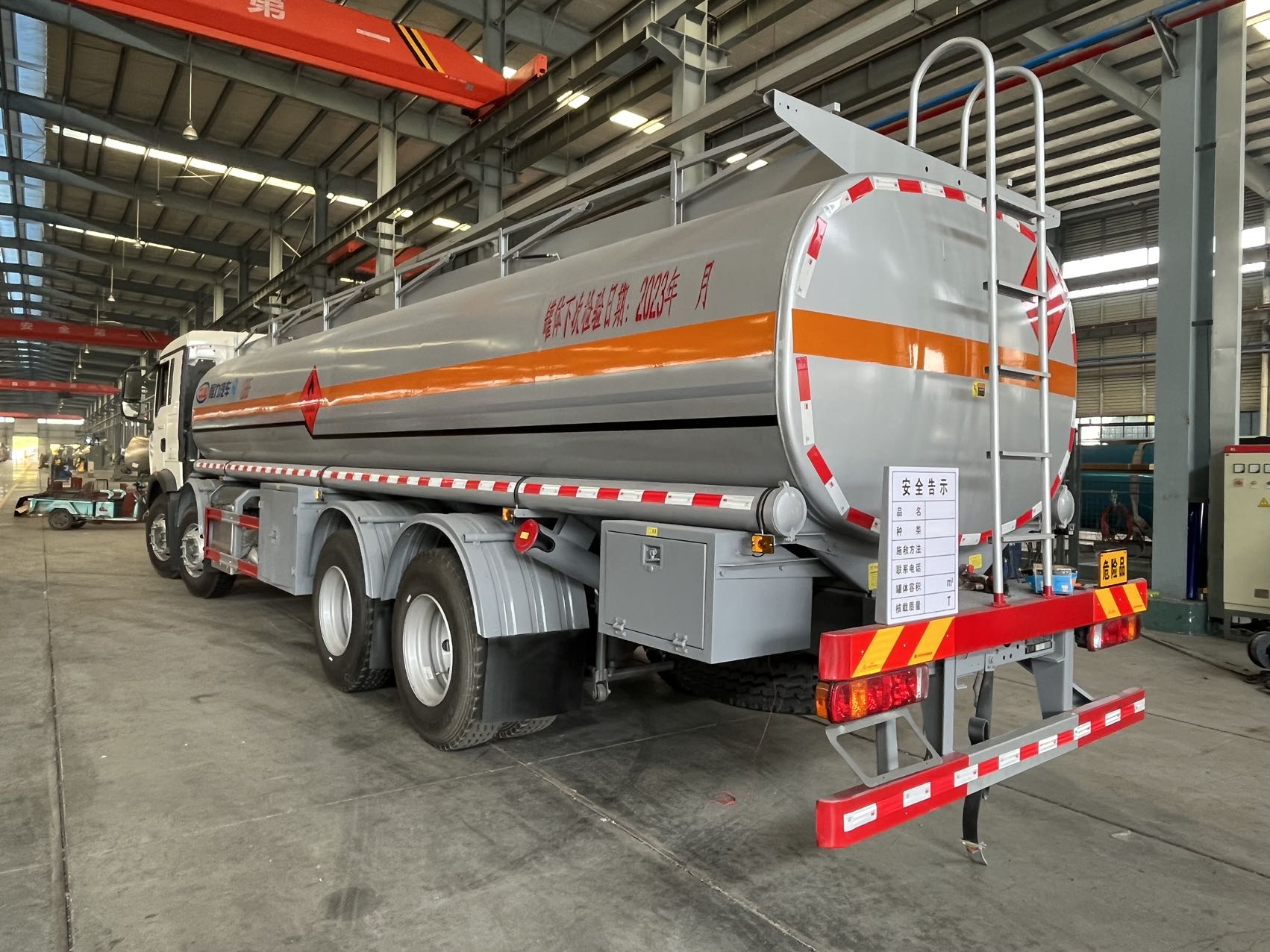

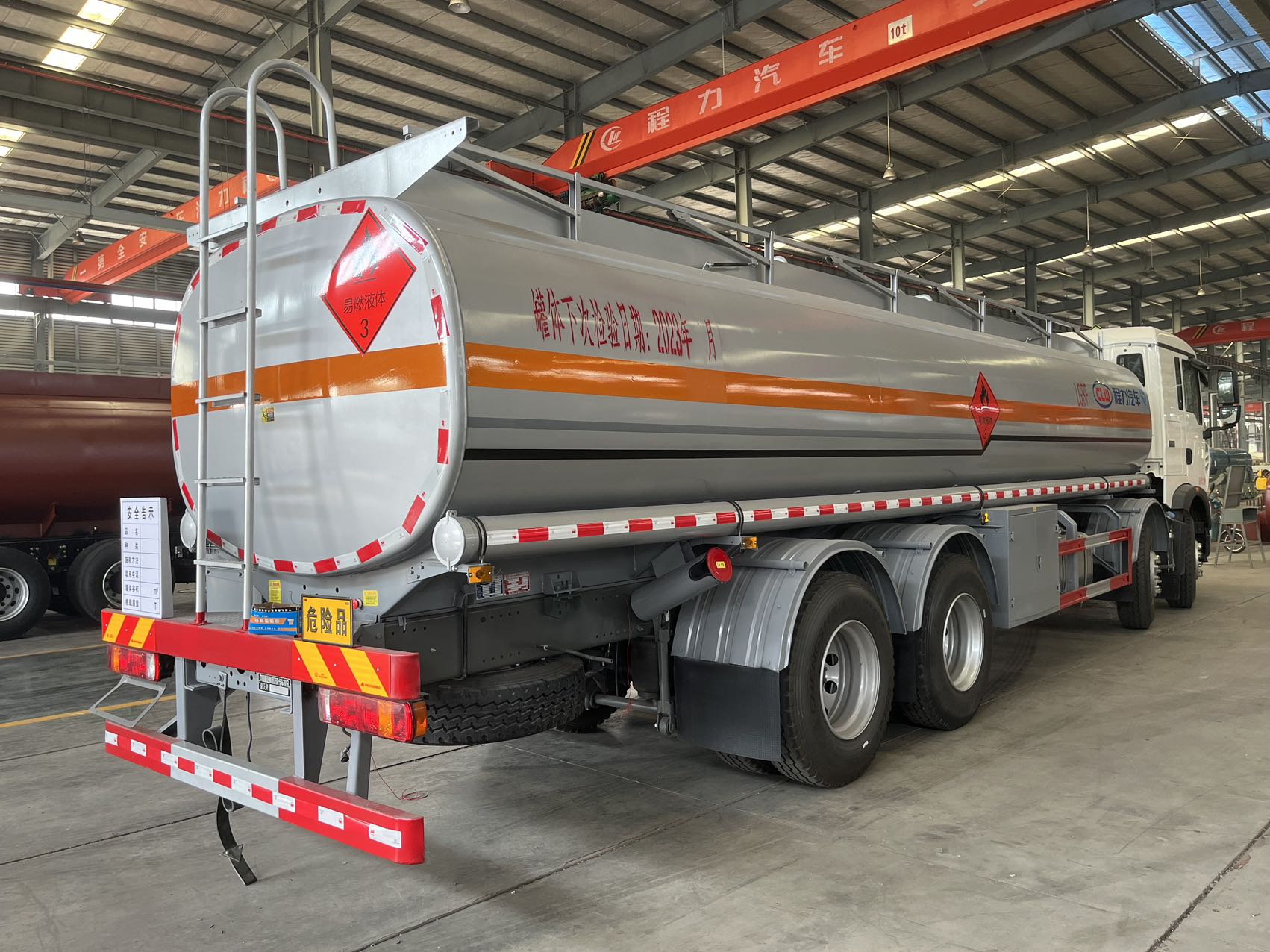

1. Pictures of the HOWO 30m3 fuel truck

2. The HOWO 30m3 fuel truck chassis details:

Howo; V7; Basic model; Special vehicles; Sprinkle water; HW76 New front cab; Electric air conditioning; Through typical rearview mirror (manual); English instrument; D10.38-50 engine; Intelligent communication (satellite positioning terminal); Front and rear stabilizer bar; Cab manual lifting; HW19712 transmission +HW70 flanged force extractor; Main seat (airbag seat); VGD95 front axle (drum); MCX16ZG double bridge (drum); Double deck frame (8+8/300); Front and rear reinforced multi-blade spring (11/11/12); 8118 direction machine; Road version; Standard exhaust system; ABS(4S/4M); Low bumper (non-metal); 12.00R20 18PR(Reinforced steel ring/mixed pattern); 400L fuel tank; Mechanical door lock; Knob PTO; Rear traction hook; 5.451; Front and rear coil spring cab suspension; MP3;

3. The HOWO 30m3 fuel truck body details:

Effective volume of fuel tank: 30m3 carbon steel Q235, tank body thickness 5mm, sealing head thickness 6mm, partition board thickness 4.2mm, single bin;

The fuel tank truck top has two European standard manhole, 1 submarine valve, 1 set of lower oil charging system (oil discharge valve, oil and steam recovery, anti-overflow detector rod, anti-static coil), With Shandong Shenwei 80-60 special oil pump (can be pumped in and out). with rear climbing ladder, with manual guardrail, toolbox, rear bumper, side guardrail.

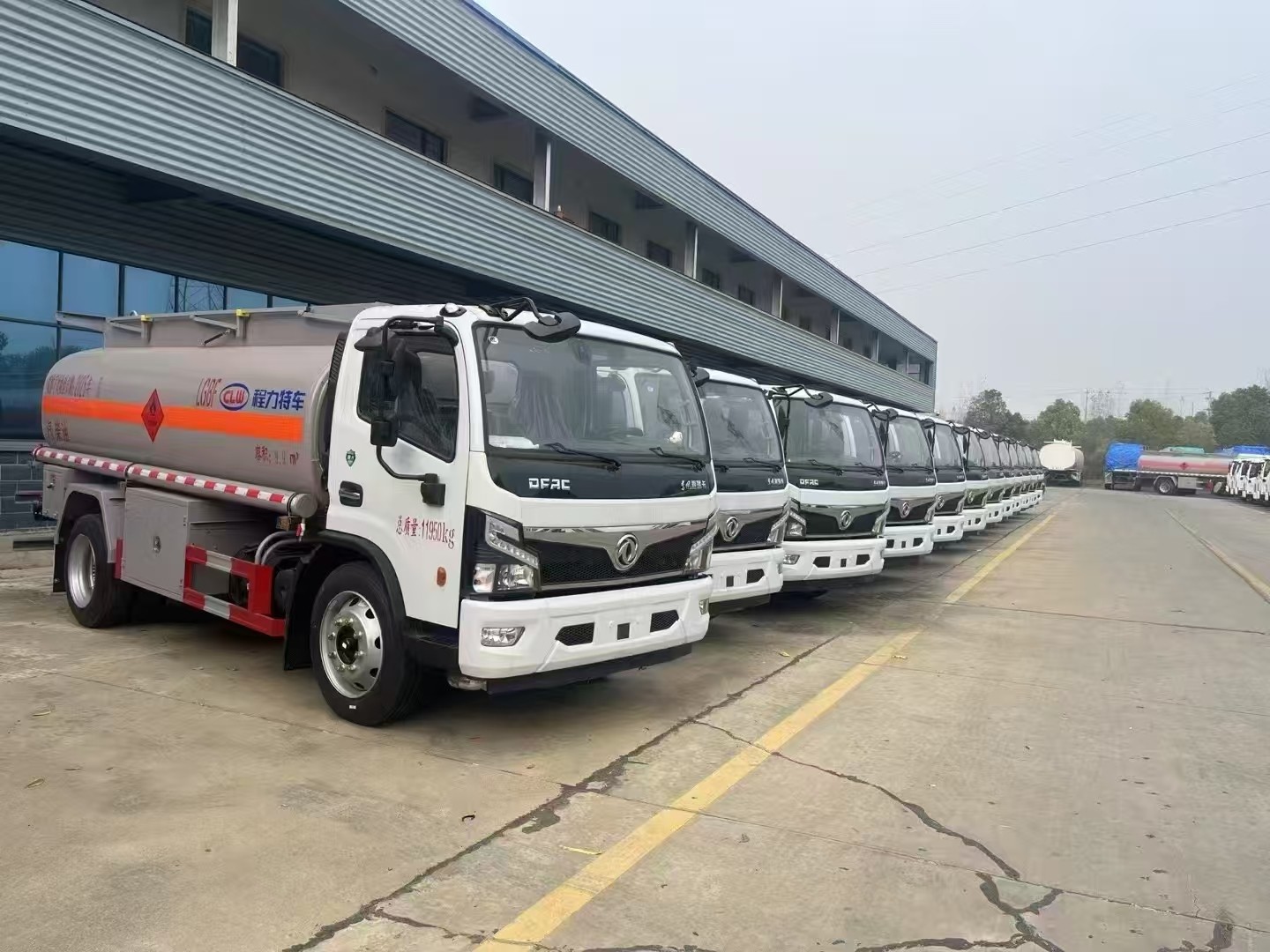

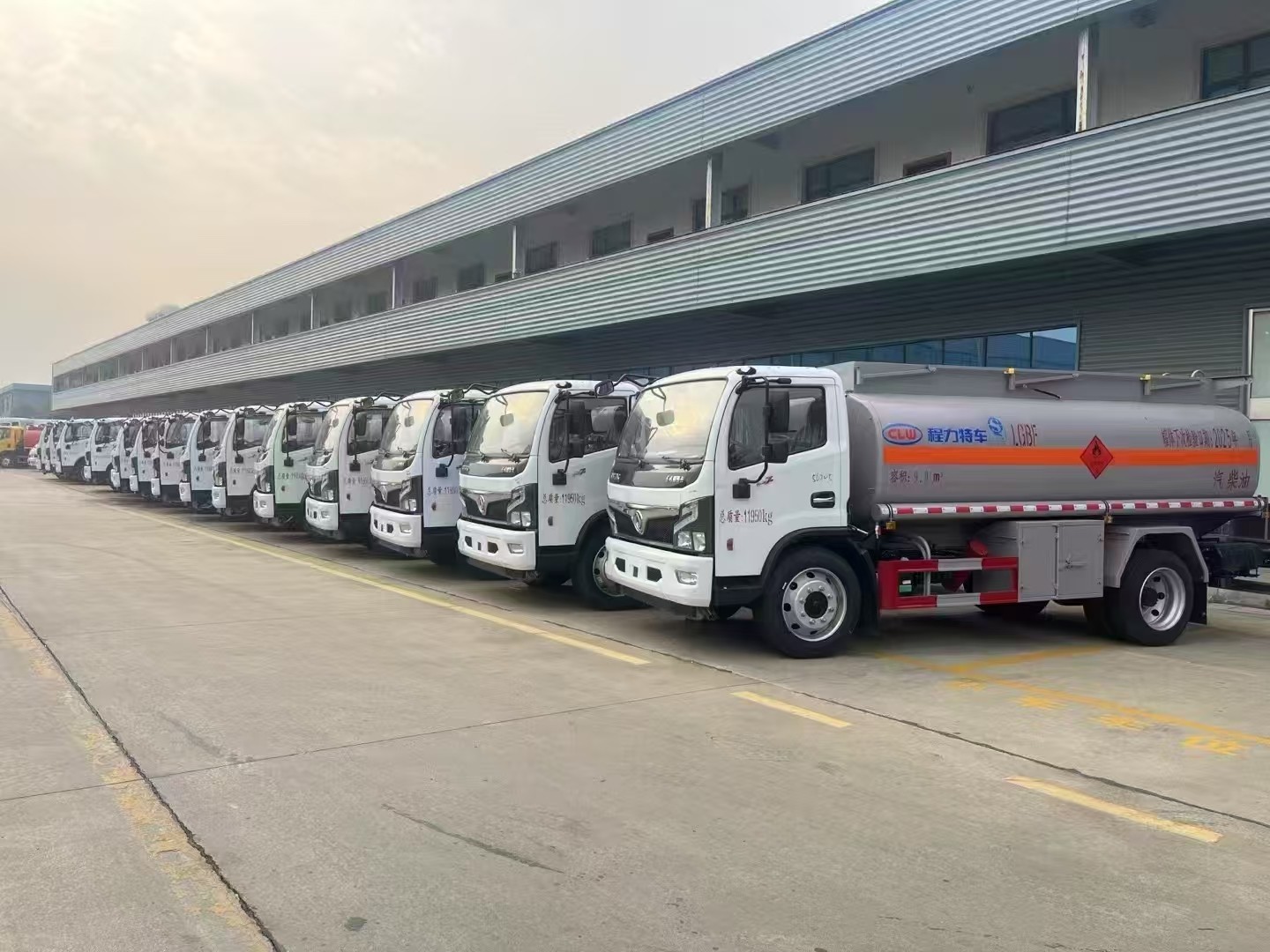

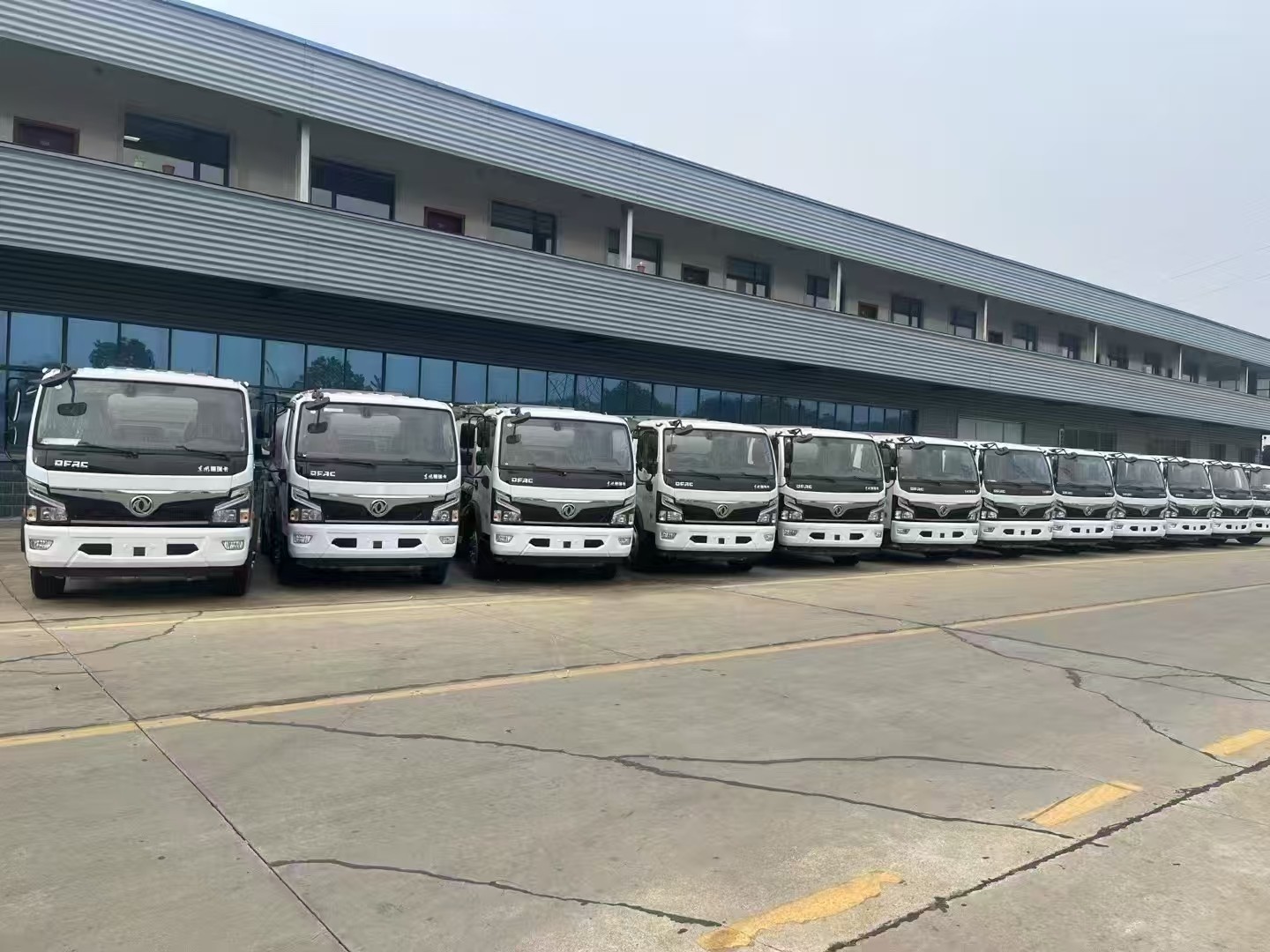

4. Batch delivery pictures of the fuel truck
