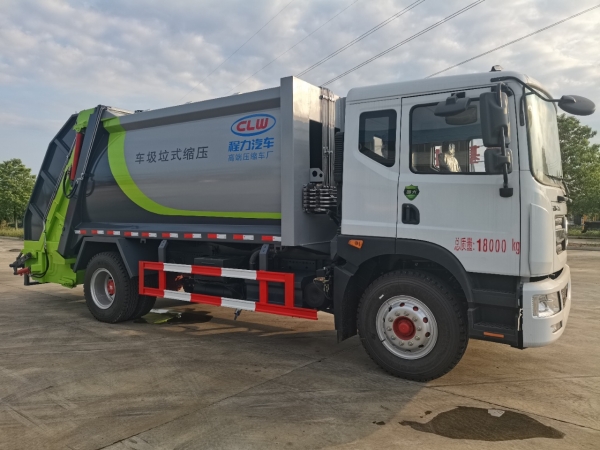

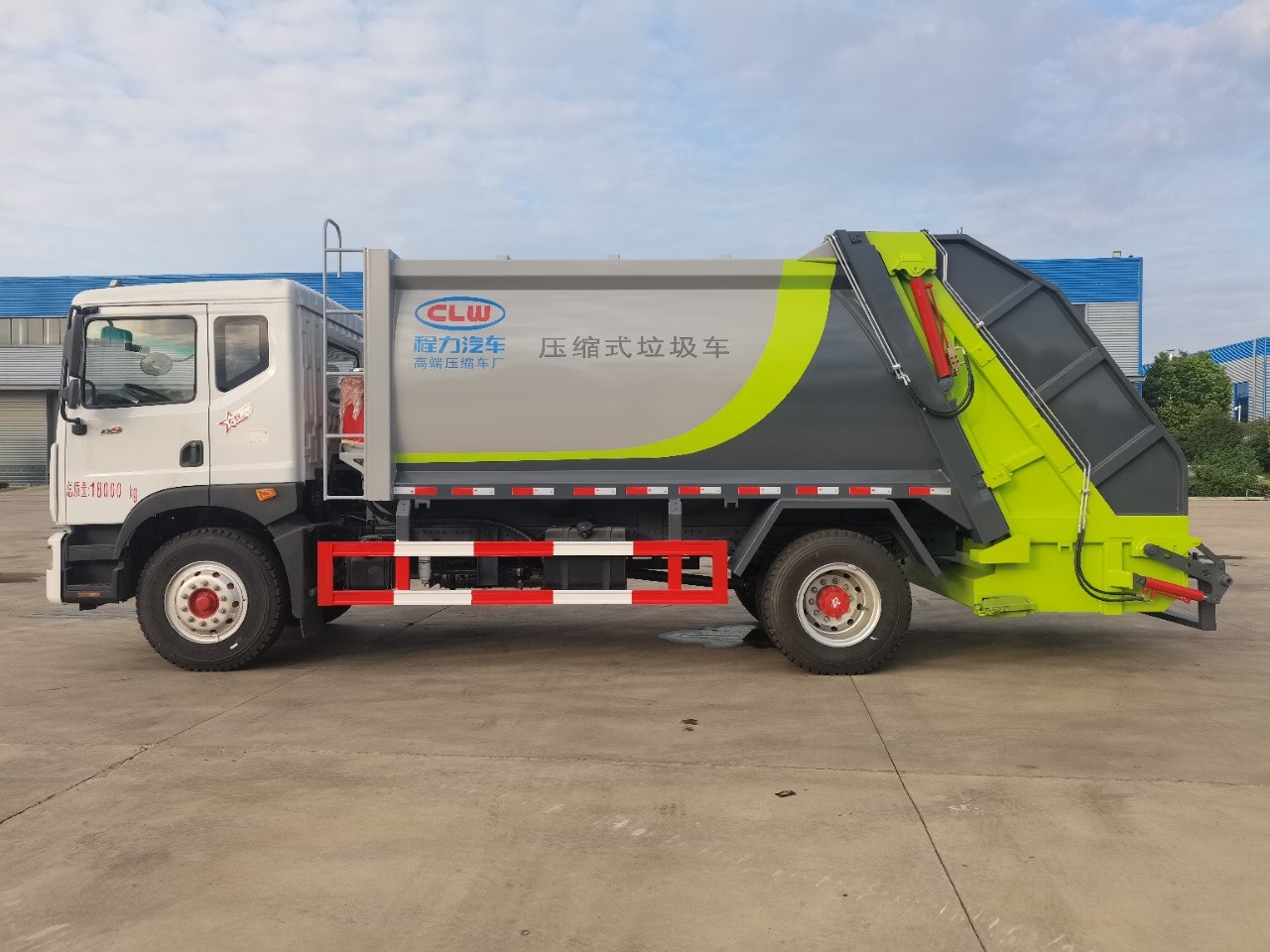

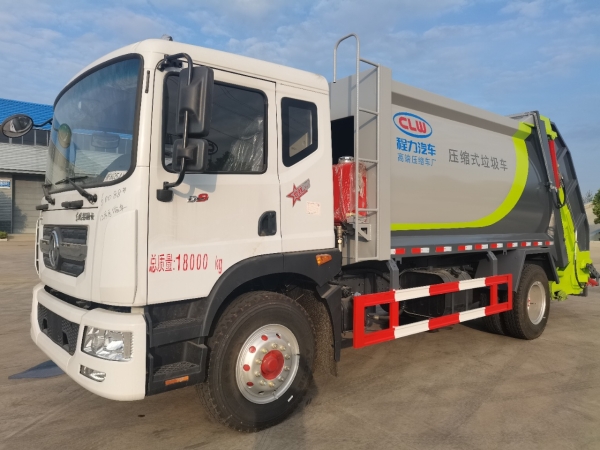

1.Pictures of the Dongfeng Doric 14m3 garbage compactor truck

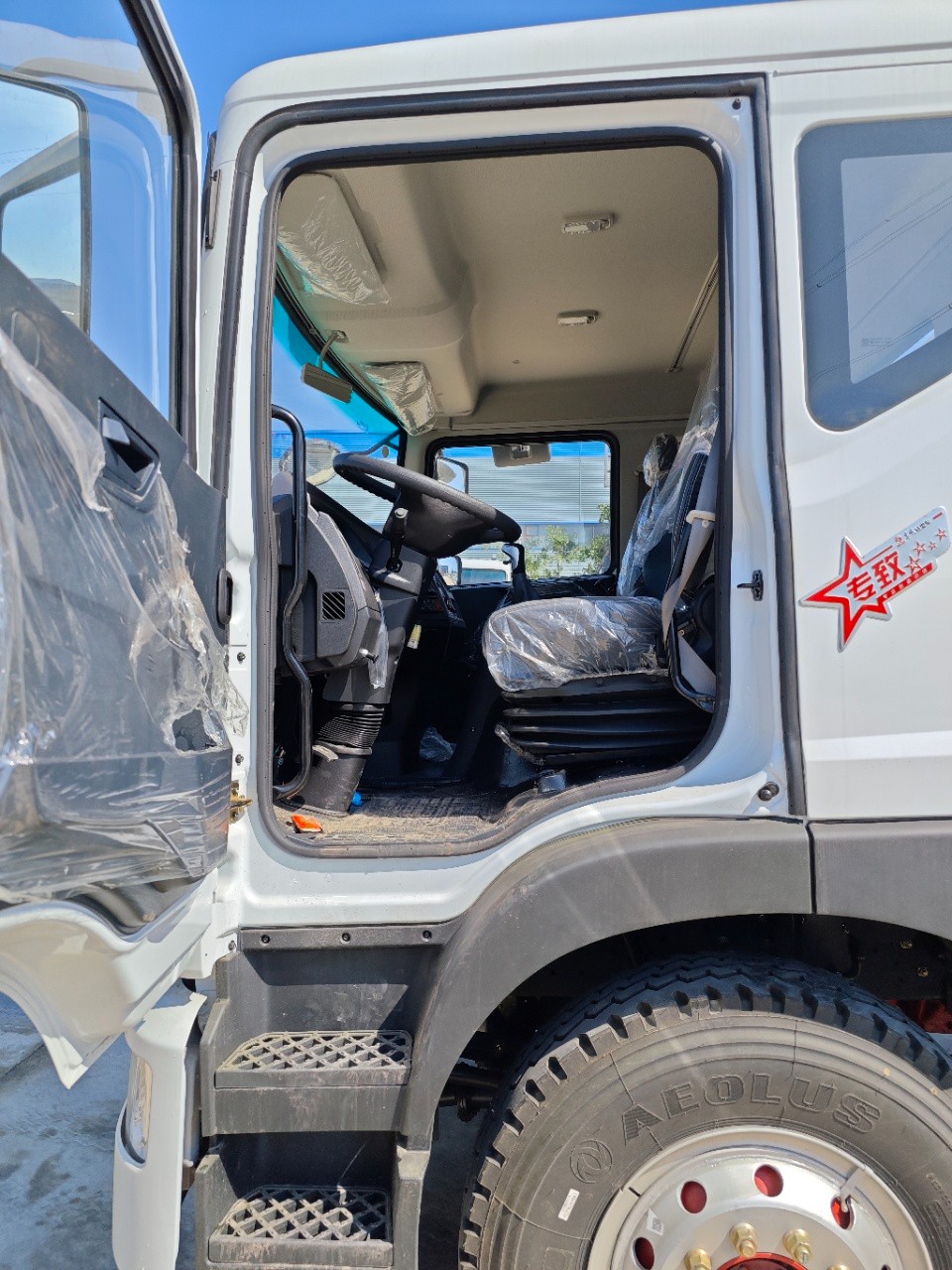

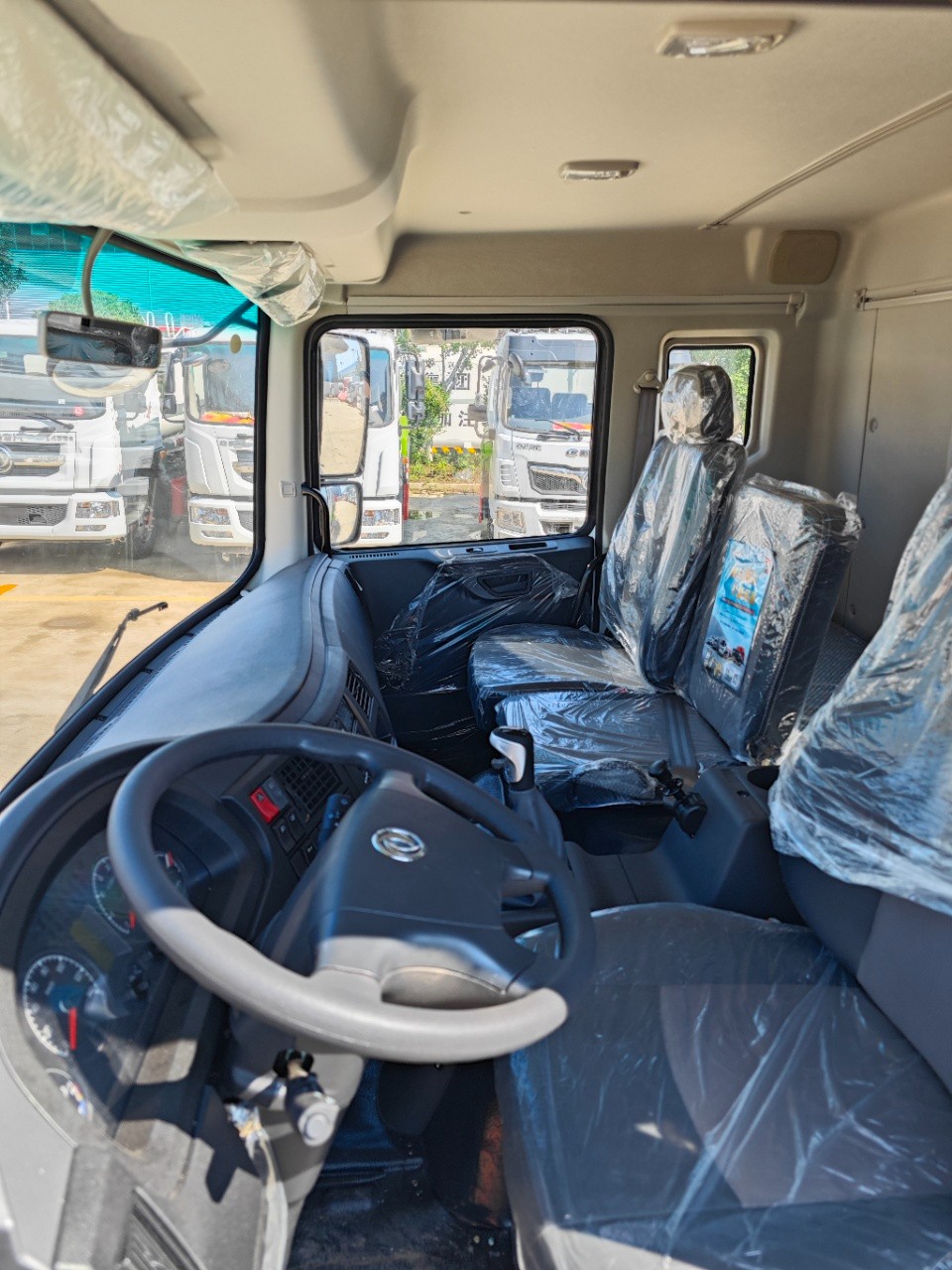

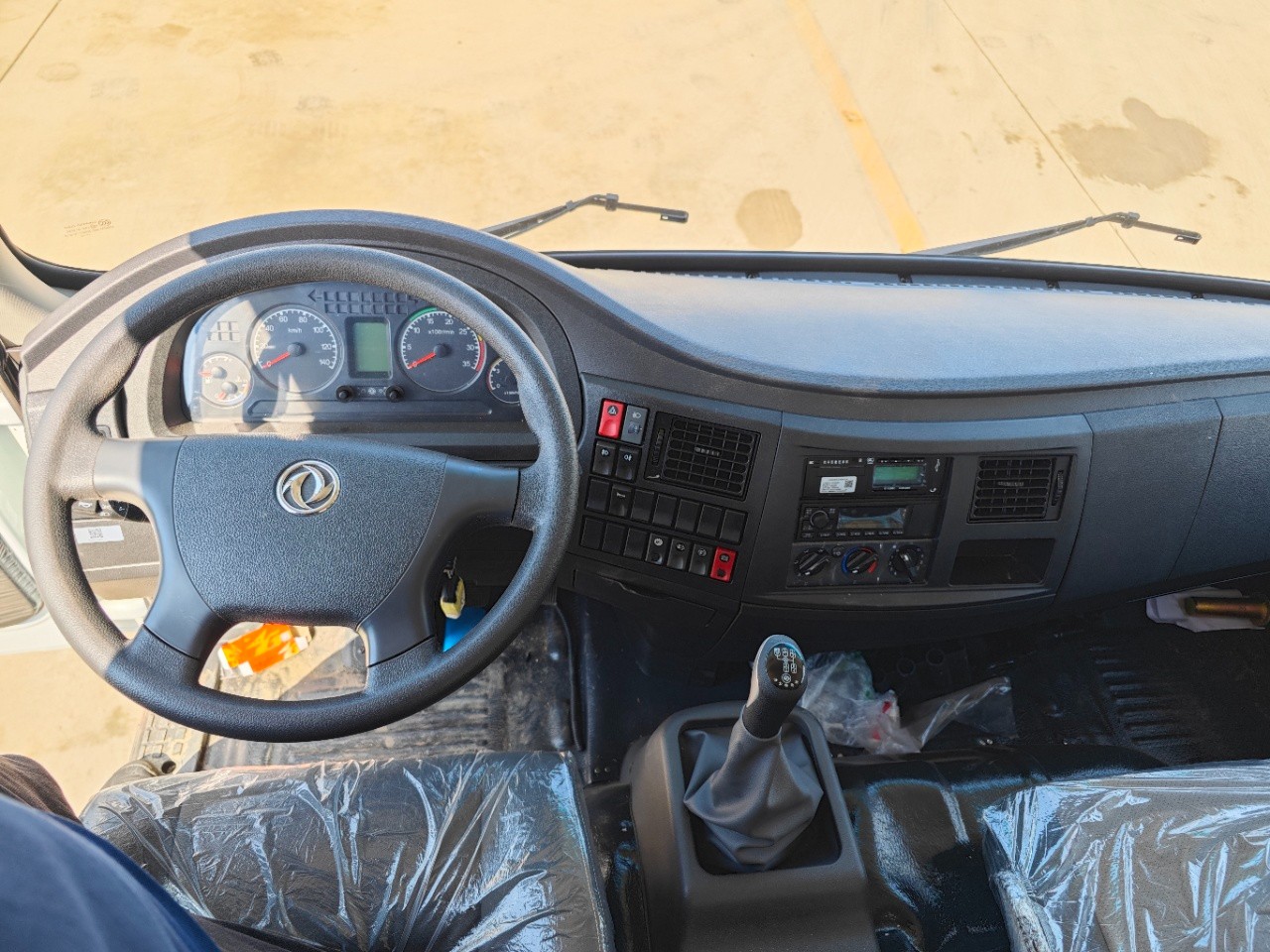

2. The Dongfeng Doric 14m3 garbage compactor truck adopts Dongfeng brand chassis, Cummins 230hp engine, 4500mm wheelbase, Fast 8-gears transmission box (high and low), dashcam, electric doors and windows, original air conditioning, airbag seats, central control lock, ABS, directional power assist, air brake, 10.00R20 steel tires, 4.5T front axle, 10t rear axle. More details of the chassis pls check the following pictures:

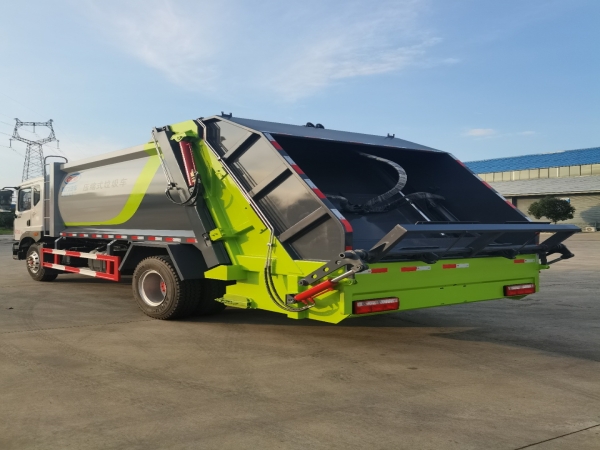

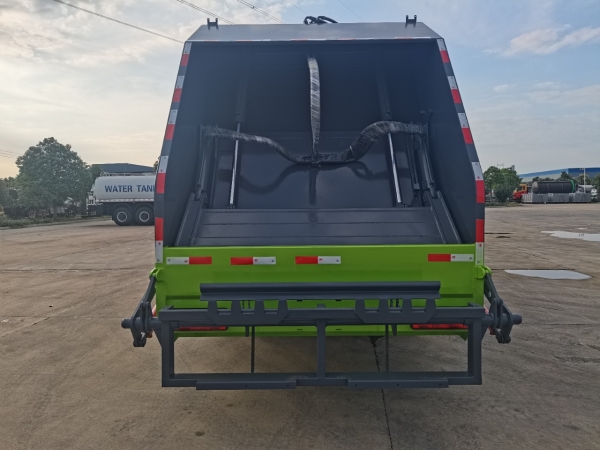

3. The Dongfeng Doric 14m3 garbage compactor truck body details:

The volume of the body is 14m3 which can hold 255pcs of 240L plastic bucket garbage, the whole truck uses T700 high-strength wear-resistant plate, body side plate thickness 5mm, the bottom plate thickness is 6mm, the rear loader side plate thickness is 6mm, the bottom plate thickness is 8mm, skateboard, slide 10mm thick, box volume maximization, push and shovel oil cylinder quenching treatment, the use of 3 levels of production, so that the shovel occupies the minimum space, the box volume maximization, Push shovel cylinder tempering treatment, using 5 levels of production, so that the push shovel occupies minimum space, maximize the box volume, garbage loading more! Garbage loading more! Electric hydraulic configuration: Zhejiang Jiasan repuller, Hefei Anhui liquid gear pump, Wessenbolle multi-way valve, balance valve, compression valve, stop valve, Liancheng hydraulic cylinder (all cylinders after tempering treatment, with buffer), Guangzhou Tianhe high pressure tubing (3 layers of steel wire), global steel pipe, hydraulic oil tank with 3 times of overstress net, all cylinder shaft pins after quenching treatment, increase hardness is not easy to bend and break, CAN survey bus intelligent screen one-button operating system, with wireless remote control, system programs can be set on the smart screen according to the user's use conditions, can set the automatic operation conversion time, throttle control size, with automatic fault detection, alarm prompt function.
