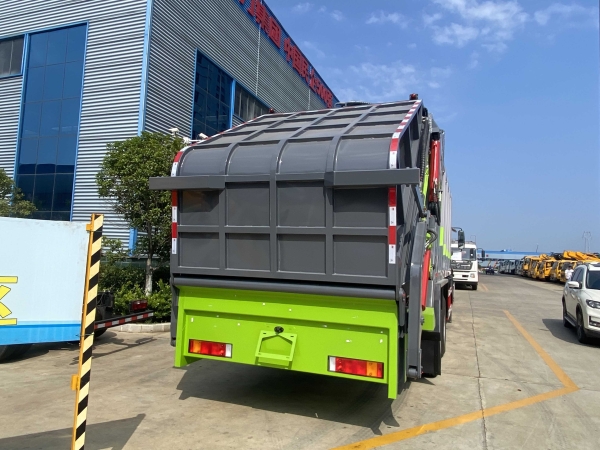

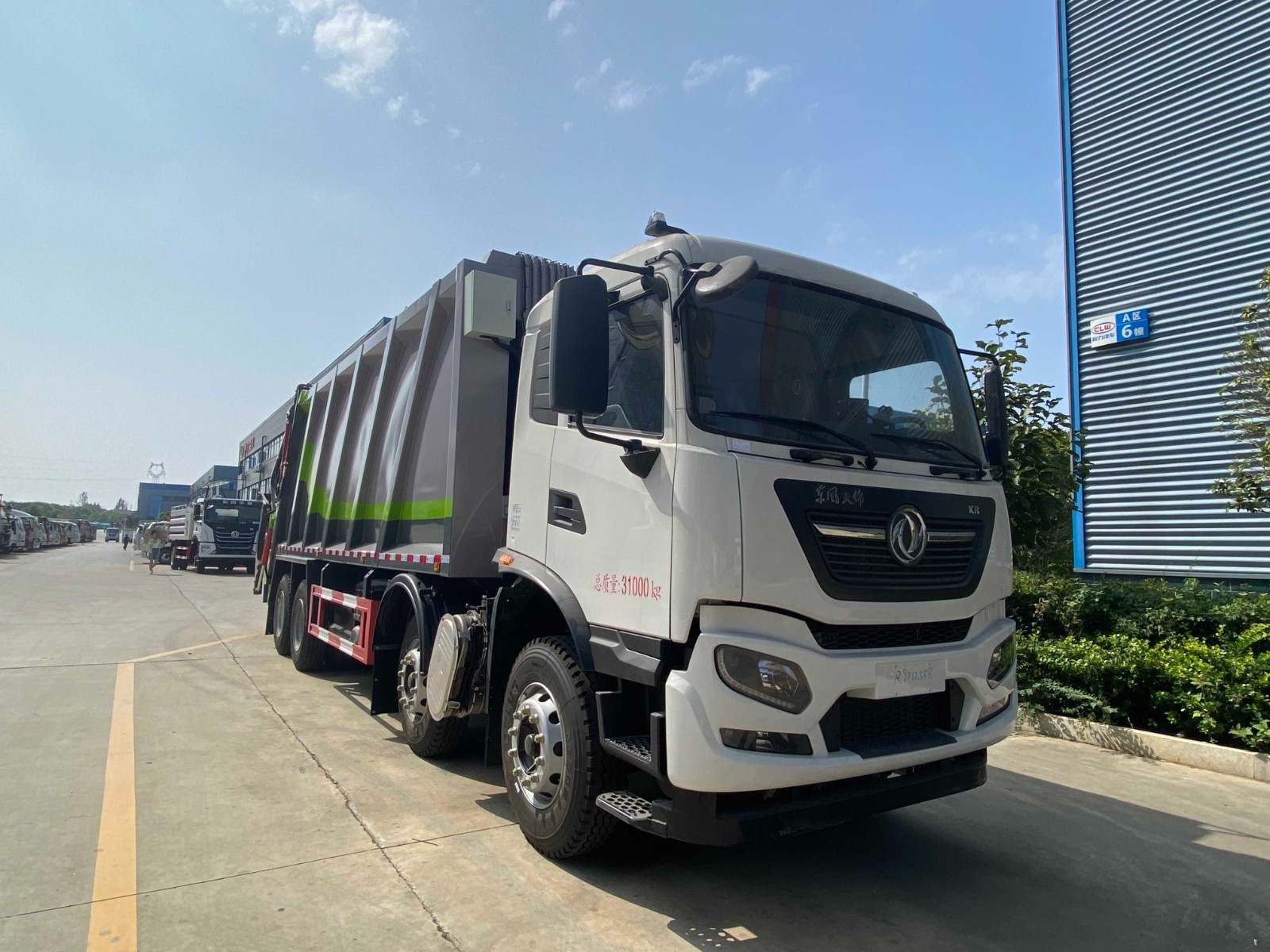

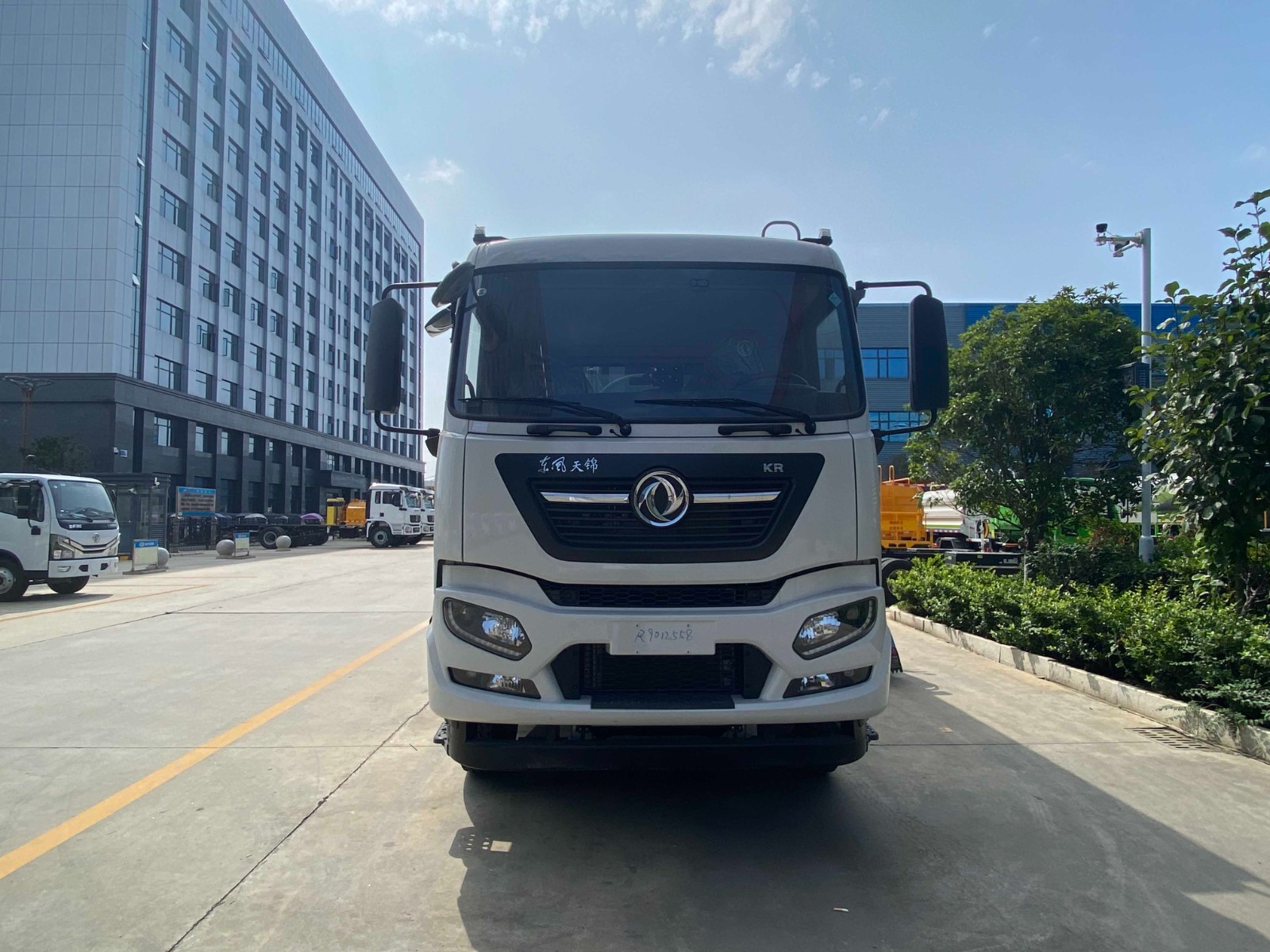

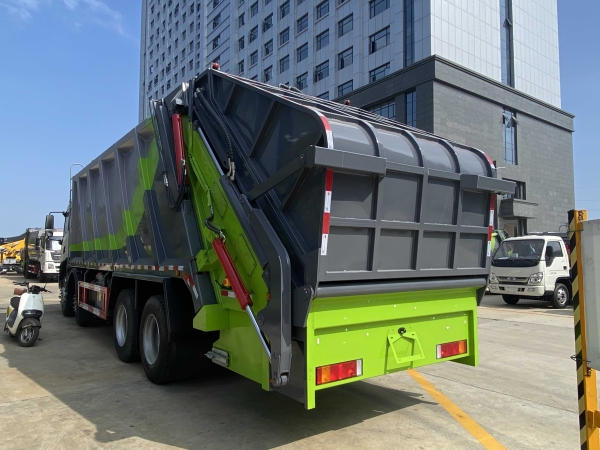

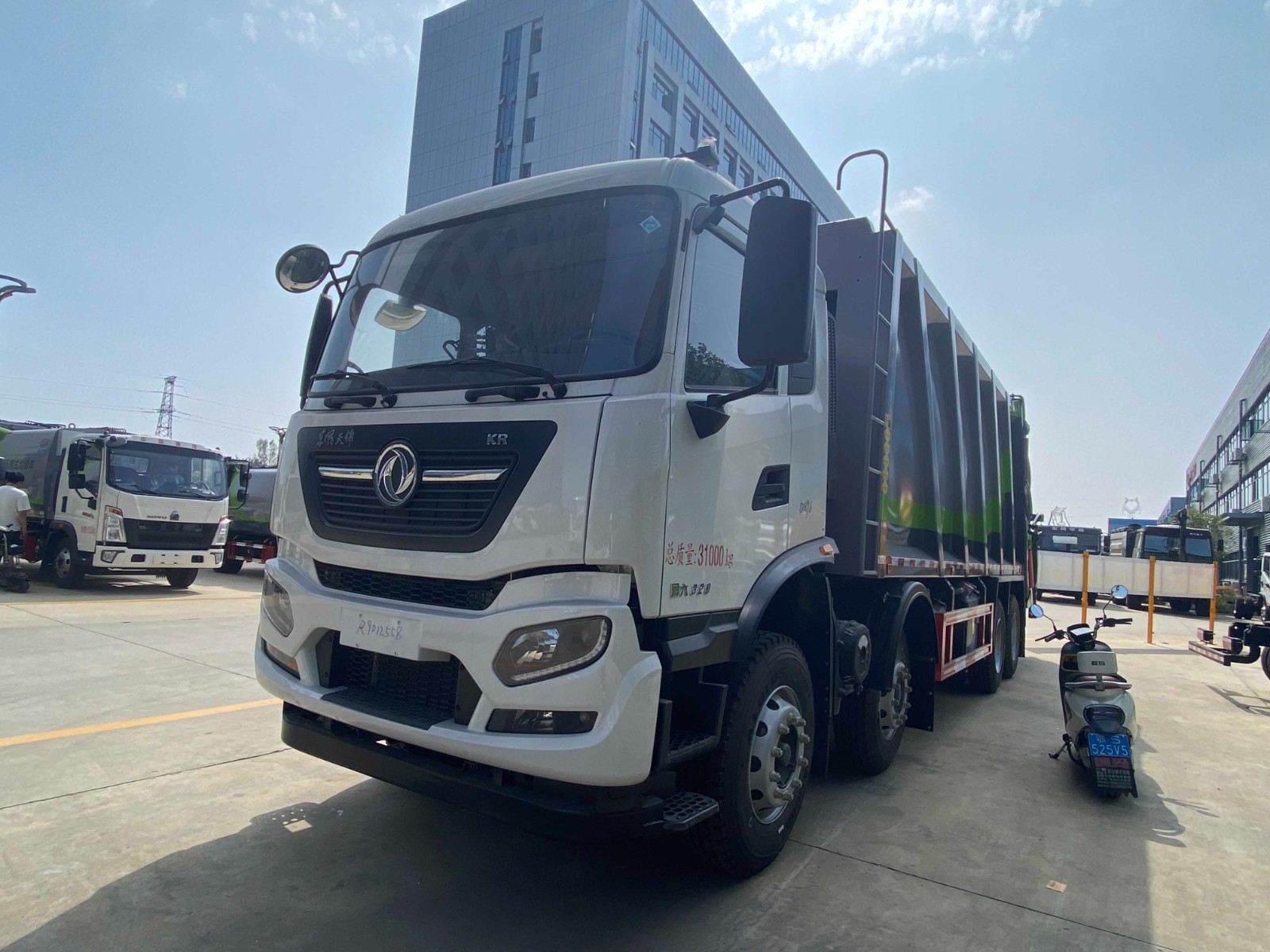

1. Pictures of the garbage compactor truck

2. The garbage compactor truck chassis information:

The garbage compactor truck adopts Dongfeng Tianjin flagship chassis, 1995+4000+1350 (mm) wheelbase, Kangji engine 320hp, front axle 4.5T×2/ rear axle 11T×2, 11R22.518PR tires, Shaanxi gear 10-speed transmission, Dongfeng original factory air conditioning, 280L aluminum alloy large fuel tank, remote control key, central control door lock, electric glass, air bag seat, Travel recorder.

3. The garbage compactor truck body information:

The net volume of the garbage compactor body is 36-40m3, the box is a curved box, the box around the frame reinforcement, strong bearing capacity, the whole car uses T700 high-strength wear-resistant plate, the box side 5 bottom 6 production, the filler side plate 6mm bottom 8mm thick, skateboard, slide 8mm thick, push and shovel cylinder conditioning treatment, the use of 5 levels of production, so that the shovel to minimize the space. Maximum box volume, more garbage loading! CAN bus smart screen operating system, with wireless remote control, the system program can be set on the smart screen according to the requirements of the user's use conditions, can set the automatic operation conversion time, throttle control size, with automatic fault detection, alarm prompt function, other standard.The gross vehicle weight of the garbage compactor truck  is 31000kg.
