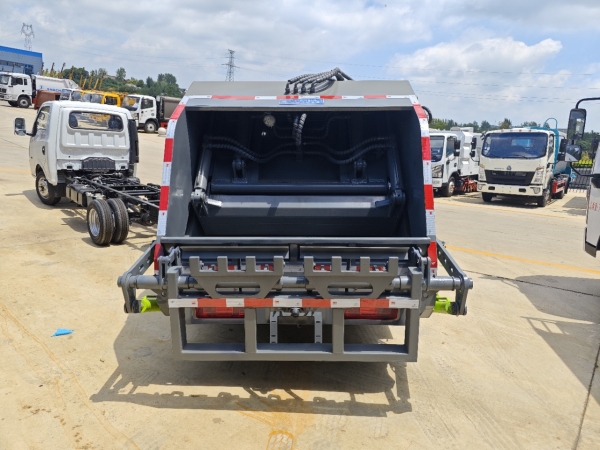

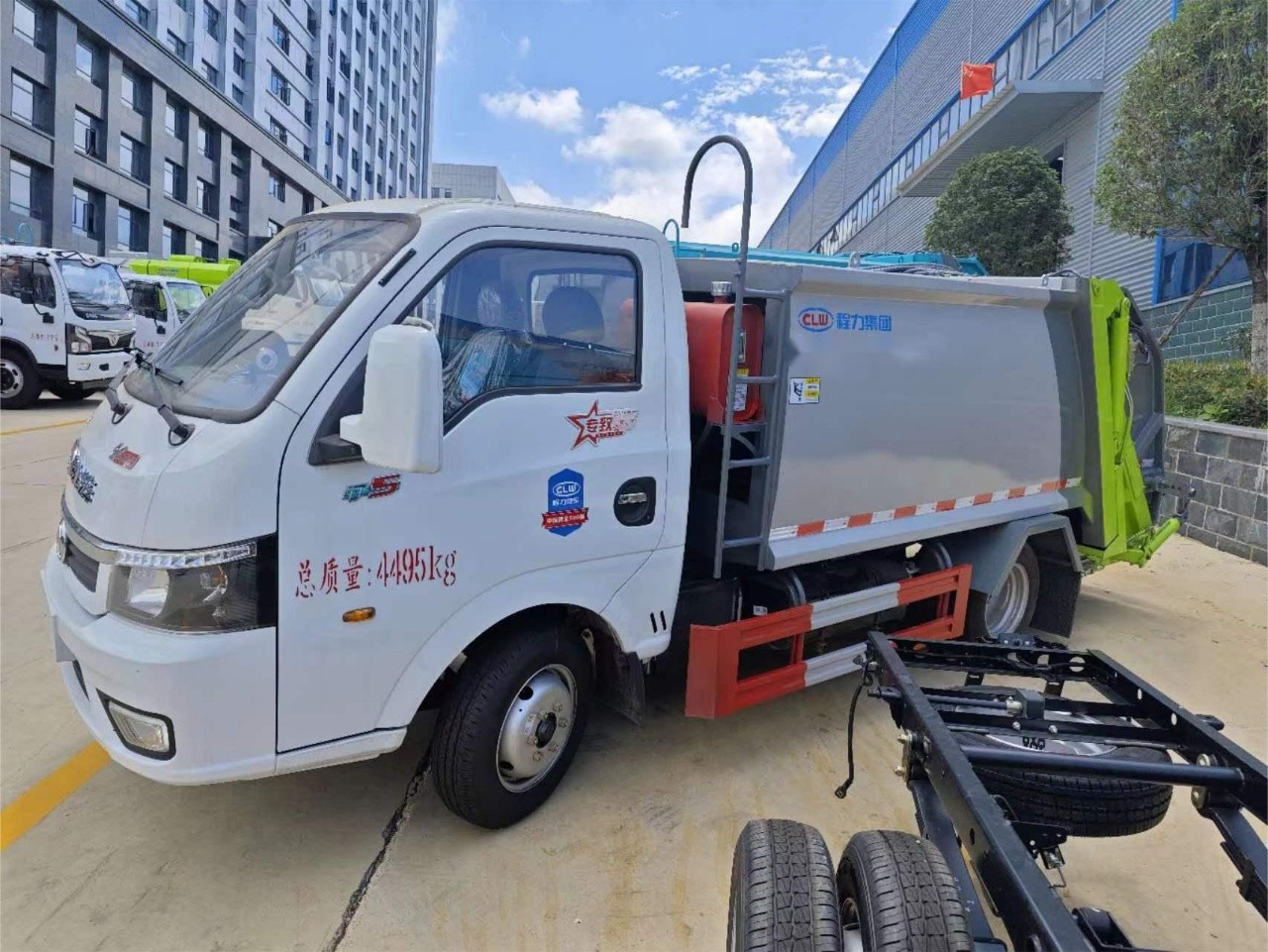

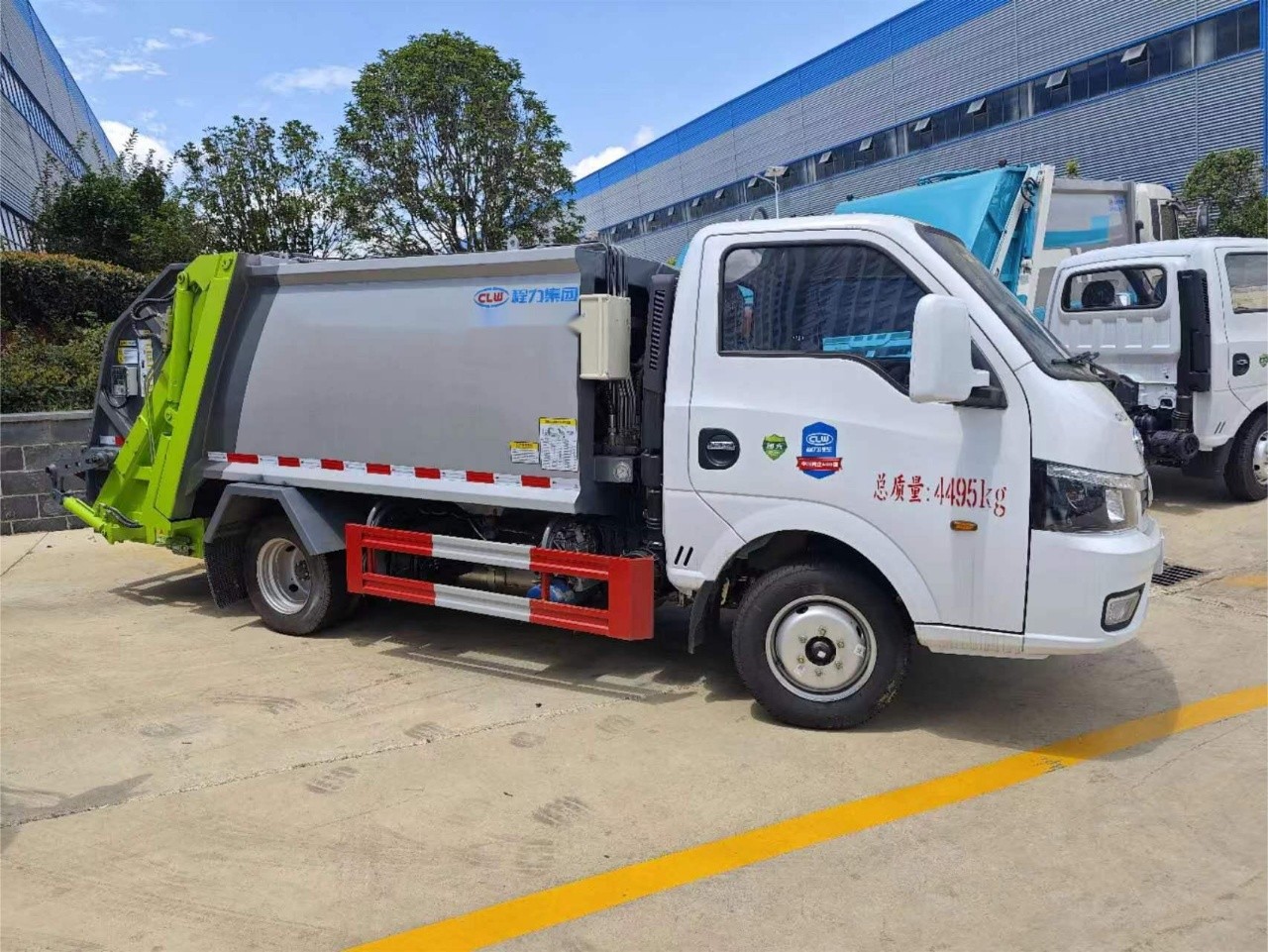

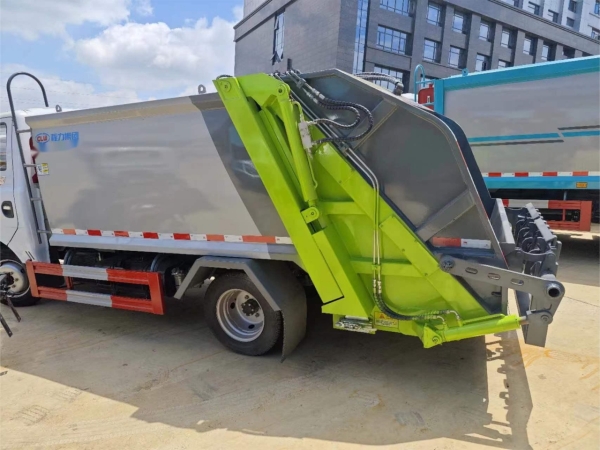

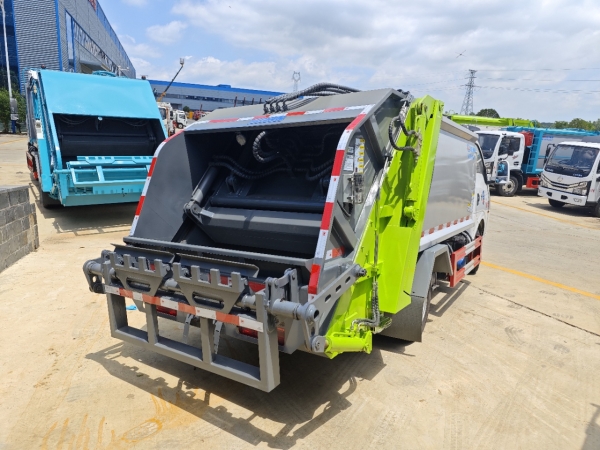

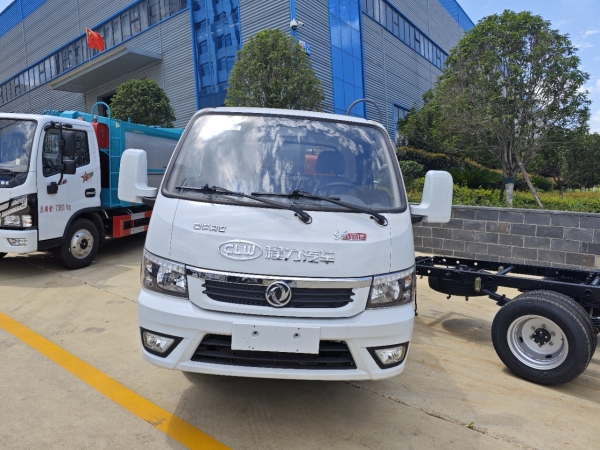

1. Pictures of the Dongfeng Tuyi 4m3 garbage compactor truck

2. Dongfeng Tuyi 4m3 garbage compactor truck adopts Dongfeng tuyi chassis, it is 95hp, 5-speed transmission, 2800mm wheelbase, electric doors and windows, original air conditioning, powersteering lift, central lock, ABS, oil brake, urea tank/tank (L) 10/55, rear twin tyre 185R15 wire tyre.

3. The garbage compactor truck body volume is 4m3, and the body side plate thickness is 3mm, bottom plate thickness is 4mm. The rear loader side plate thickness is 4mm, and the bottom plate thickness is is 6mm. The skateboard and slide thickness is 8mm. The body volume is maximized, the bulldozer cylinder is tempered, and it is made in 3 levels to minimize the space occupied by the bulldozer, maximize the box volume, and load more garbage!

The garbage compactor truck body electro-hydraulic configuration: Zhejiang Jiashan power take-off, Hefei Wanye gear pump, Weishenboler multi-way valve, balance valve, compression valve, shut-off valve, Liancheng hydraulic cylinder (all cylinders are tempered and have buffer), Guangzhou Tianhe high-pressure oil pipe (3 layers of steel wire), Global Steel Pipe, hydraulic oil tank with 3-pass filter net, all cylinder shaft pins are quenched to increase hardness and are not easy to bend and break, PLC control box with wireless remote control, the system program can be set on the smart screen according to the user's usage conditions, and the automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection and alarm prompt function, other standard configurations
