Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

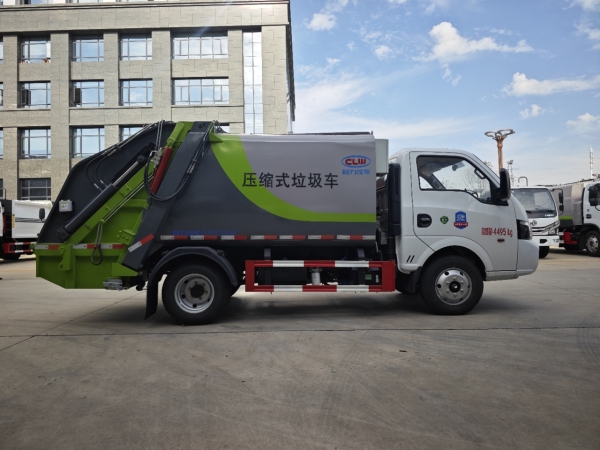

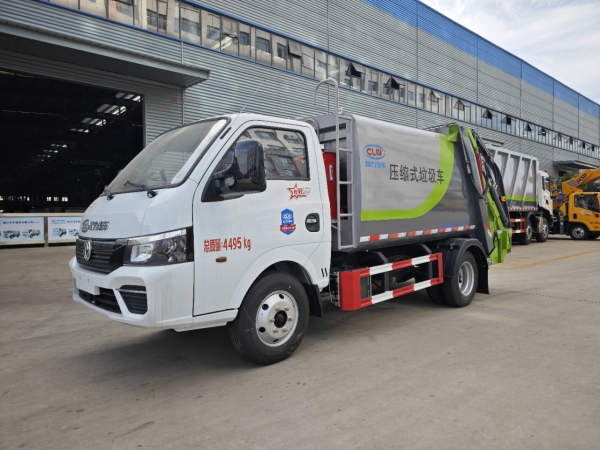

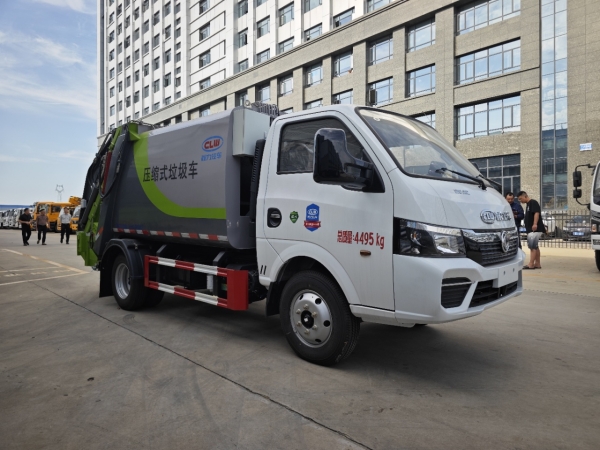

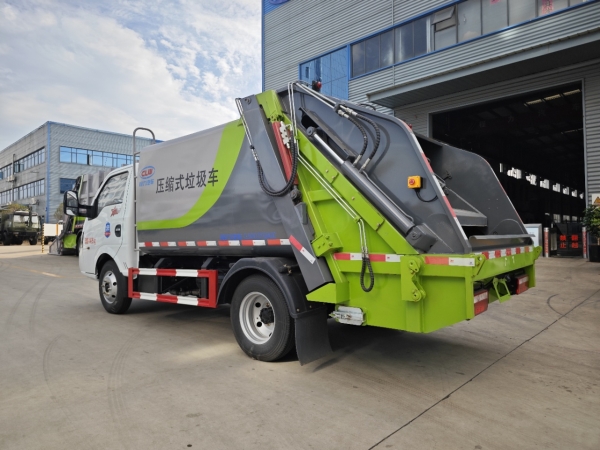

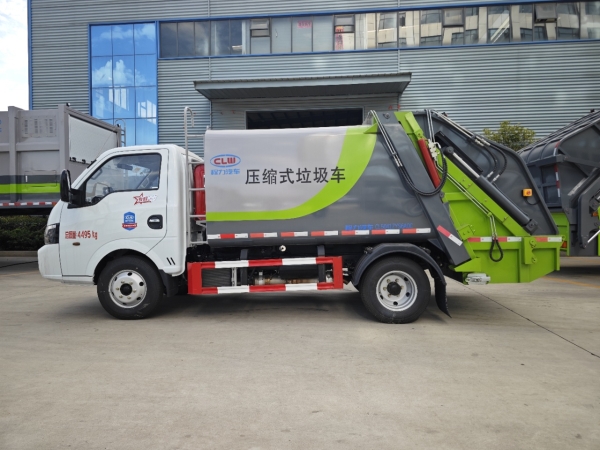

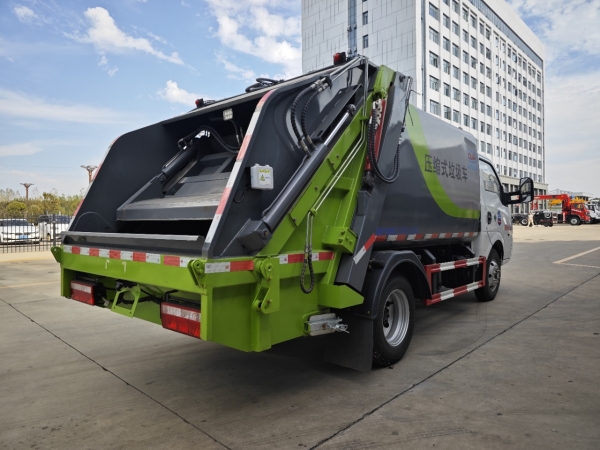

1. Pictures of the Dongfeng Tuyi 6m3 garbage compactor truck
2. The Dongfeng Tuyi 6m3 garbage compactor truck parameters:
| model | CL5041ZYS6AQC | brand | CLW |
| outer dimensions | 5995*2090*2450mm | truck body dimensions | 1980*1915*1430mm |
| GVW | 4495kg | rated loading capacity | 500kg |
| curb weight | 3865kg | axle loading capacity | 1650/2845kg |
| front suspension | 1180mm | rear suspension | 1815mm |
| passengers | 2 | max speed | 110km/h |
3. The Dongfeng Tuyi 6m3 garbage compactor truck chassis parameters:
| model | EQ1045S26DD | brand | Dongfeng |
| axle number | 2 | tyre number | 6 |
| wheelbase | 3000mm | tyre size | 185R15LT |
| front gauge | 1505mm | rear gauge | 1565mm |
| leaf spring number | 3/4+3 | fuel type | diesel |
| engine power | 140hp | emission standard | EURO VI |
4. The garbage compactor truck body configurations:
The garbage truck body volume is about 6m3. The whole garbage compactor truck body is made of T700 high-strength wear-resistant plate. The bodu side plate thickness is 4mm and the bottom plate thickness is 4mm. The rear loader side plate is 4mm thick and the bottom is 6mm thick. The skateboard and slideway are 10mm thick. The box volume is maximized. The bulldozer cylinder is tempered and made of 4 levels to minimize the space occupied by the bulldozer. The box volume is maximized and more garbage can be loaded! Standard fully sealed dust cover.
The garbage compactor truck body electro-hydraulic configuration: Zhejiang Jiashan power take-off, Hefei Wanye gear pump, Weishenboler multi-way valve, balance valve, compression valve, shut-off valve, Liancheng hydraulic cylinder (all cylinders are tempered and have buffer), Guangzhou Tianhe high-pressure oil pipe, Global Steel Pipe, hydraulic oil tank with 3-pass filter net, all cylinder shaft pins are quenched to increase hardness and are not easy to bend and break, CAN bus smart screen one-key operating system with wireless remote control, the system program can be set on the smart screen according to user usage conditions, and the automatic operation conversion time and throttle control size can be set by yourself, with automatic fault detection and alarm prompt function.
