Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

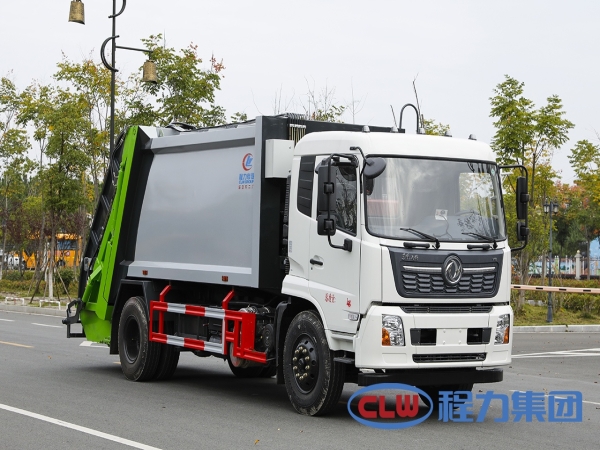

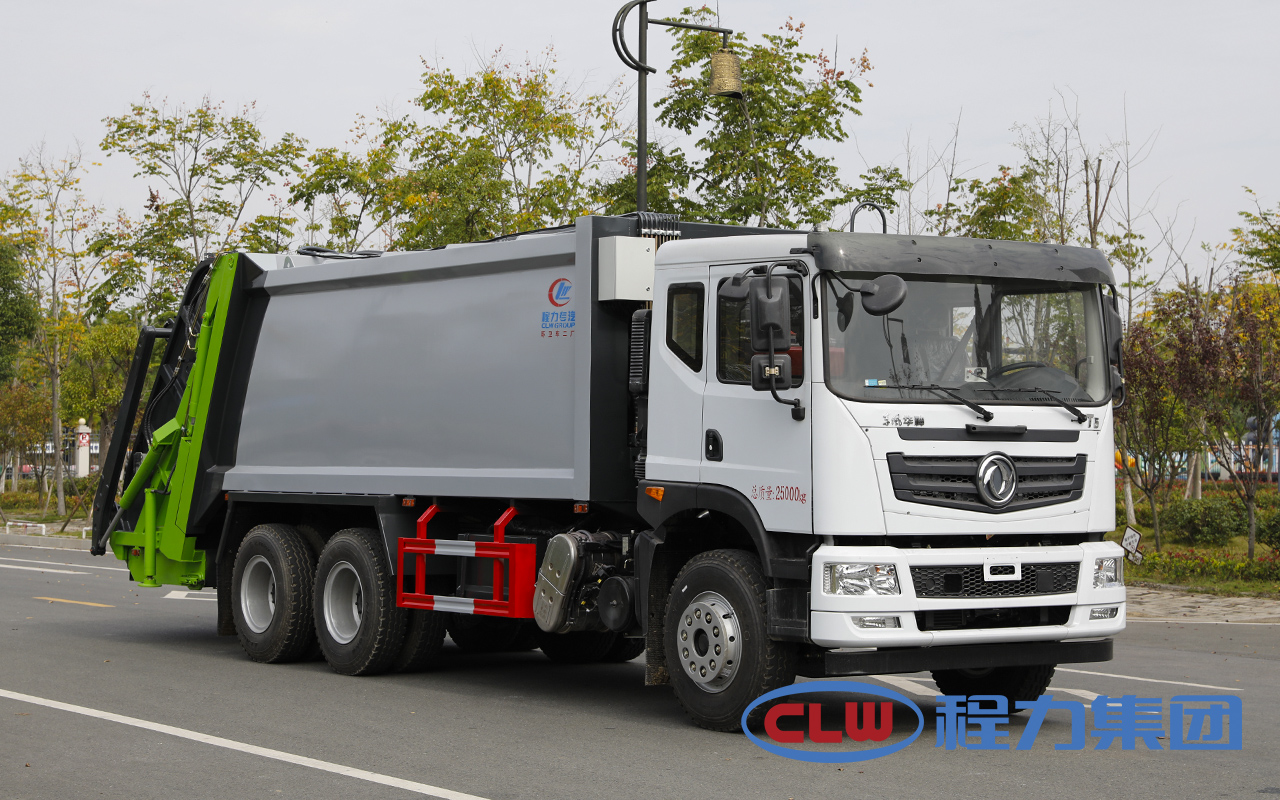

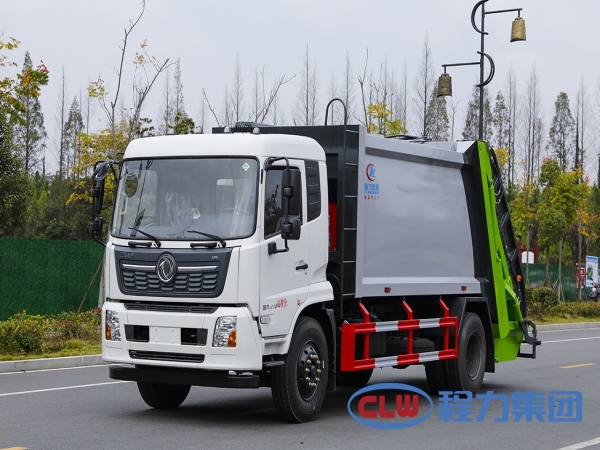

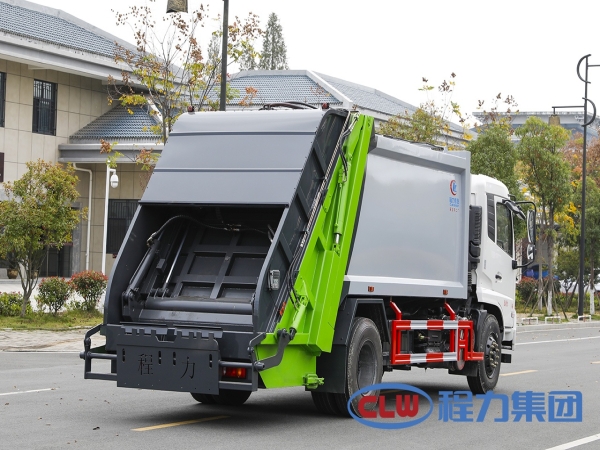

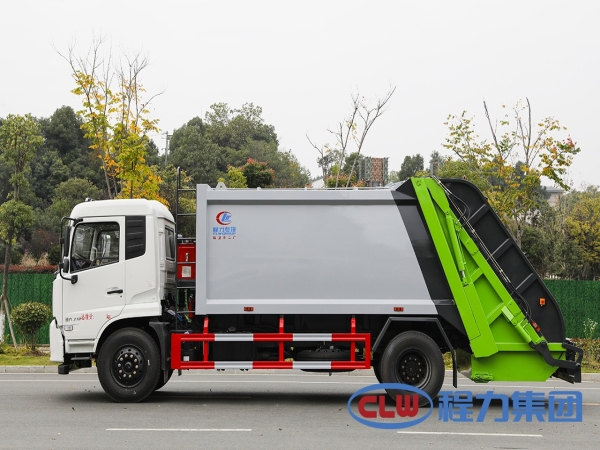

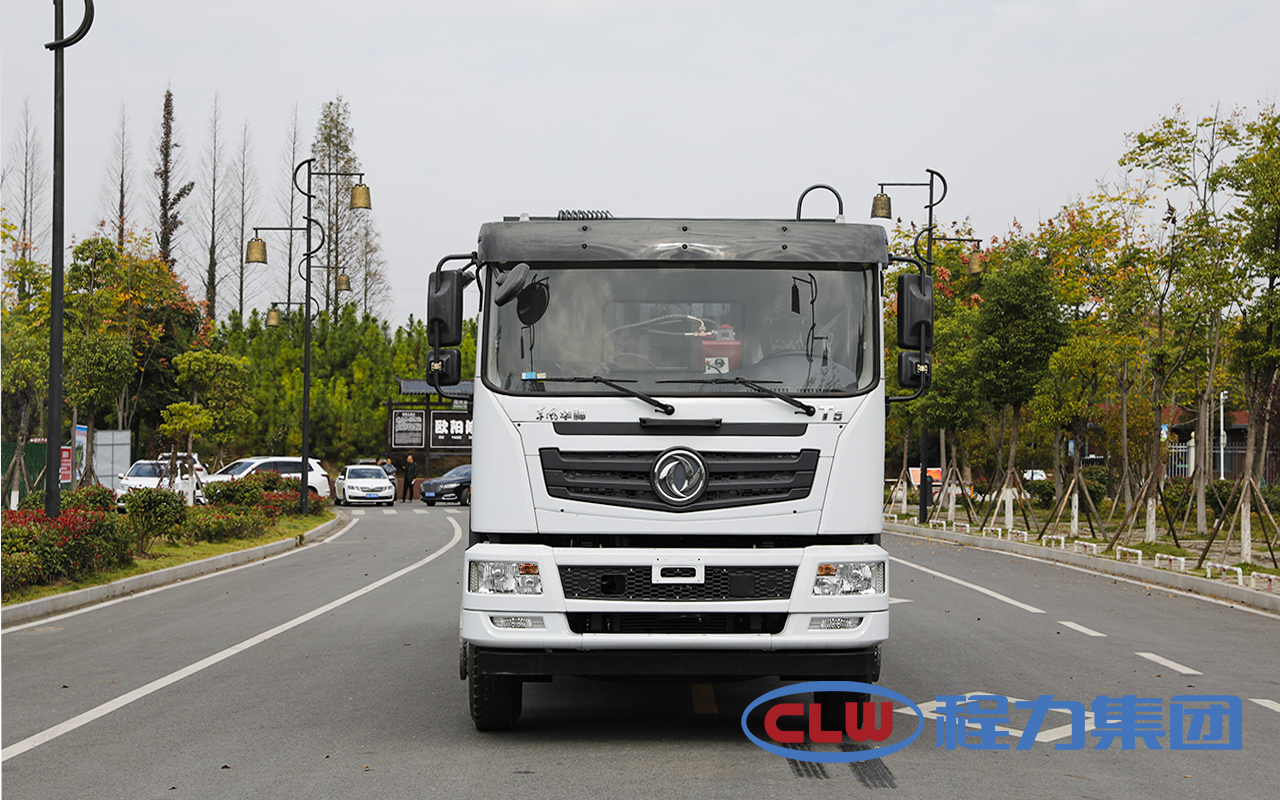

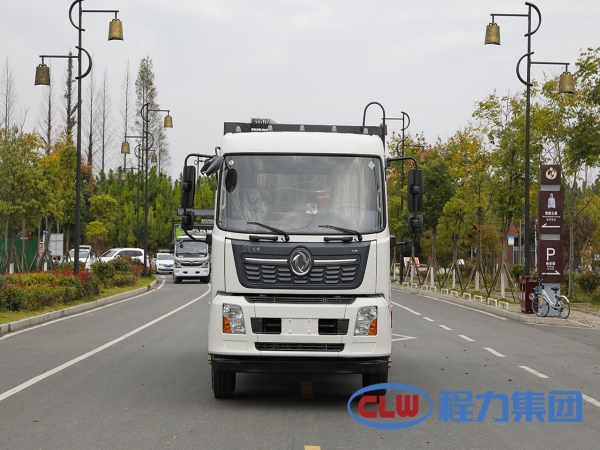

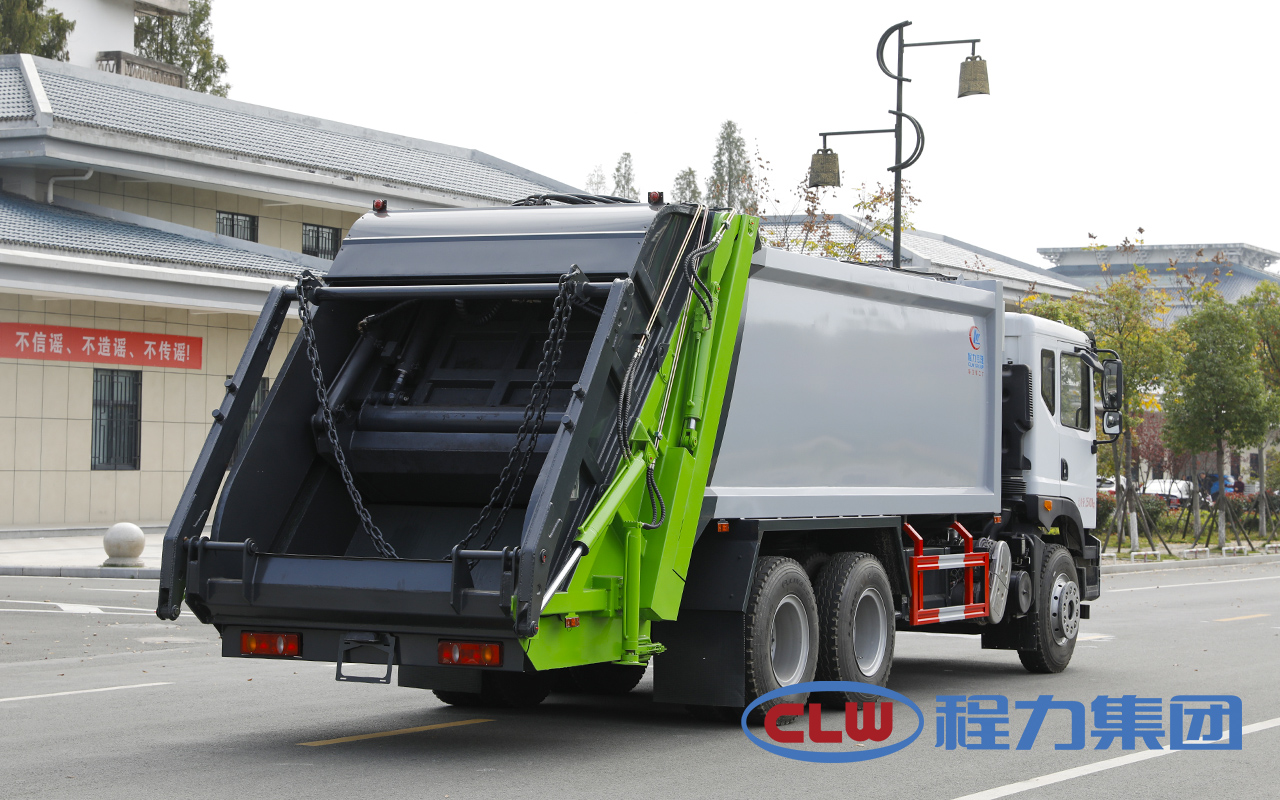

Parameters of the 20m3 garbage compactor truck:
| GVW | 25000kg | truck body volume | 20m3 |
| rated loading capacity | 10090kg | outer dimensions | 10500*2520*3300mm |
| curb weight | 14780kg | approach/ departure angle | 25/20 ° |
| axle number | 3 | passengers | 3 |
| wheelbase | 4350+1350mm | front/rear suspension | 1450/3350mm |
| max speed | 88km/h | tyre size | 11.00R20 18PR |
| chassis model | EQ1250GL6DJ | chassis type | II |
| tyre number | 10 | fuel type | diesel |
| emission standard | EURO VI | engine power | 199KW |
The garbage compactor truck body parameters:
| truck body effective volume | 20m3 | body shape | arc shape |
| body thickness | side plate 5mm bottom plate 6mm | rear loader effective volume | 1.4m3 |
| cycling time | ≤25s | garbage discharging time | ≤45s |
| control method | manual + automatic | hydraulic system max pressure | 18MPa |
| multiway valve | Zhongmei | hydraulic oil pump | Wanye |
| hydraulic cylinder | Boli | PTO | Jiashan |
| hydraulic oil tube | Guangzhou Tianhe | control system | PLC/ CAN |

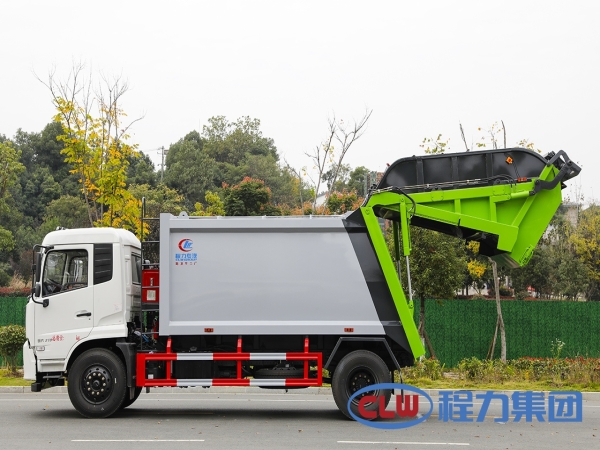

| balance valve | Zhongmei | turn over mechnism | 240L*2pcs |
