Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |
Dongfeng Doric 12m3 garbage compactor truck parameters:
| model | CL5140ZYS6BGX | outer diameters | 7640*2360*3000mm |
| GVW | 14060Kg | rated loading capacity | 5265kg |
| curb weight | 8600kg | axle loading capacity | 4860/9200kg |
| front/rear suspension | 1180/2460mm | max speed | 120km/h |
| approach/departure angle | 23/9° |
Dongfeng Doric 12m3 garbage compactor truck chassis parameters:
| mode | EQ1145SJ8CDC | brand | Dongfeng |
| axle number | 2 | tyre number | 6 |
| wheelbase | 3800mm | tyre size | 8.25R20 |
| front/rear gauge | 1745/1630mm | leaf spring number | 8/10+7 |
| fuel type | diesel | engine | Yuchai 165hp |
Dongfeng Doric 12m3 garbage compactor truck body configurations:
The volume is approximately 12m3. The new type of breakable scraper, mid-mounted and rear-mounted sewage tanks. Domestic well-known brand hydraulic system (Zhongmeiduolu valve, Wanli oil pump, Haipres hydraulic cylinder). The driver's cabin and the vehicle body adopt CAN/PLC bus control system, equipped with wireless remote control, photoelectric sensing, and tail flip frame. It is equipped with a compaction valve and a lighting lamp. The rear part can be equipped with pneumatic sealing cover / triangular bucket / large landing bucket / swing arm device.

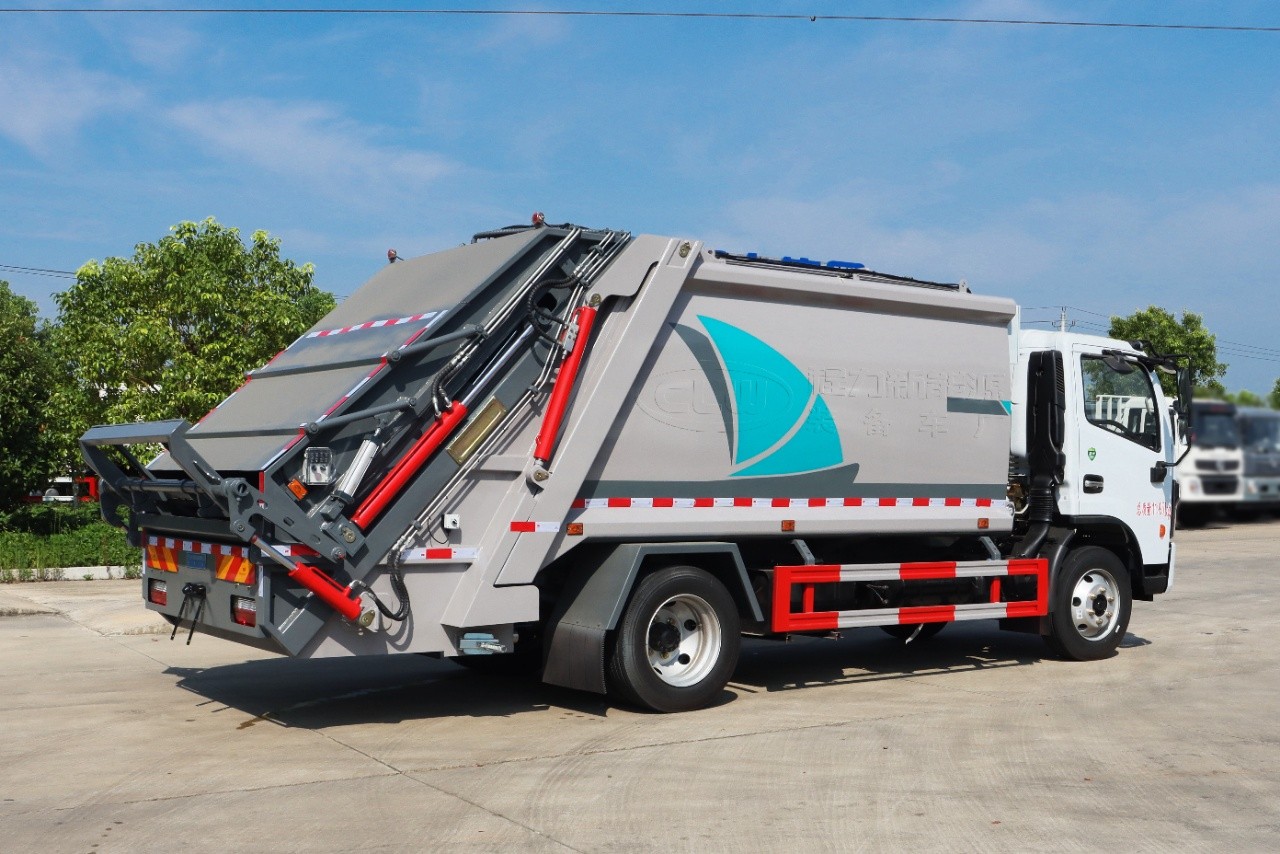

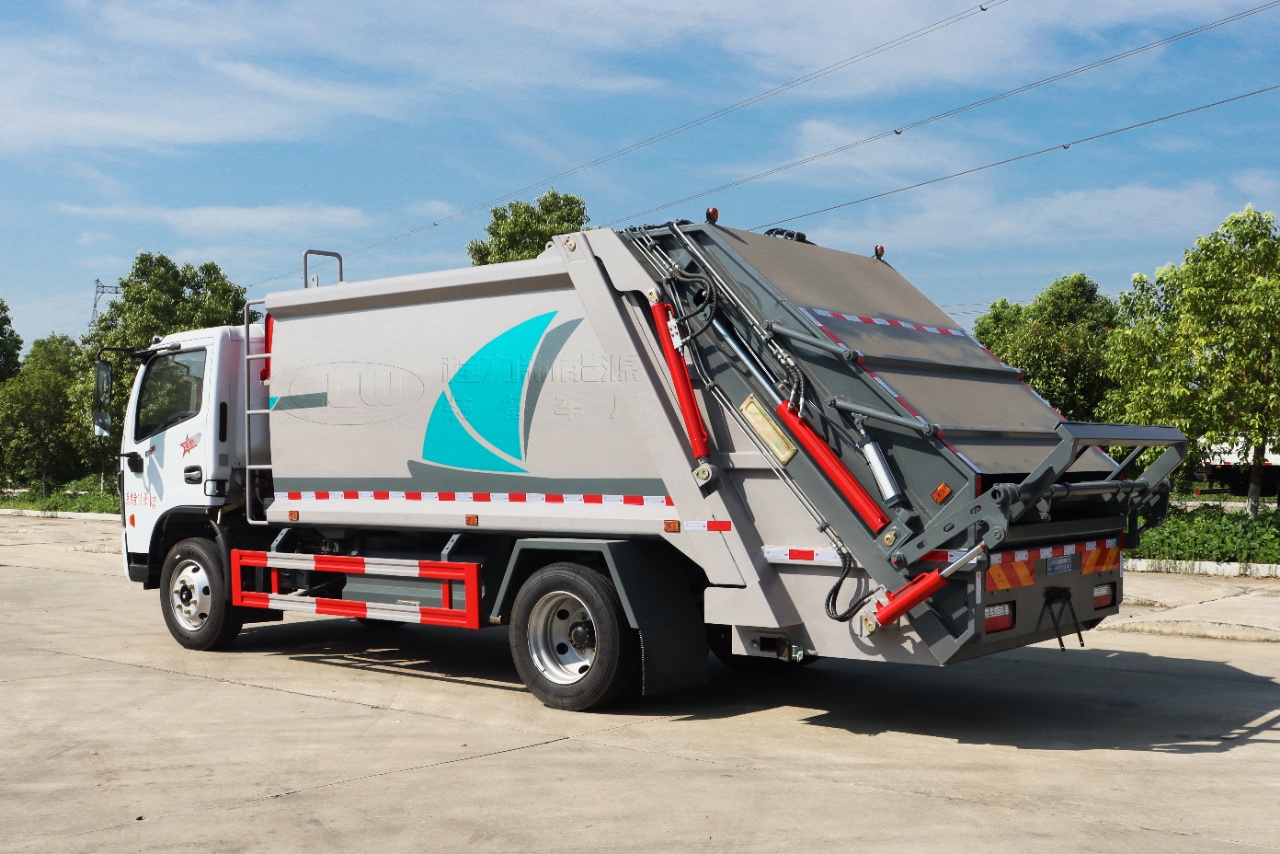

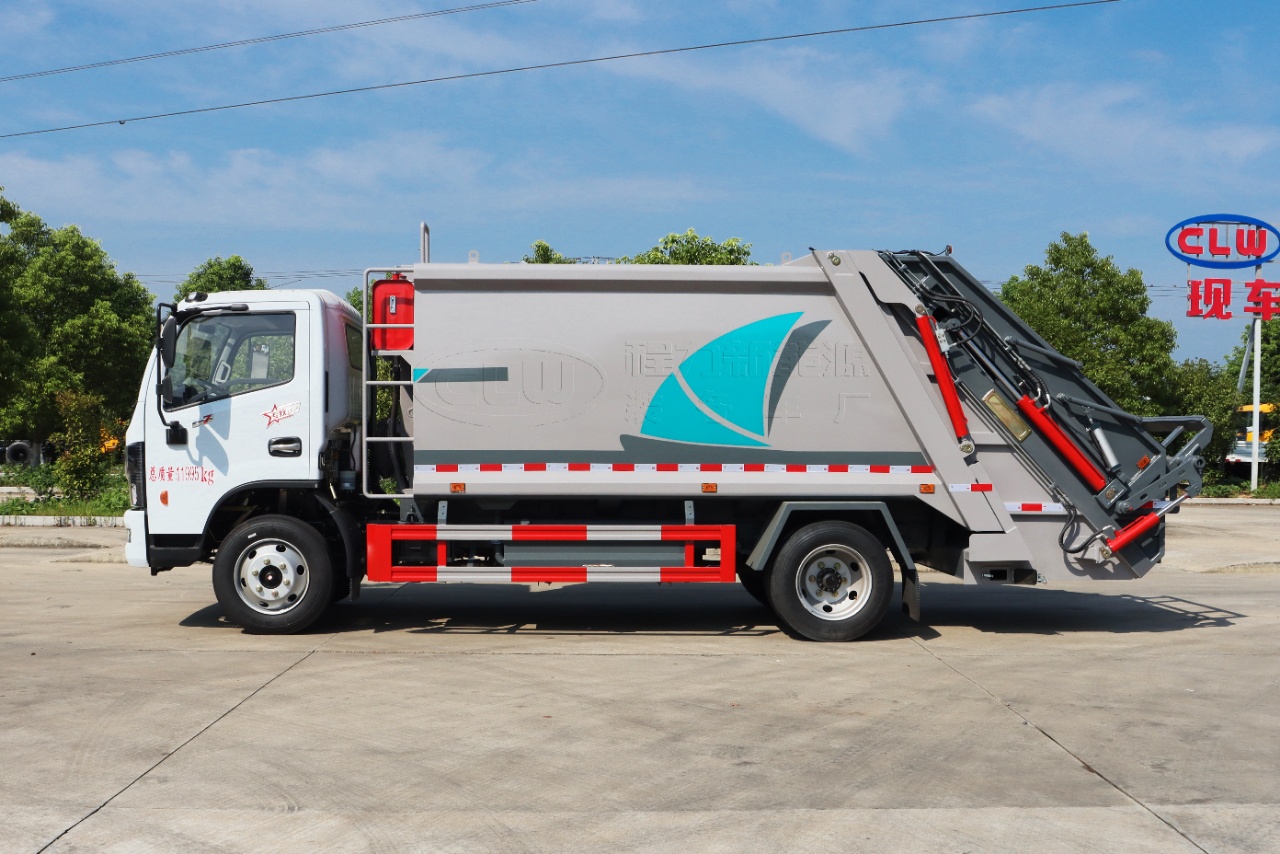

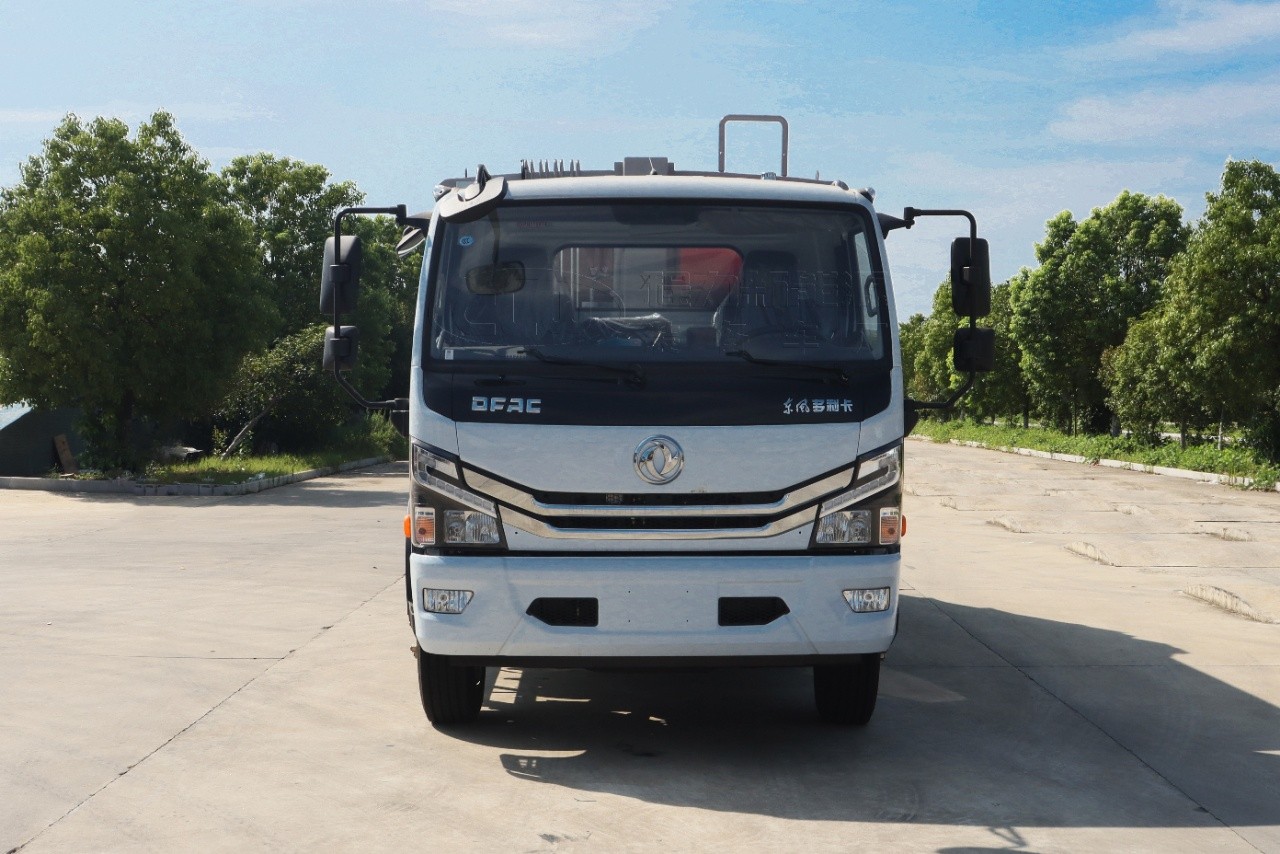

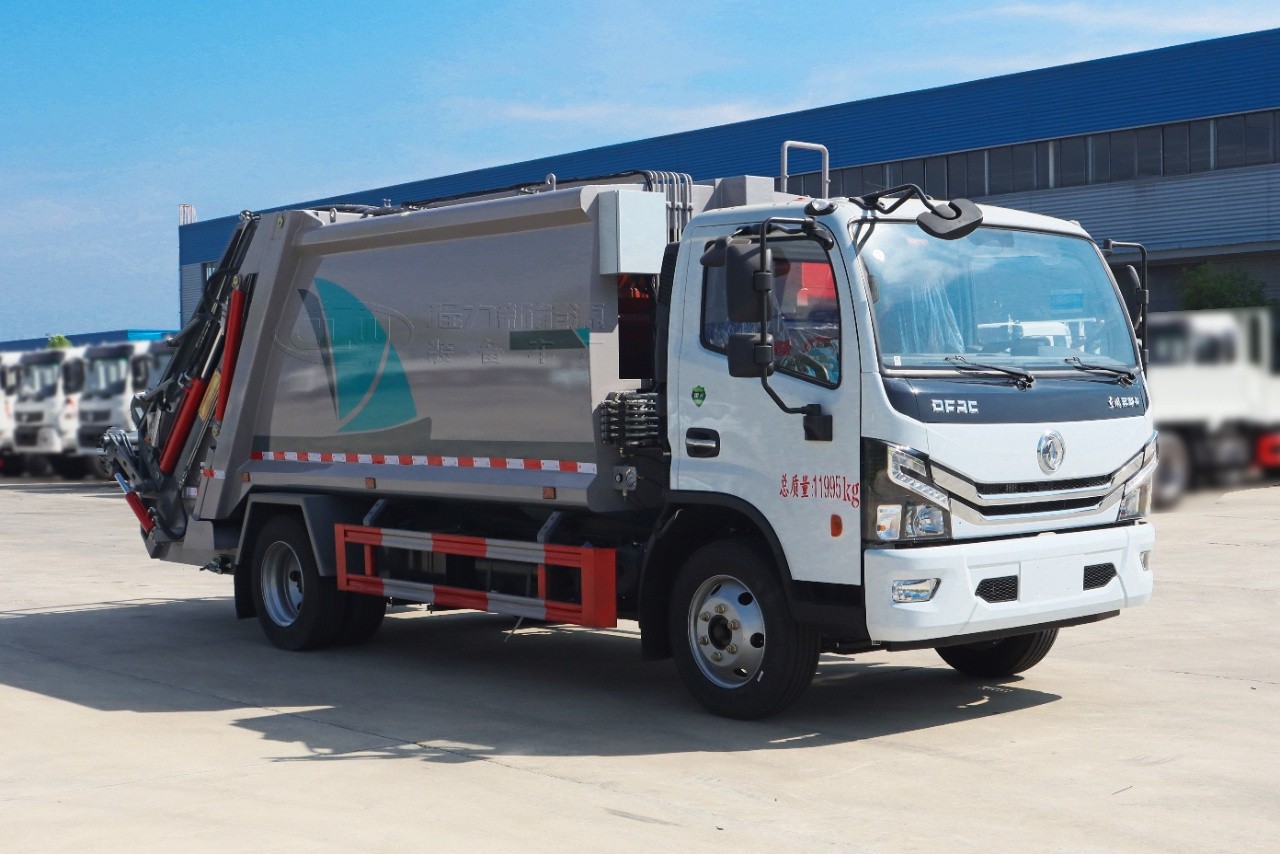

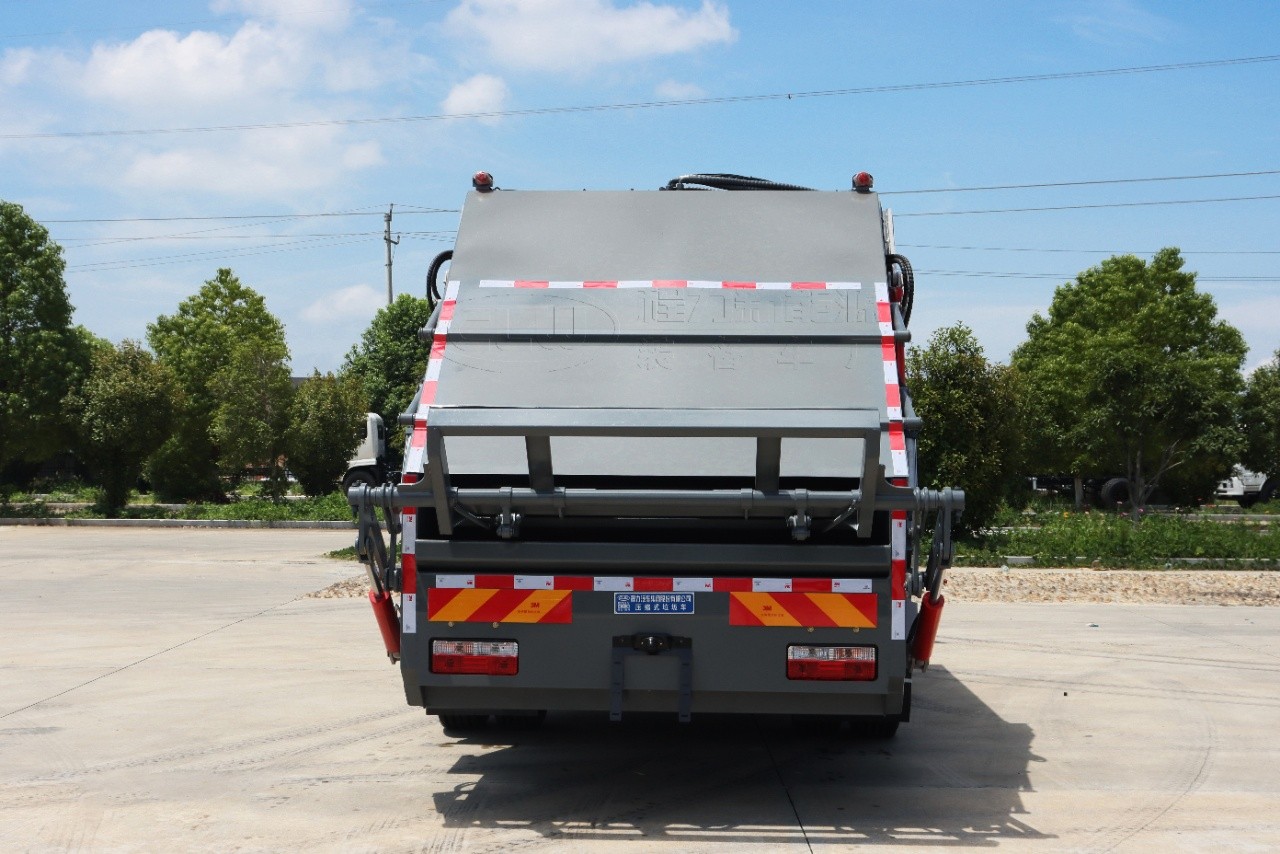

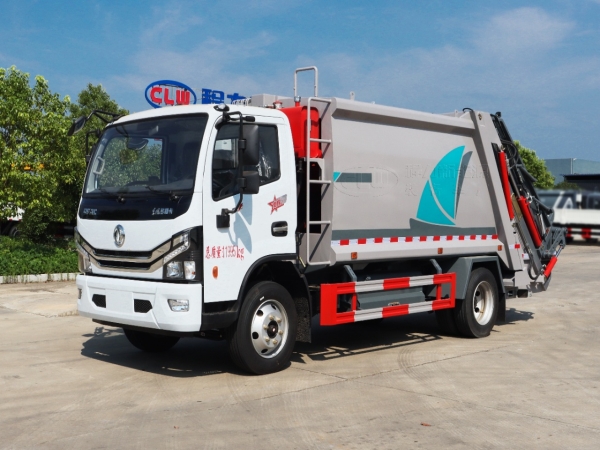

More pictures of the Dongfeng Doric 12m3 garbage compactor truck:
