Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |
The Shacman electric refrigerator truck parameters:
| model | SX5045XLCBEV341N | GVW | 4495KG |
| rated loading capacity | 1215kg | rated loading capacity | 3150kg |
| front/rear overhang | 1200/1435mm | passengers | 3 |
| max speed | 100km/h | approach/departure angle | 19/14° |
The Shacman electric refrigerator truck chassis parameters:
| model | SX1045EV341N | brand | Shacman |
| wheelbase | 3360mm | tyre size | 7.00R16 LT |
| GVW | 4495kg | curb weight | 2450kg |
| axle loading capacity | 1950/2545kg | front/rear gauge | 1620/1540mm |
| front/rear gauge | 1620/1540mm | leaf spring number | 2/3+2 |
| fuel type | electric | max speed | 100km/h |
The Shacman electric refrigerator truck body configurations:

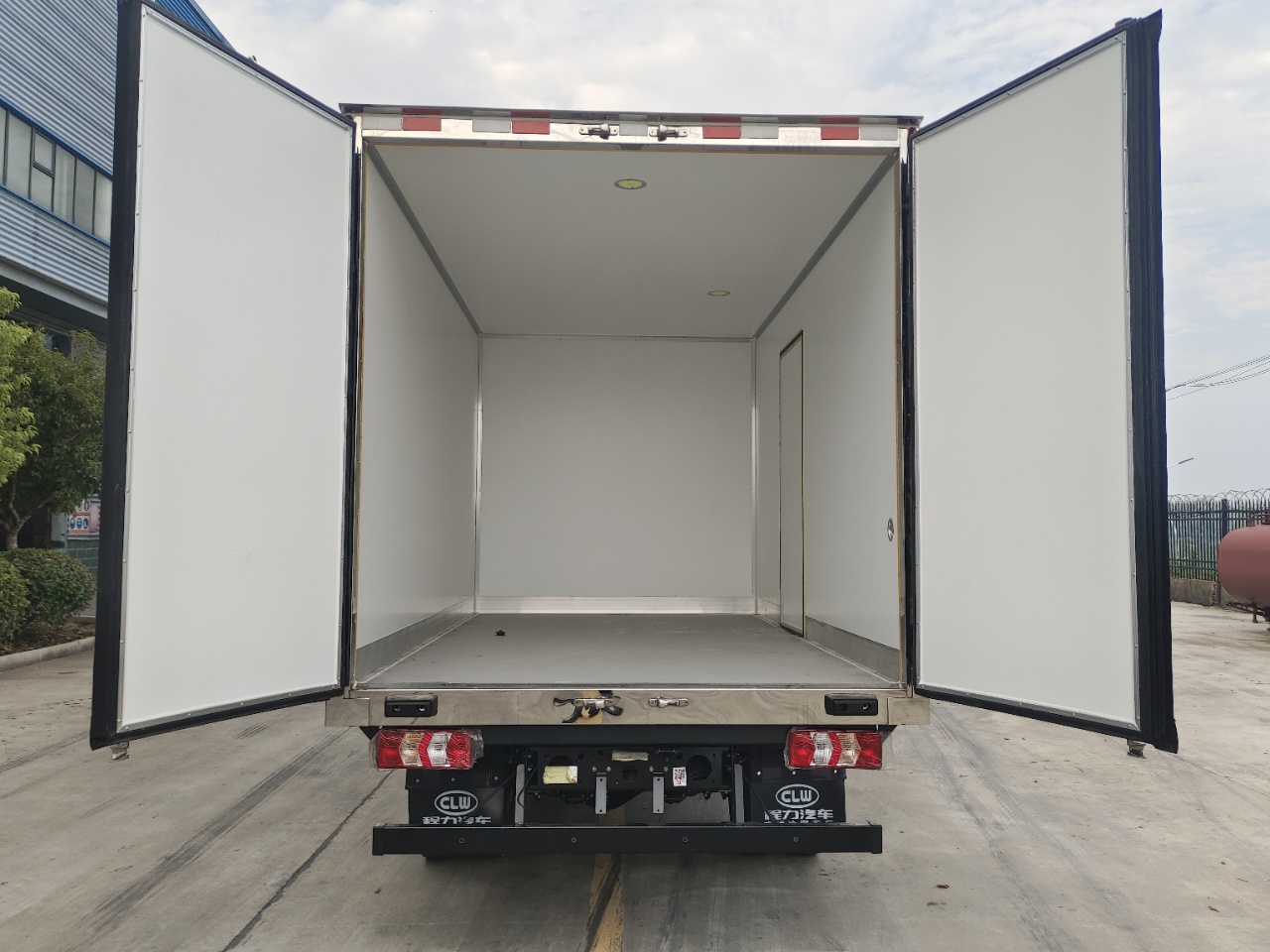

Truck dimensions: 4080 × 2100 × 2100 (mm). The body is made of inner and outer fiberglass materials, with an 8 cm thick insulation layer in the middle. The bottom of the box is made of anti-slip and wear-resistant fiberglass patterned board with 12 cm profile edge. There is 1 drainage outlet at the front. The sides of the box are wrapped with right-angle aluminum profiles, the rear door is stainless steel wrapped, and it opens on the right side. There are two ceiling lights inside the box.
