Truck Model: HFC5036XLCPV3E8B3S

Overall Dimensions: 5270 × 1780 × 2750mm

Trunk Dimensions: 3110 × 1610 × 1750mm

Other chassis Configuration: 2600mm wheelbase, Dong'an DAM16KL gasoline engine, 1.6-liter displacement, 122 horsepower, 5-speed transmission, 175/75R16LT tires, electronic power assist, electric glass, remote key, central locking, air conditioning.

JAC 3m refrigerated truck body configurations:

The refrigerated truck uses galvanized pipe frame, fiberglass on both outside, and 8CM polyurethane extruded board filled in the middle;

High-strength adhesive, positive pressure machine hot pressing molding (using fully automatic glue pressing machine, glue application + plate pressing is carried out in one breath, glue application is uniform, not prone to bulge, and the plate is produced quickly and efficiently).

The bottom of the refrigerator truck body is a plastic steel patterned plate, the inner side is equipped with aprons, there are drainage holes at the front, the door edge strip adopts rainproof design and labyrinth rubber sealing strip, aluminum alloy profile edge wrapping, stainless steel corner wrapping, stainless steel door lock, thickened stainless steel rear door hinge and lock components, and the interior of the trunk uses LED lighting.

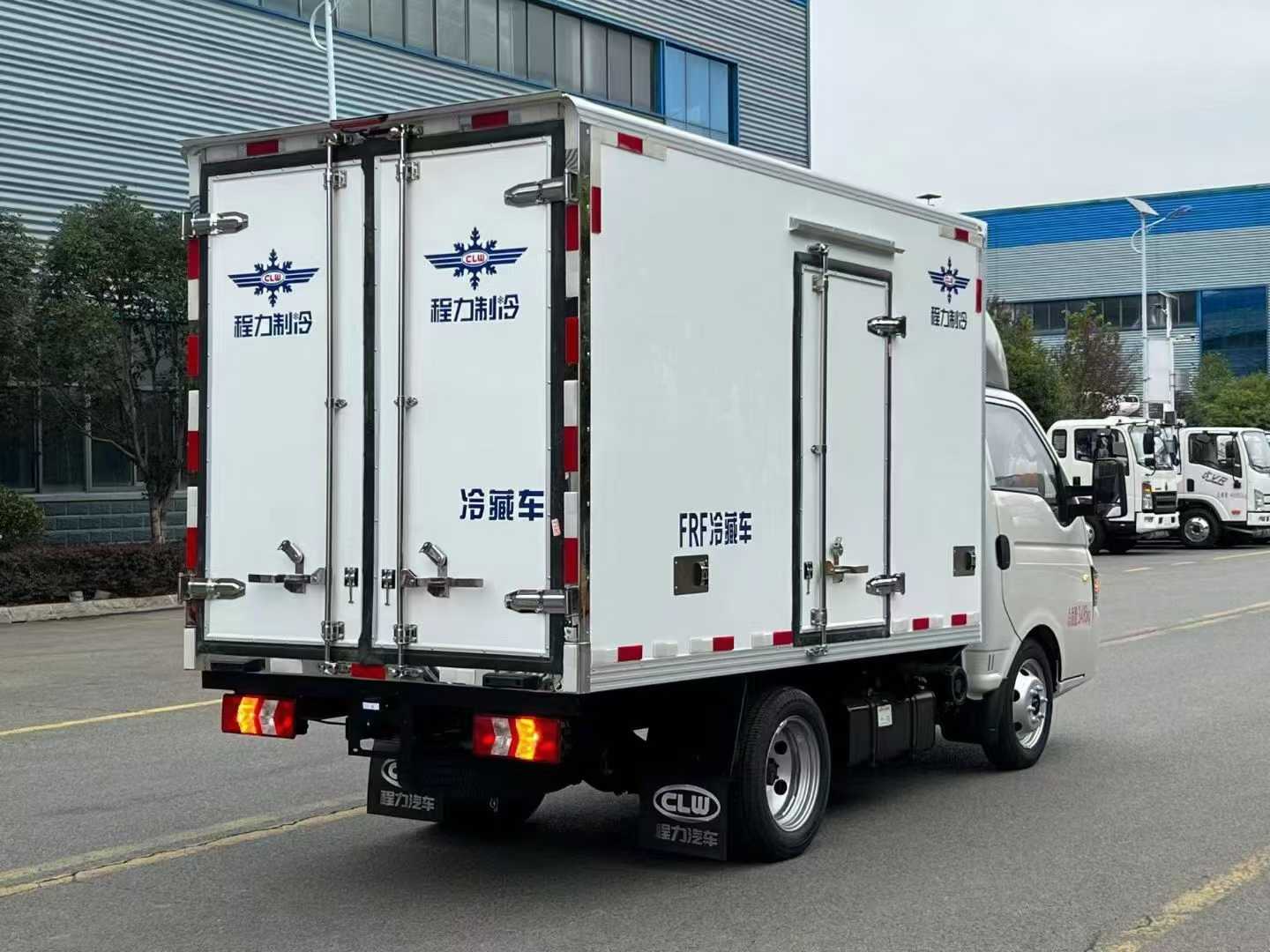

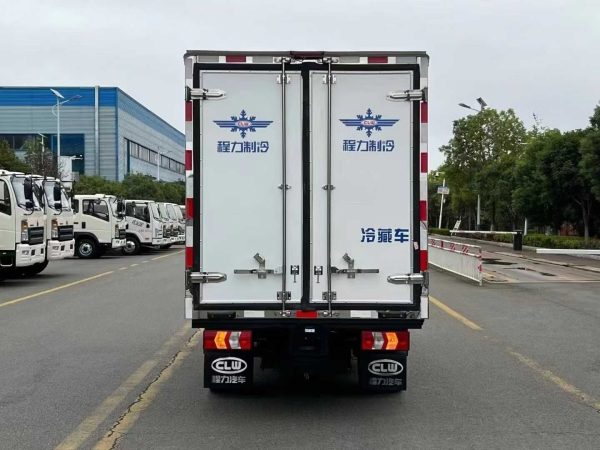

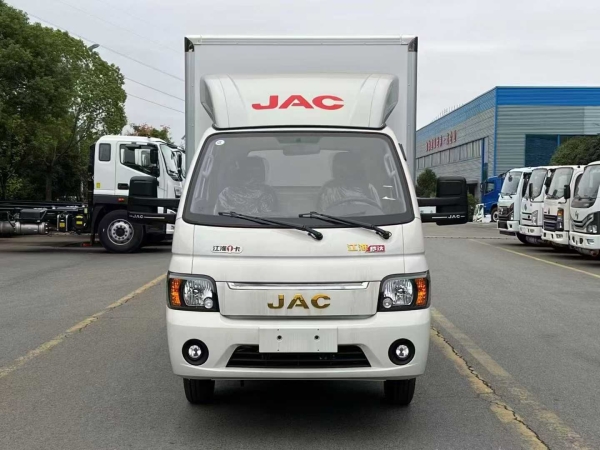

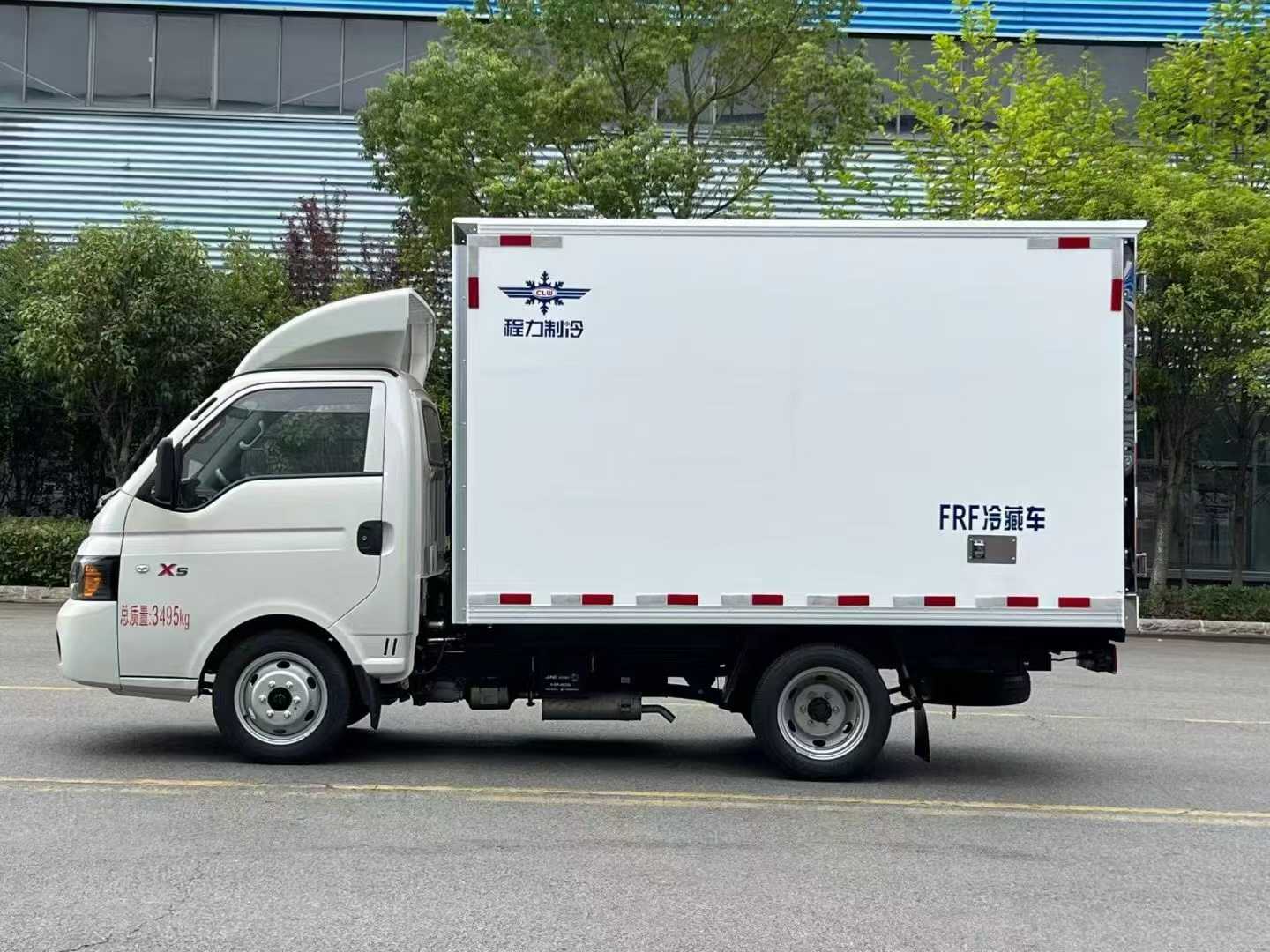

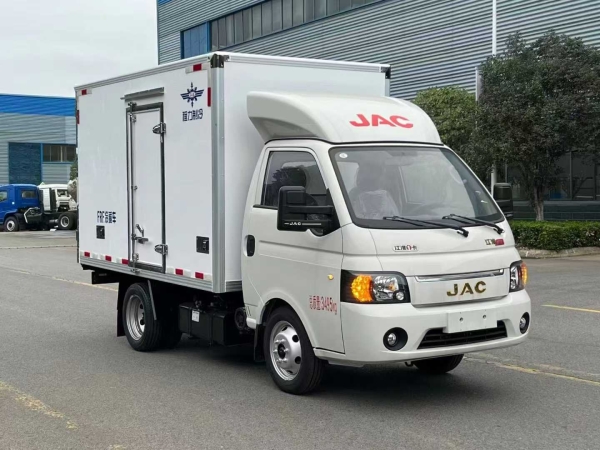

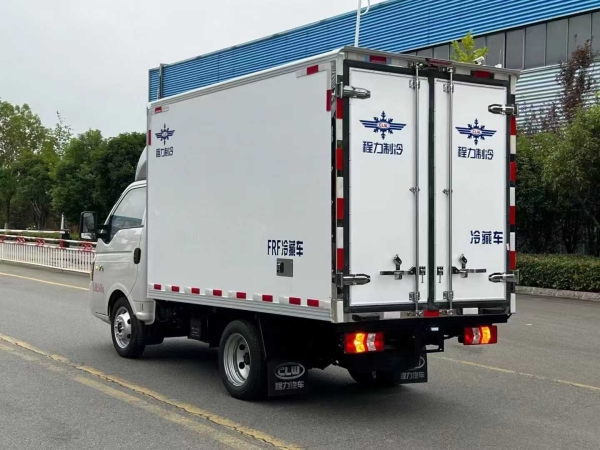

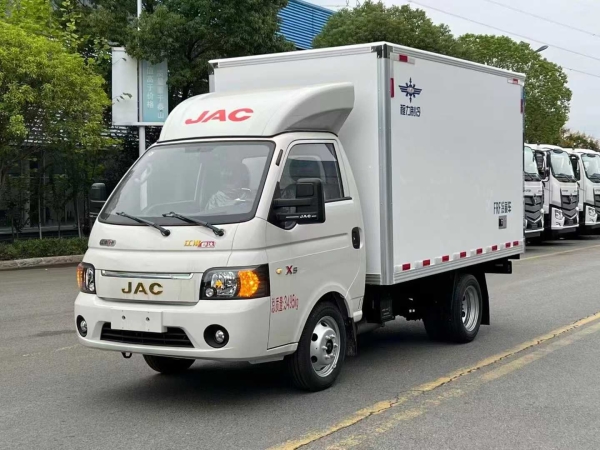

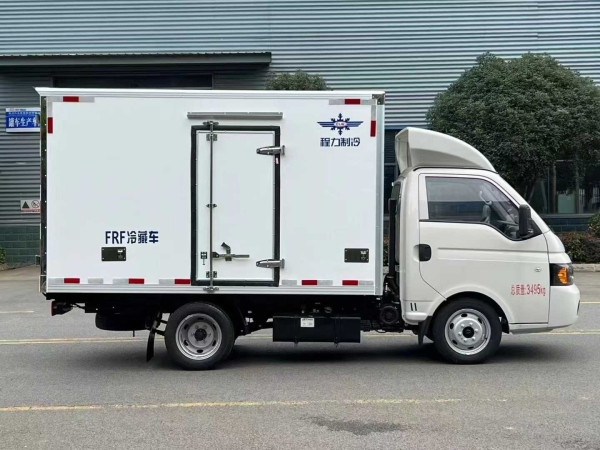

Refrigerator truck made delivery in batch:
