Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |
ISUZU 12T Vacuum Road Sweeper Truck parameter ：
| Model | CLW512088651XS12 | Brand | CLW |
| Drive type | 4*2 left-hand drive | CVW | 12000kg |
| Fuel type | Diesel | Emission standard | Euro 6 |
| Engine30 | ISUZU 190 HP | Number of cylinders | 4 cylinders |
| Number of axles | 2 | Wheelbase | 4500mm |
| Transmission | 6-speed transmission | Rear axle | 5T |
| Tire size | 8.25R20 | Number of tires | 6+1 |
| Vehicle size | 8000*2550*2300mm | Sewage tank size | 5m³ |
| Maximum speed | 89km/h | Clean water tank size | 5m³ |

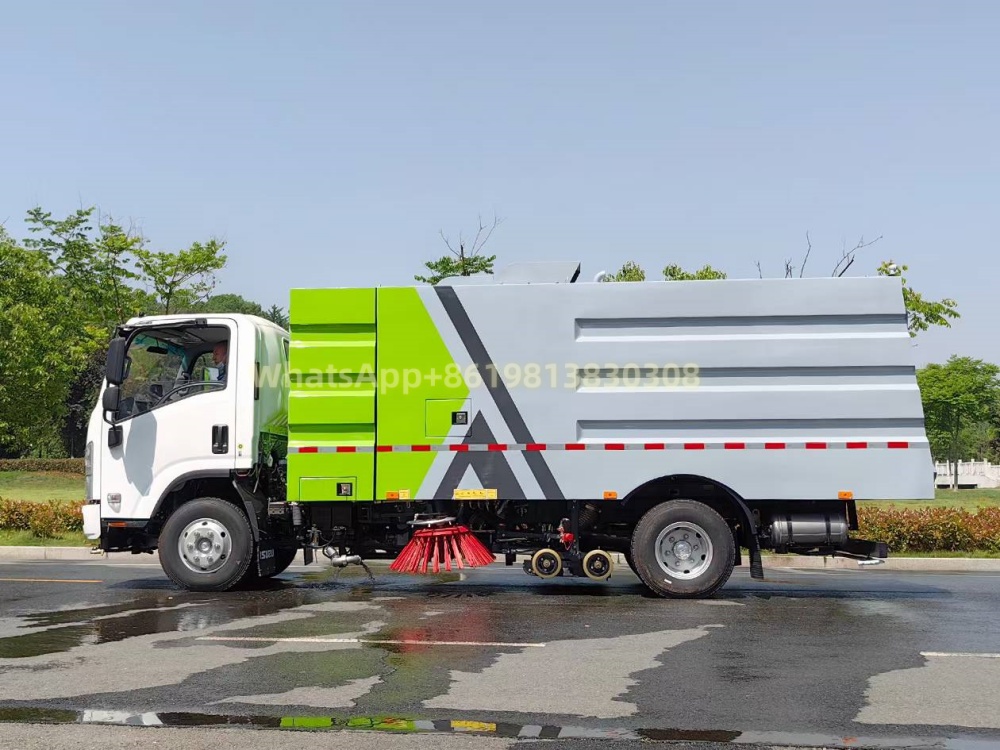

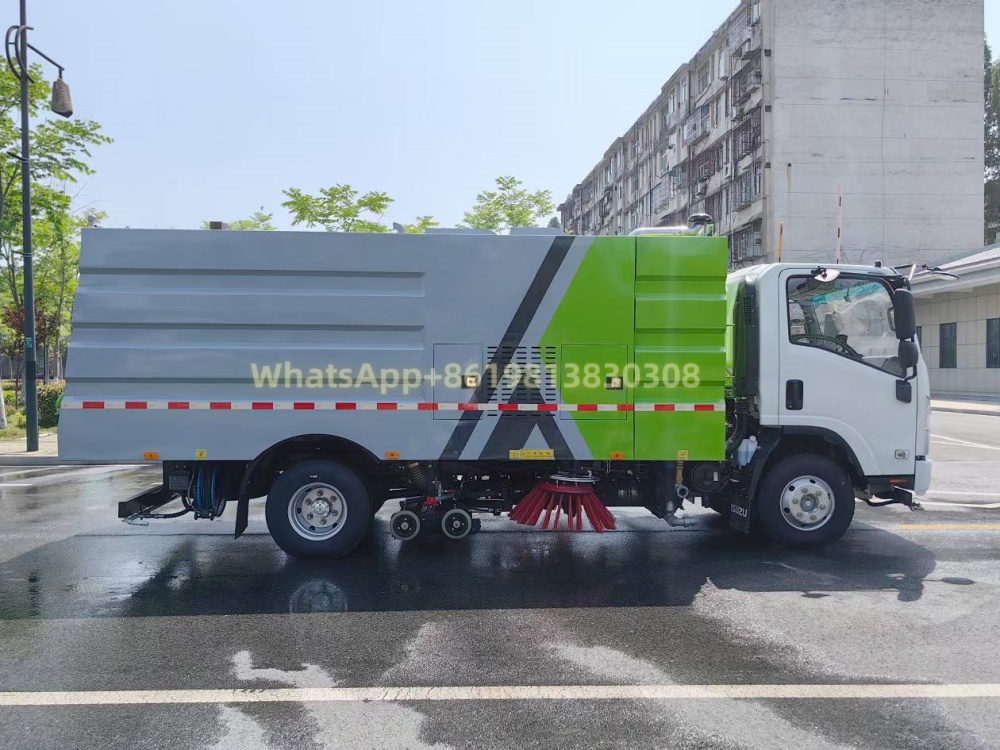

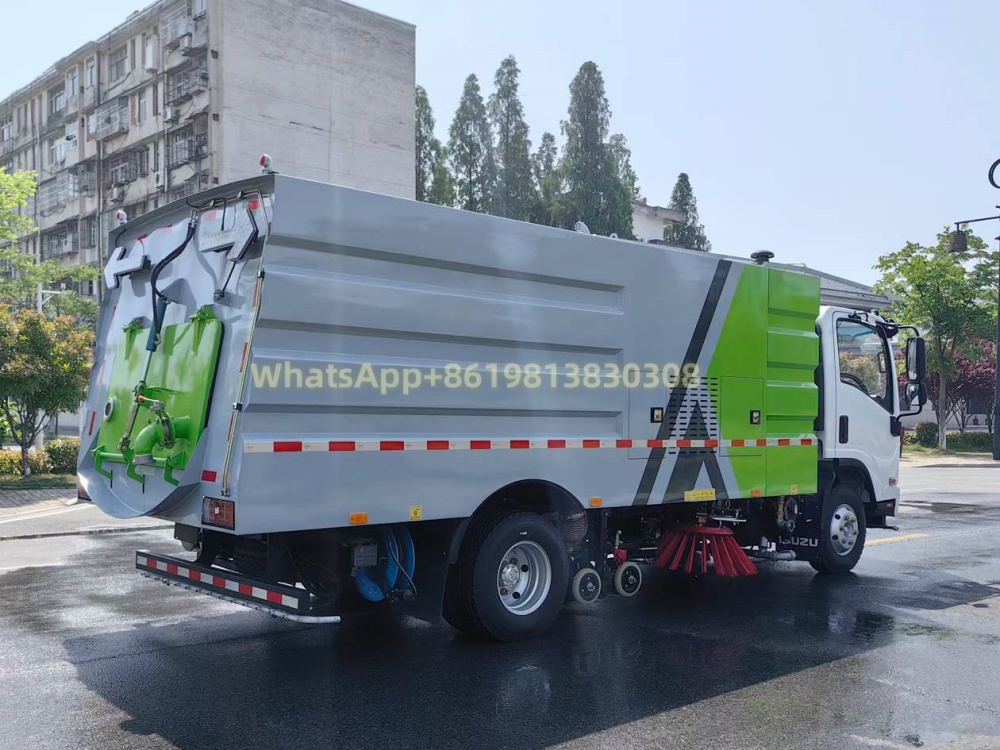

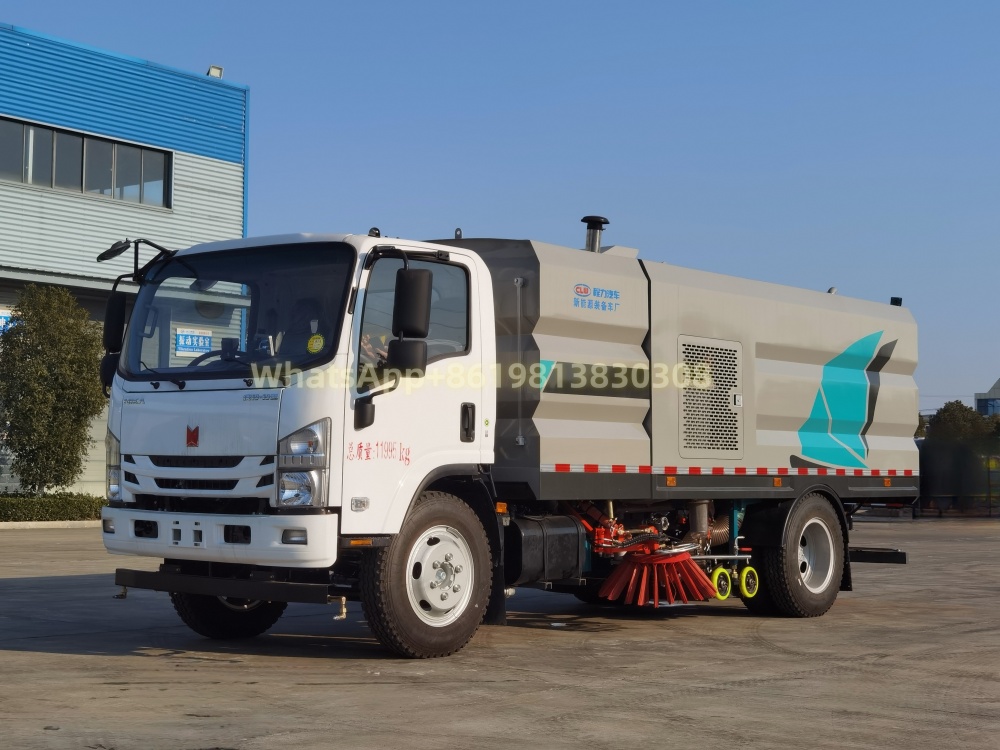

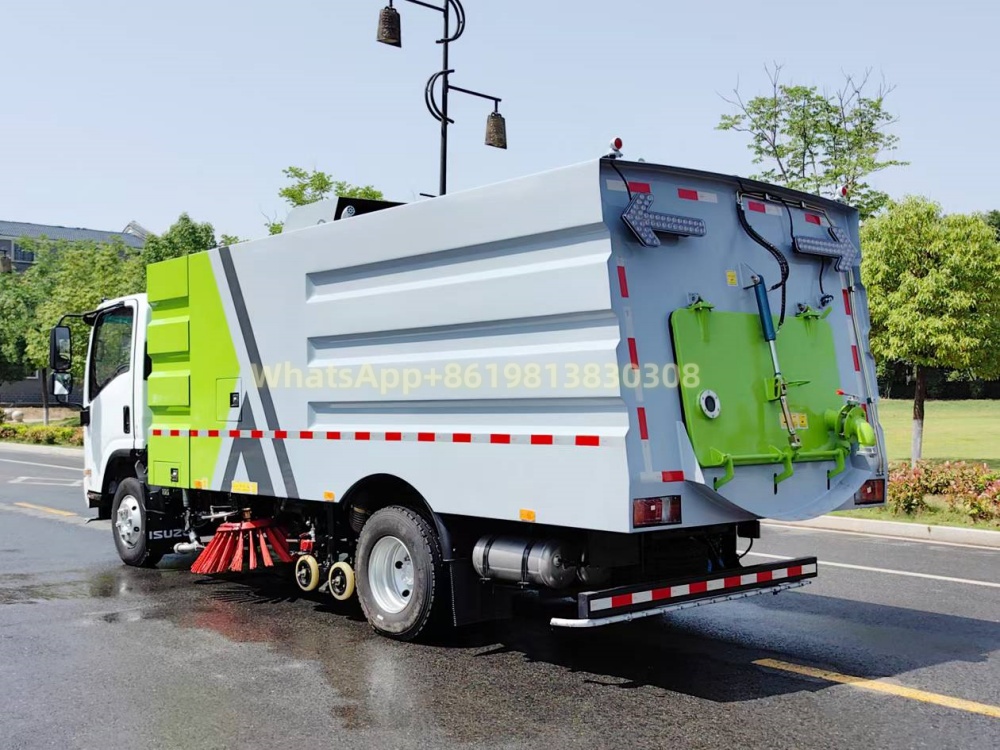

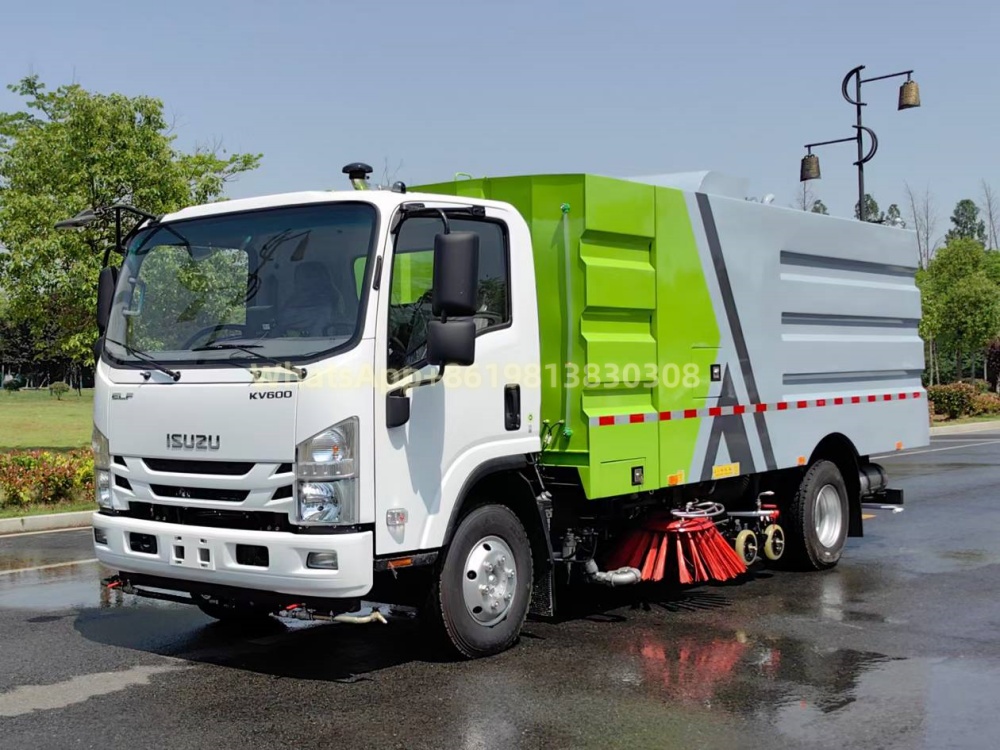

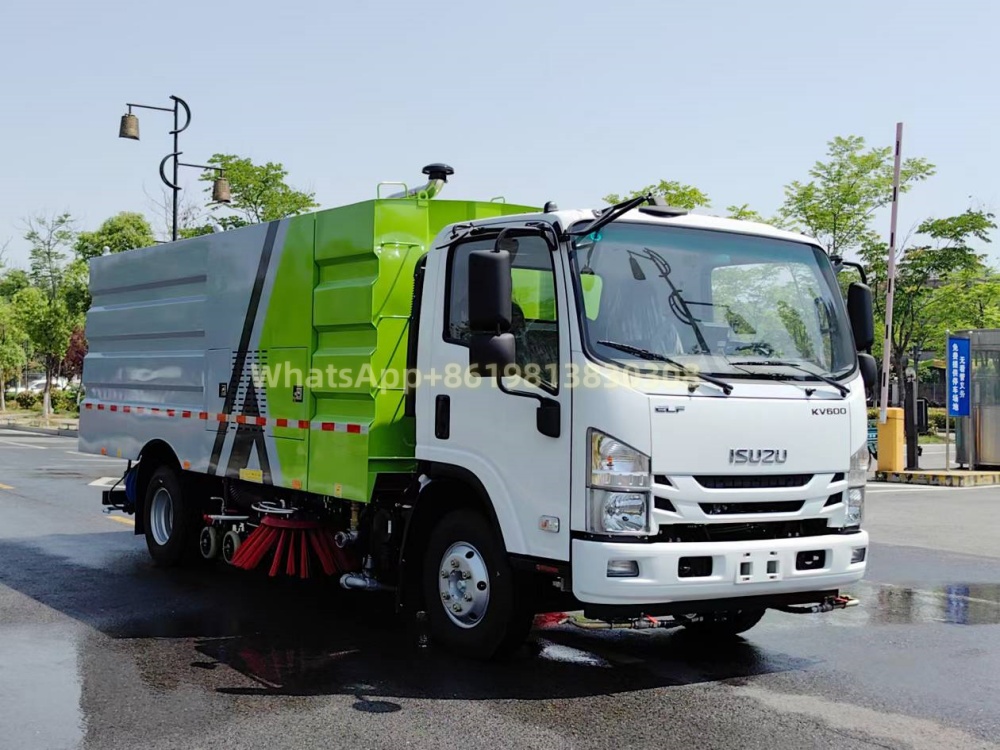

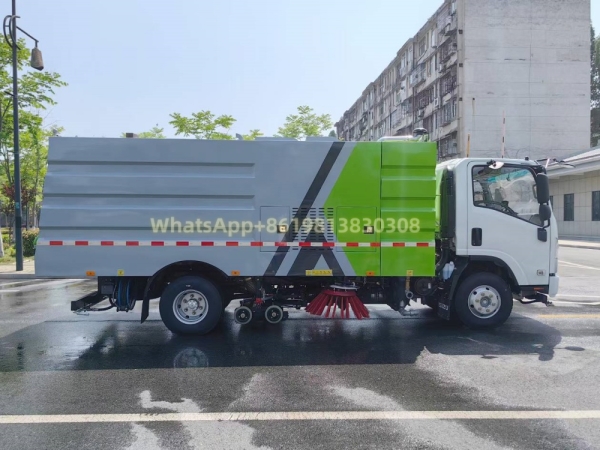

2.ISUZU 12T Vacuum Road Sweeper Truck picture
3. ISUZU Configuration of the upper part of the vacuum sweeper truck
It uses Yunnei 57 horsepower auxiliary engine, 5.0 high-pressure centrifugal fan, 50L high-pressure pump, Xiamen Nanchao automatic clutch, 1.5 cubic clean water tank carbon steel electrophoresis, 1.8 cubic stainless steel trash can. Center-mounted left and right vertical sweepers, rear suction cups, and a high-pressure gun rotating swing arm installed on the top of the box. The clean water tank has a volume of 1.5 cubic meters and the trash can has a volume of 1.8 cubic meters. A low water level alarm system is installed in the clean water tank, and a sewage tank self-overflow system is installed inside the trash can. The maximum operating time for a single full-load operation can reach 35 to 45 minutes. 9 auxiliary engines drive the fan and high-pressure pump to start working, combining high-pressure water spraying and suction sweeping.
4.Uses of Vacuum Floor Washing and Sweeping Trucks
Vacuum sweepers are primarily used for main street pavement cleaning, using high-pressure water to wash the pavement and then sucking the washed wastewater into a wastewater tank to clean the pavement.
But there are also a variety of uses, including:
Sidewalks: high-pressure reels can clean sidewalks.
Parking lots: clean parking lot pavement dust and gravel
Bike lanes: ensure bike lanes are clean and safe.
Construction sites: clean up rubble and dust after construction or during maintenance,
Industrial facilities: keep industrial environments clean and safe.
Mines: clean up scattered ore from recovery mines for recycling.
They are multi-purpose vehicles designed to keep clean in a variety of environments.
