Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |
Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck parameters:
| model | CLW5040TXSBSL | outer diameter | 5620*1750*2300mm |
| GVW | 4495kg | rated loading capacity | 545kg |
| curb weight | 3820kg | axle loading capacity | 1650/2845mm |
| front/rear suspension | 1190/1630mm | passengers | 3 |
| max speed | 80km/h | approach/departure angle | 21/5° |

Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck chassis parameters:
| model | EQ1045SJ16DC | brand | Dongfeng |
| wheelbase | 2800mm | tyre size | 185R15LT |
| front gauge | 1369mm | rear gauge | 1242mm |
| leaf spring number | 3/5 | fuel type | diesel |
| engine brand | Quanchai | engine power | 95hp |

Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck body configurations:
clean water tank volume 1.8m3, wast tank volume 2m3
tank material: Q235(stainless steel for choice)
57hp auxiliary engine
automatic clutch
maintenance-free fan
Hypermix electromagnetic valves
Liechima high-pressure water pump
Hypermix hydraulic cylinder
one-button operation.
maximum sweeping width 2000mm
two sweeping discs in the middle, and rear suction cup
The high pressure cleaning and sweeping truck is equipped with high-pressure flushing function
The entire truck's water spraying system consists of high-pressure guns, suction cup water spraying and suction cup left and right water spraying systems

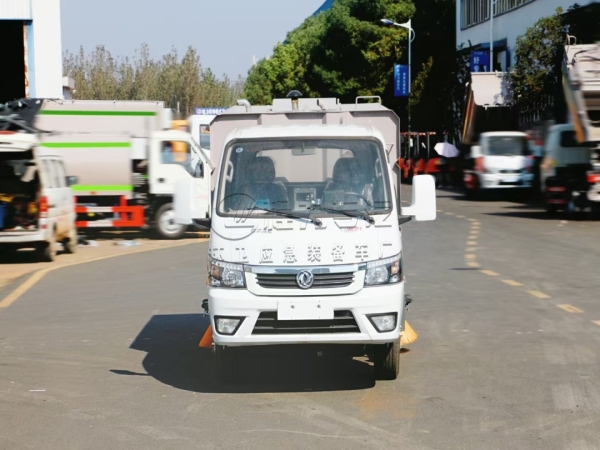

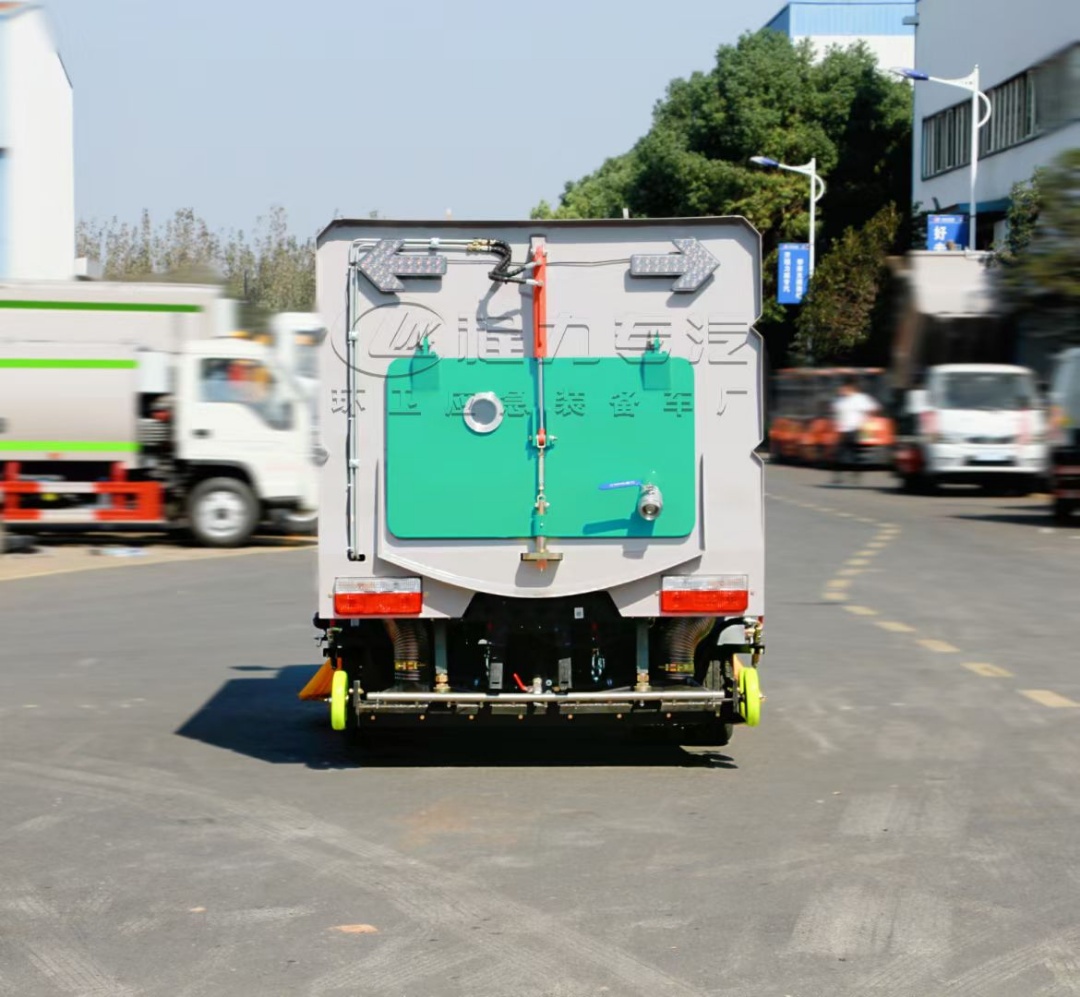

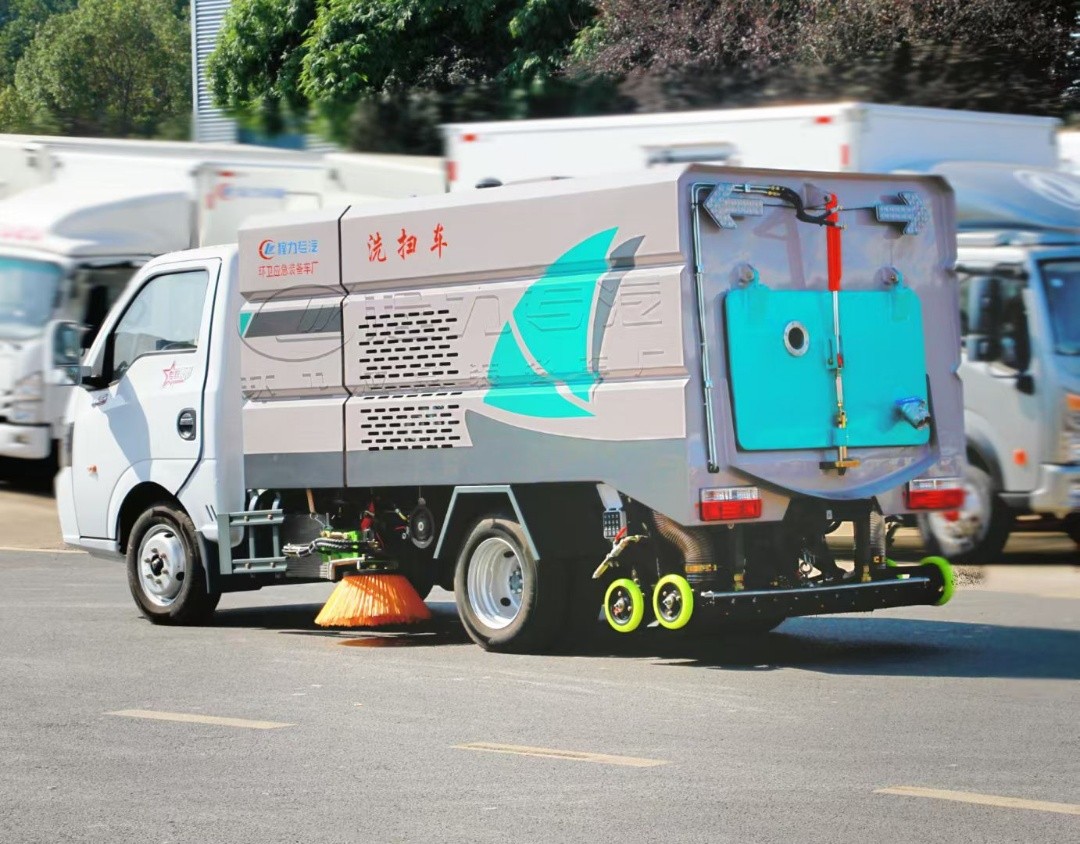

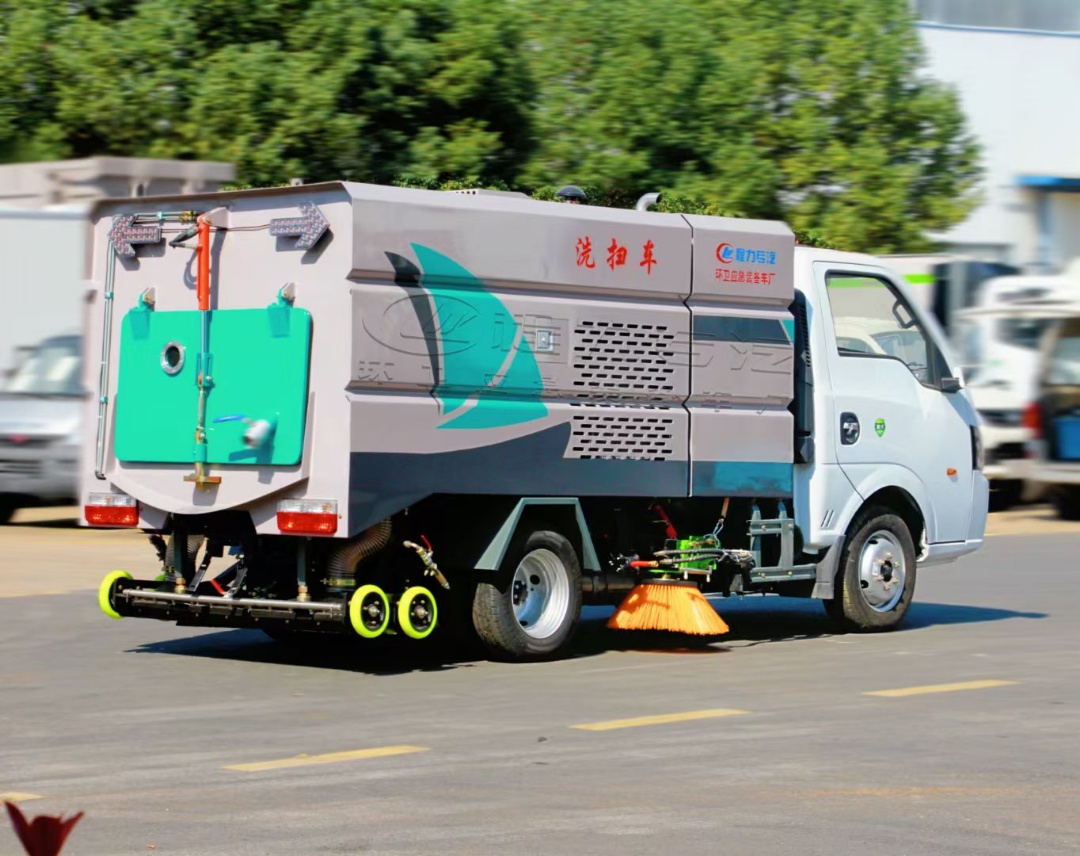

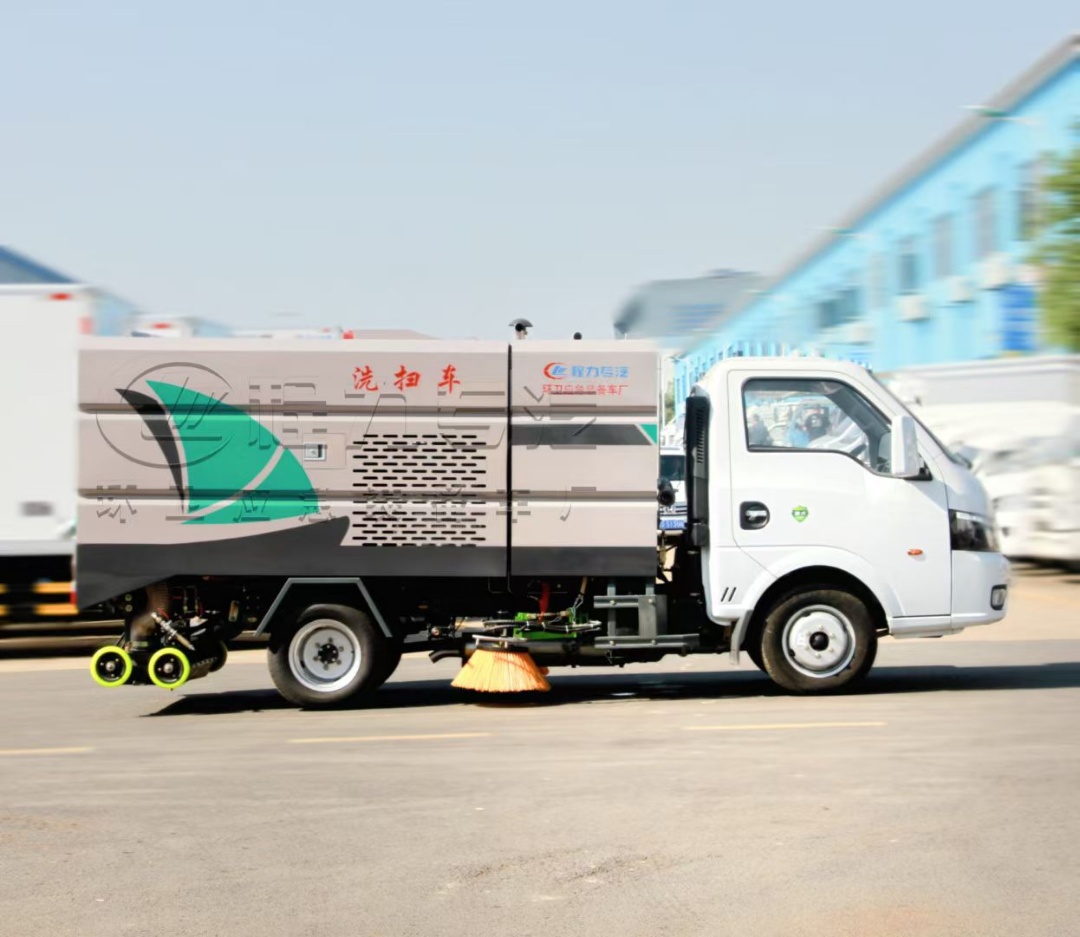

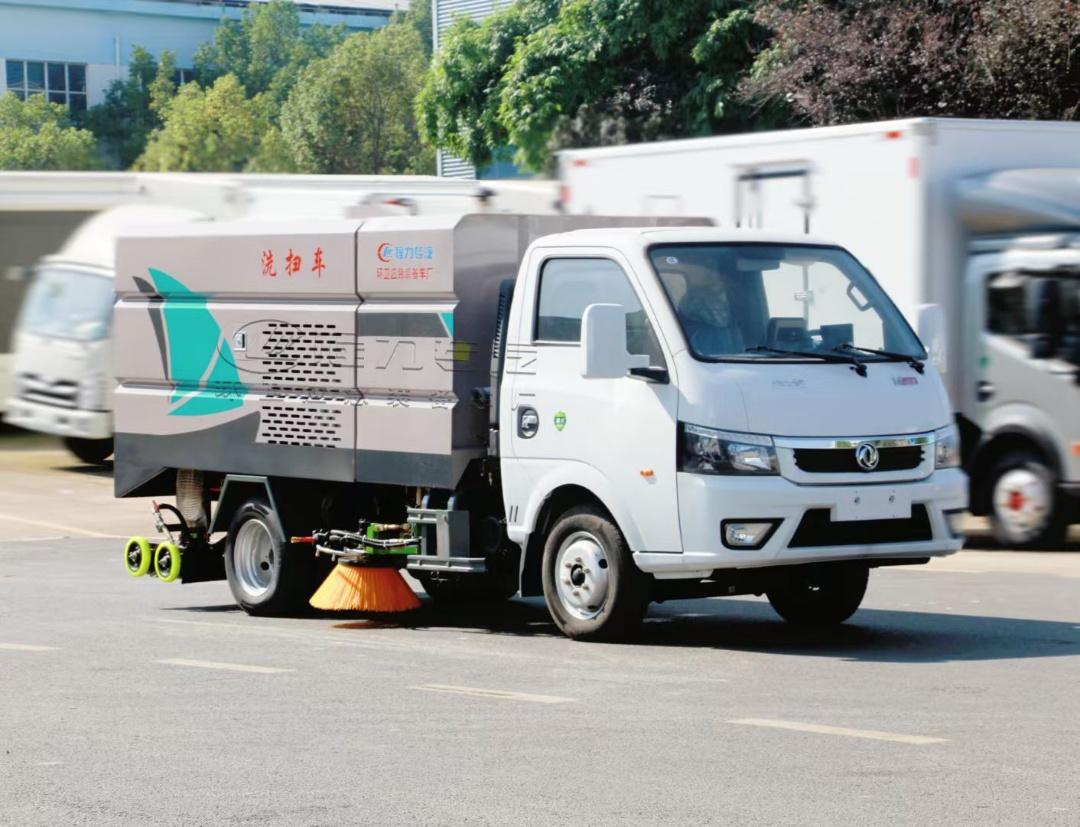

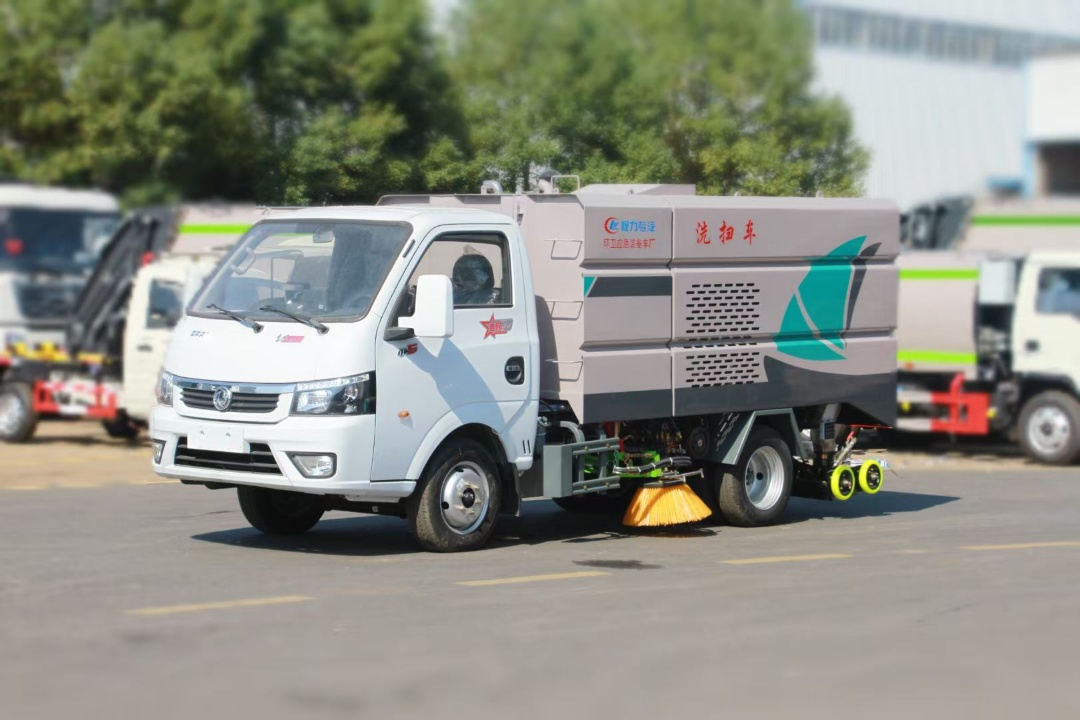

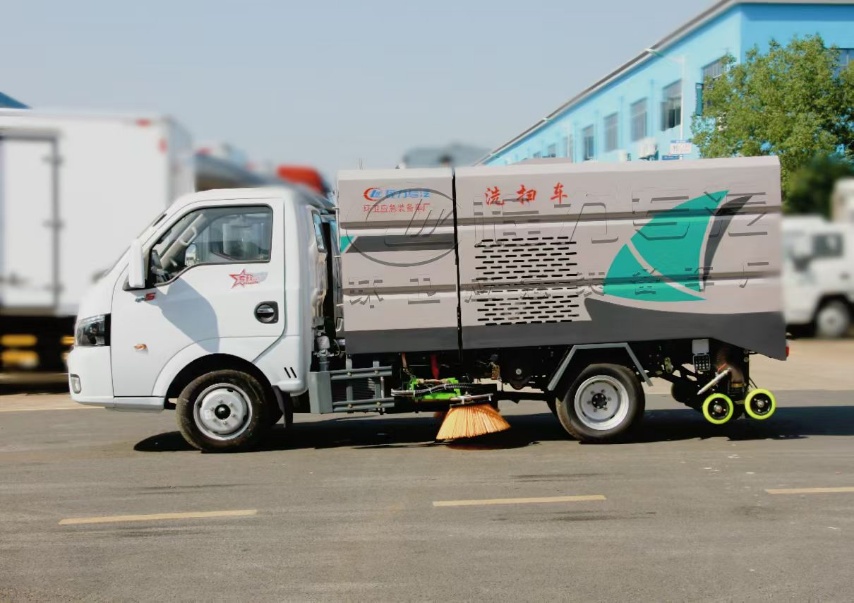

More pictures of the Dongfeng Tuyi 4m3 high pressure cleaning and sweeping truck:
