Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

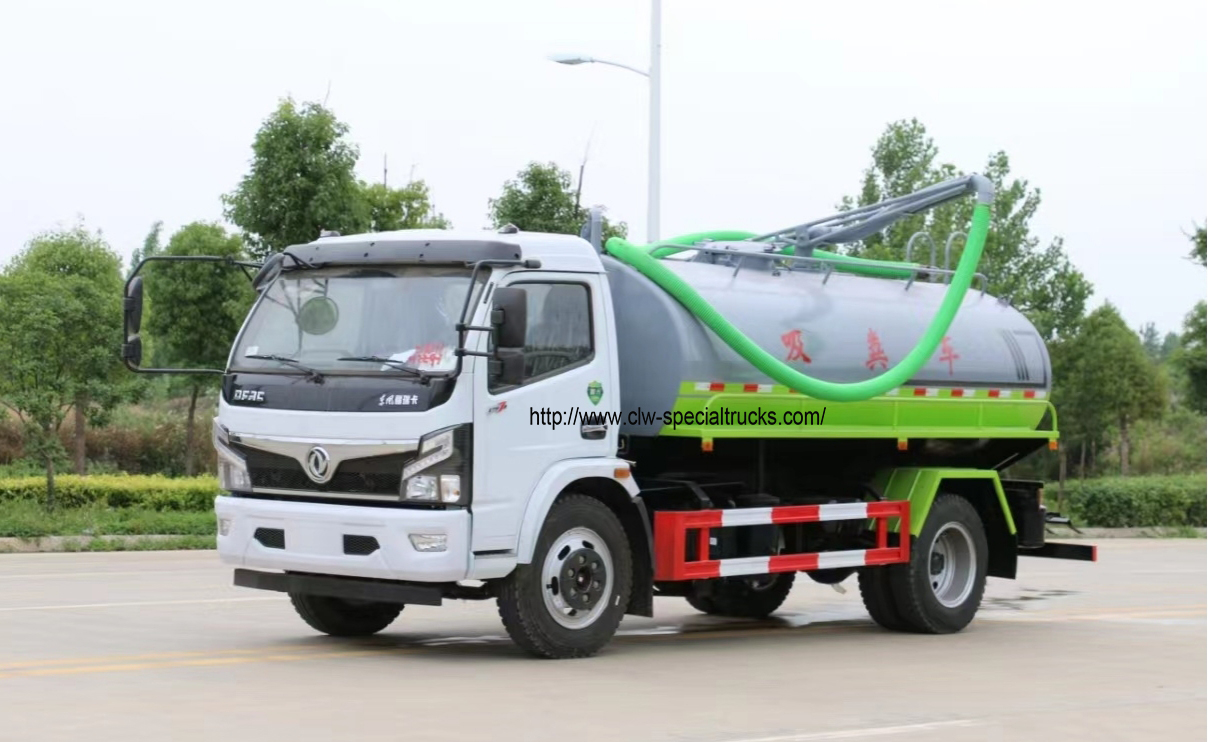

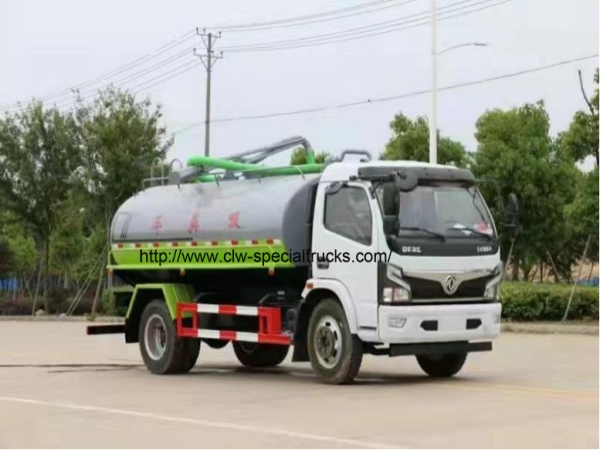

Picture of the 8m3 vacuum truck
2. Parameters of the 8m3 vacuum truck
| No. | Item | Main parameters |
| 1 | wheelbase | 3800mm |
| GVW | 11995kg | |
| rated capacity | 6200kg | |
| curb weight | 5600kg | |
| vacuum truck outer dimensions | 6900×2350×2850mm | |
| 2 | engine power | 120kw |
| 3 | power output | PTO |
| 4 | tank volume | 8.5m3 |
| tank material | Q235 | |
| tank thickness | ≥5mm | |
| rear door opening | hydraulic opening | |
| discharge port | 100~150mm | |
| safety protection | 1) Physical overflow protection, 2) Electronic overflow alarm can be installed | |
| 5 | vacuum pump type | Liquid ring suction pump SK-12 |
| Vertical suction | 8m | |
| Horizontal suction distance | 10m | |
| air flow | 720m³/h | |
| safety protection | 1) vacuum protection; 2) Air particle size filtration protection | |
| 6 | vacumm truck discharge system | The filtered sewage is discharged back to the sewer pipe through the suction port |
