Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

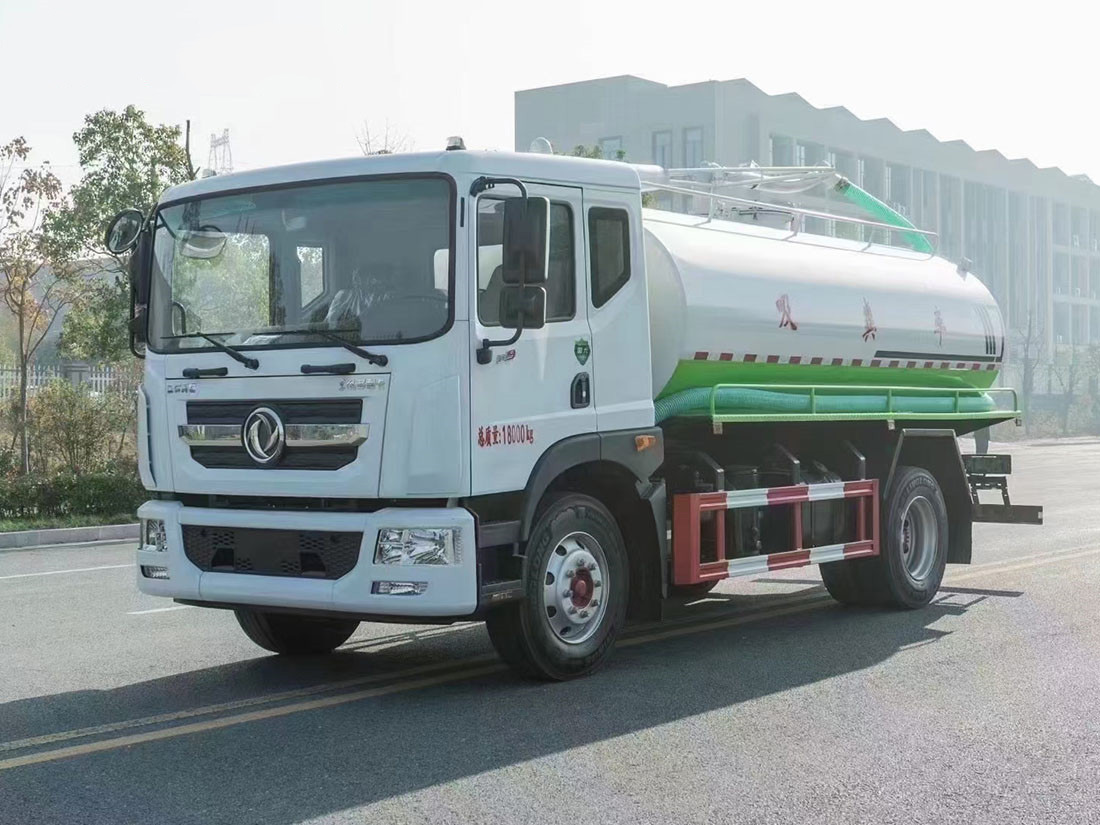

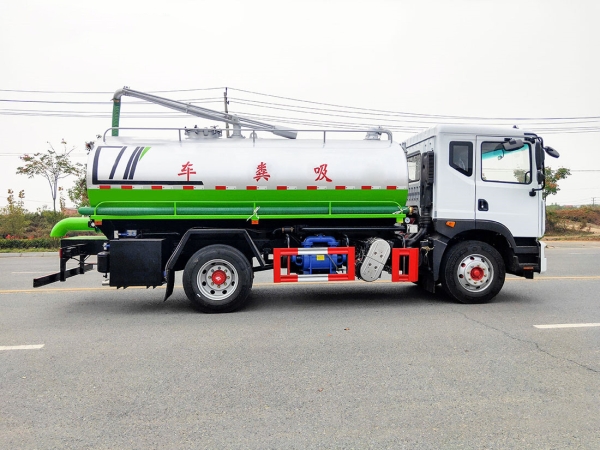

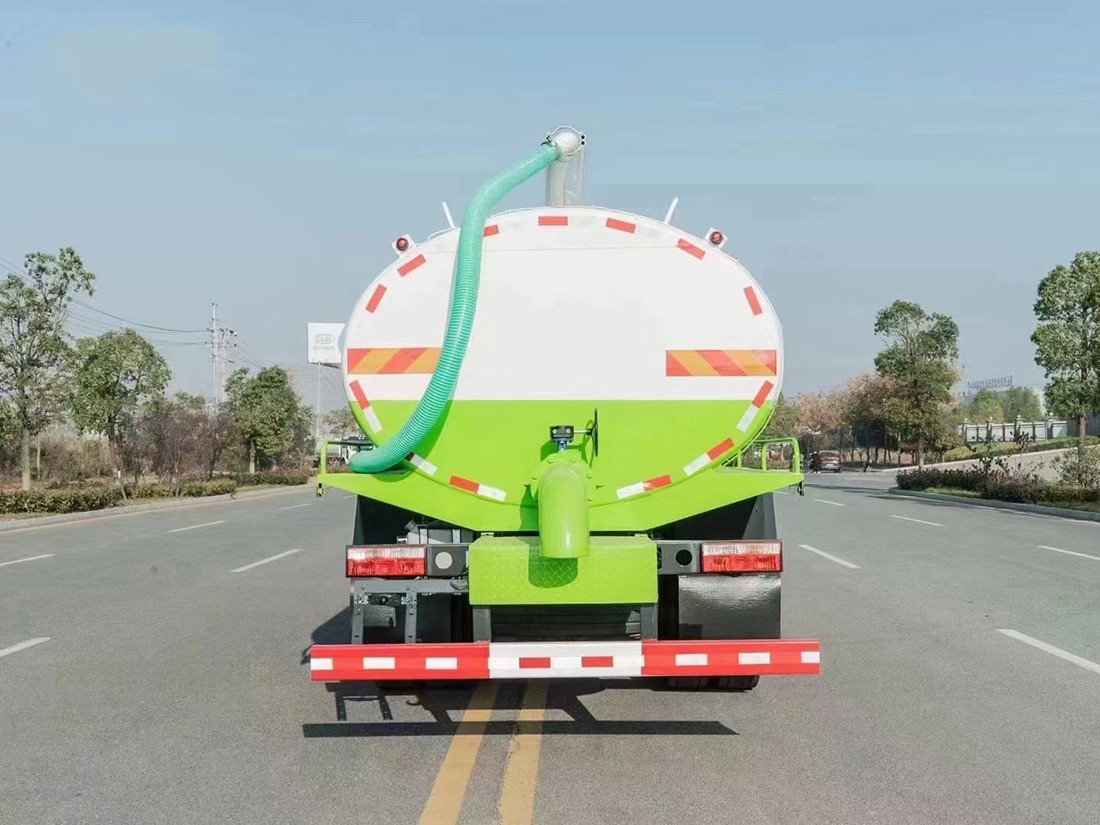

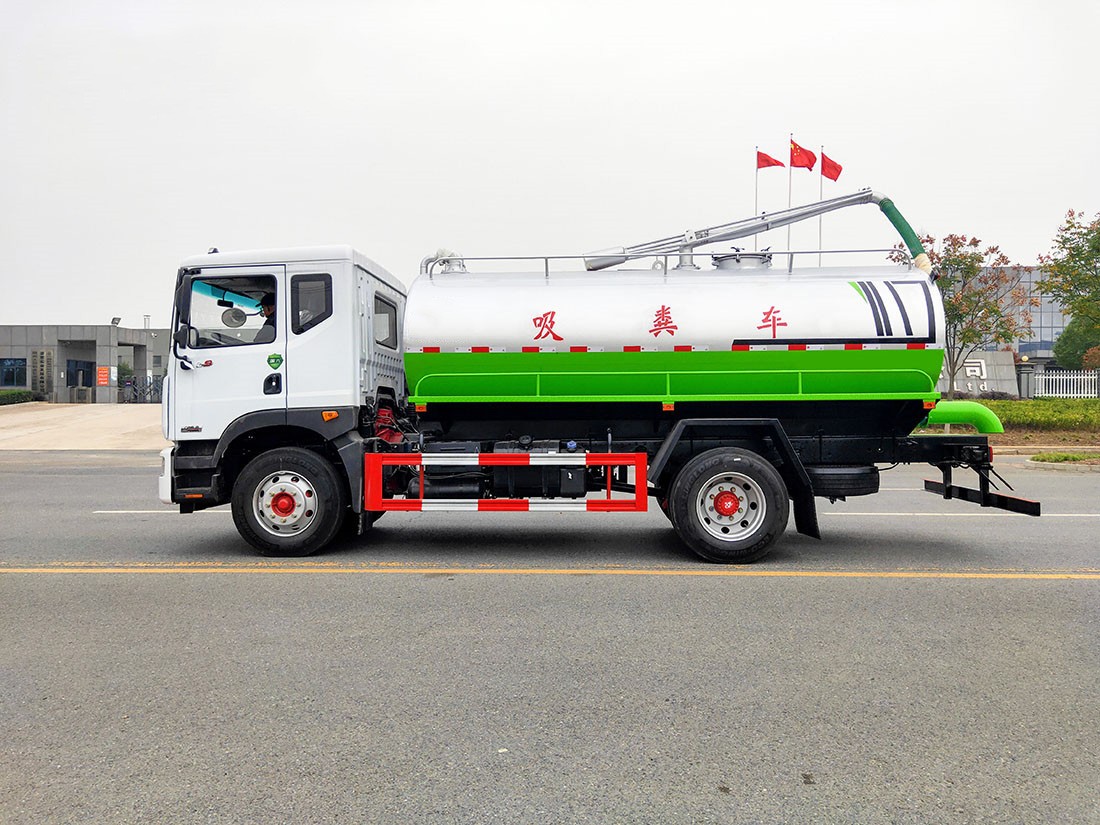

The sewage suction truck is composed of force extractor, transmission shaft, vacuum suction pump, pressure tank body, hydraulic part, pipe network system, vacuum pressure gauge, fecal window, hand washing device, etc., equipped with high-power vacuum suction pump and high-quality hydraulic system, the tank head is die-cast, the tank body can be opened back, and the double top self-unloading. The dirt in the tank can be dumped directly through the back cover, and it has the characteristics of high vacuum (greater suction than the suction truck), large tonnage, high efficiency and wider use.
Whole sewage suction truck parameters:
| model | CLW5180GXE6 | brand | CLW |
| GVW | 18000kg | rated loading capacity | 9770kg |
| curb weight | 8100kg | outer dimensions | 9650×2500×3300mm |
| axle number | 2 | wheelbase | 3950mm |
| axle lodaing capacity | 6500/11500kg | max speed | 105km/h |
others: 1, the effective volume of the sewage suction truck tank :12.8m3, the overall size of the tank (long × long × short axis)(mm):4700×2250×1550; The corresponding relation of vehicle length/wheelbase for (mm) : 8000/3950855 0/4500875 0/4700905 0/5000935 0/5300965 0/5600; 2, the side protection and the rear lower protection device are made of Q23** material, the side protection is welded connection, the rear lower protection is bolted connection, the rear lower protection size :150×50(mm), the height from the ground 450mm.3,ABS system manufacturer, Model: Jiaozuo Boruike ** Technology Co., LTD.,J ABS. This vehicle is a special operation vehicle for excreting, and the special device is a vacuum pump. Optional side protection structure. Optional cab with chassis. Optional chassis accessories, optional different shape styles. | |||
Chassis parameters of the sewage suction truck:
| model | EQ1185LJ9CDE | brand | Dongfeng |
| outer dimensions | 5950×2380×2845mm | tyre size | 295/80R22.5 18PR |
| tyre number | 6 | leaf spring number | 8/10+7 |
| front/rear track | 1862/1806mm | fuel type | diesel |
| emission standard | EURO VI | ||
| engine model | manufacturer | displacement | power |
| D4.5NS6B220 | Dongfeng Cummins Engine Co., LTD | 6200ml | 220hp |
