Product description |
|
|
Place of Origin |
SUIZHOU, CHINA |
|
Brand Name |
CLW |
|
Certification |
CCC, SGS, BV, DOT, GCC |
|
Model Number |
CLW5120 |
|
Payment & Shipping Terms |
|
|
Minimum Order Quantity |
1 |
|
Unit Price |
Negotiable |
|
Packaging Details |
naked,waxed,bulk ship,ro-ro |
|
Delivery Time |
30-35 days |
|
Payment Terms |
L/C, D/A, D/P, T/T, Western Union, MoneyGram |
|
Supply Ability |
500 Unit/Month |

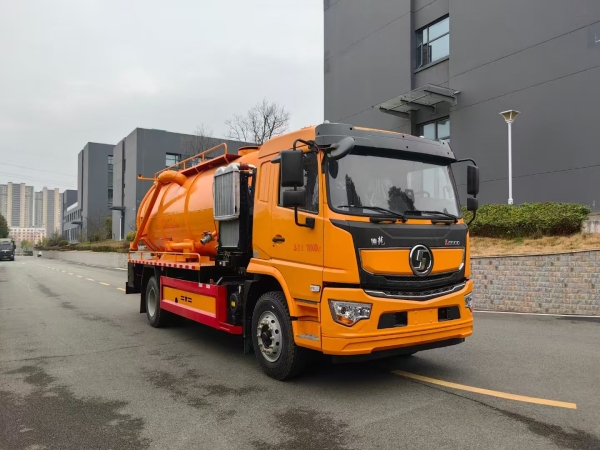

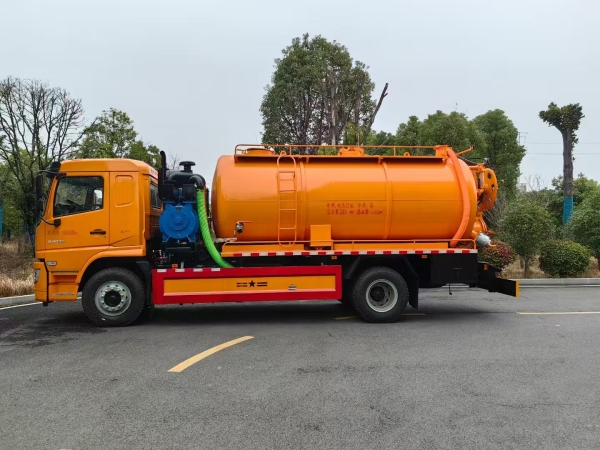

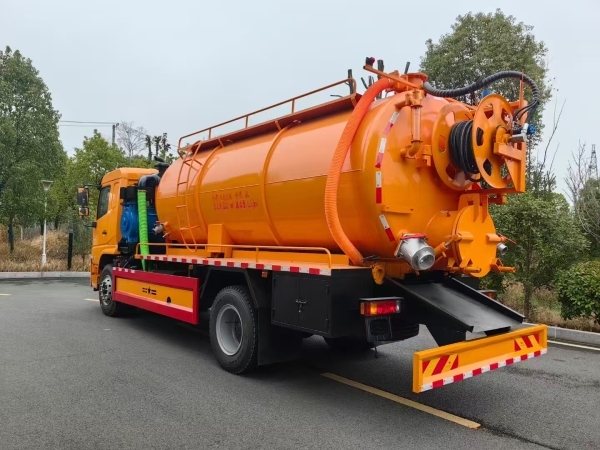

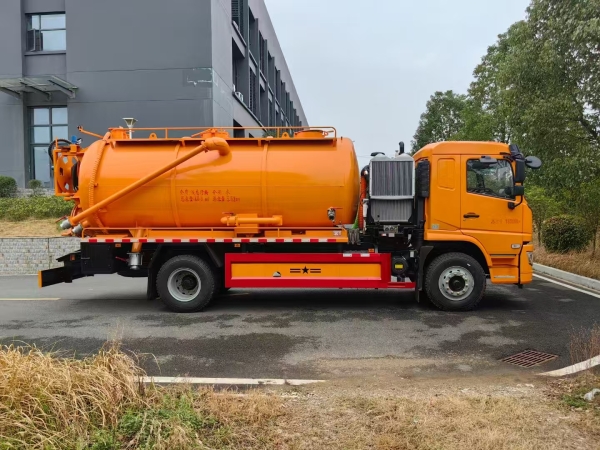

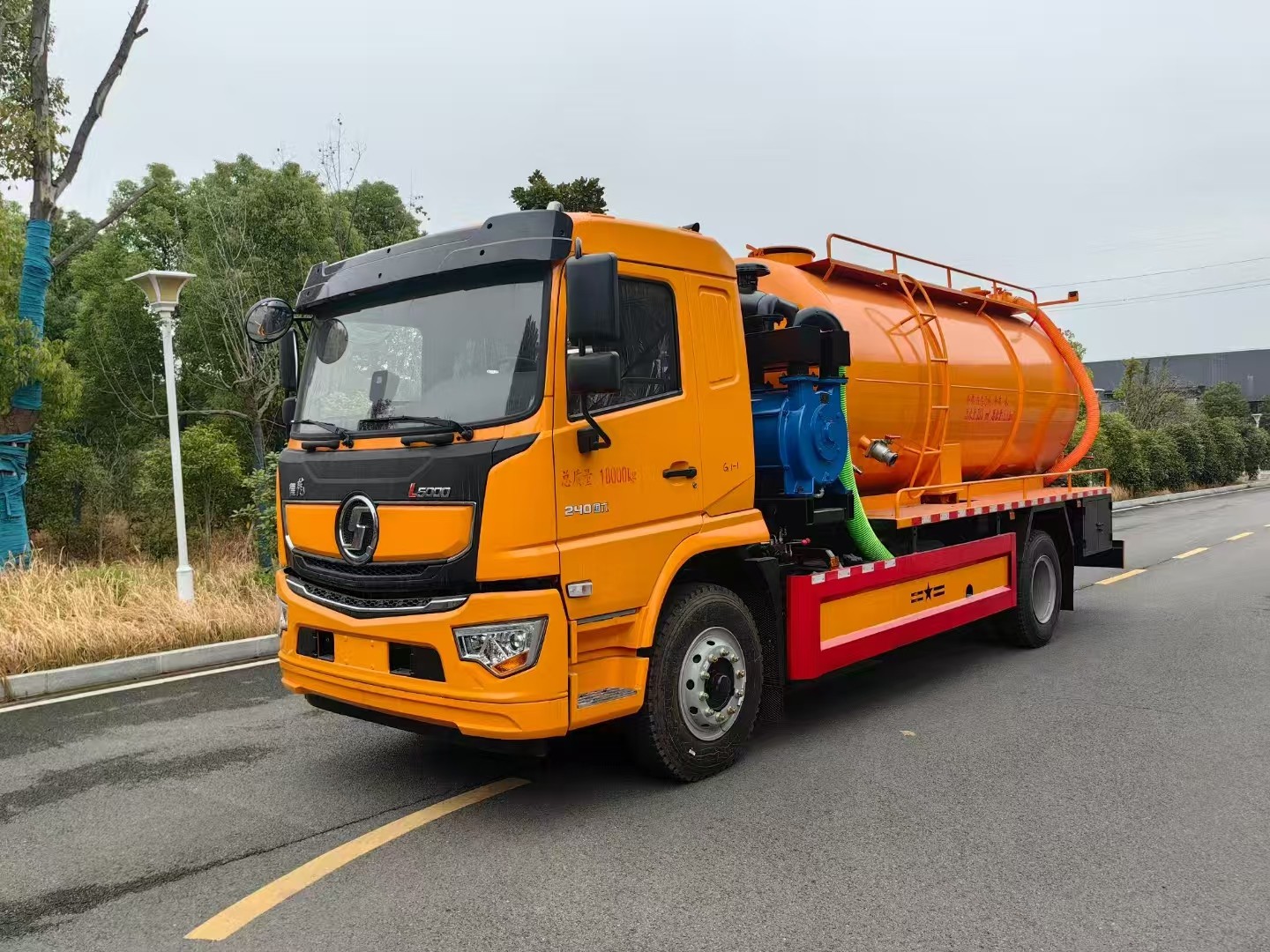

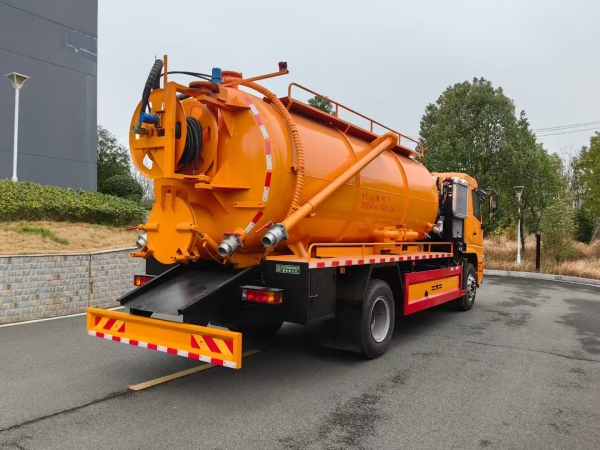

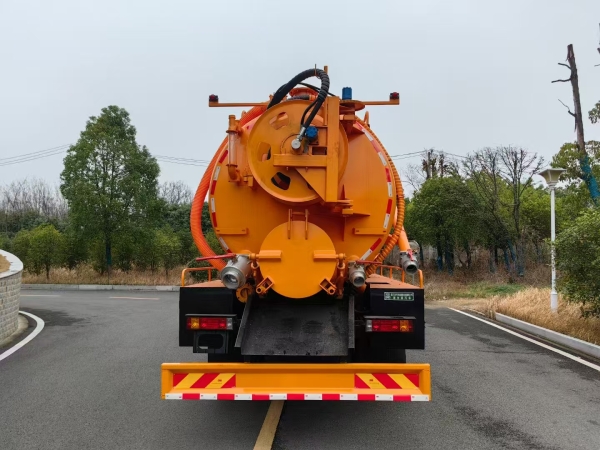

High pressure cleaning and suction truck is a kind of special truck which integrate the function of suction and high pressure cleaning function. It uses auxiliary engine to drive high pressure pump and hydraulic system which can take the most usage of high pressure to perfect the cleaning work.
Parameters of the chassis:
| brand | Shaxman L5000 | wheelbase | 4700mm |
| GVW | 18000kg | rated loading capacity | 10670kg |
| dimensions | 8440x2550x330mm | engine power | 220Hp |
The high pressure cleaning and suction truck total tank volume is about 15m3 which includes 4m3 clean water tank and 11m3 sewage tank volume. The tank thickness is 8mm.
On both side of the clean water tank there is one fire-hydrant inlet and under the tank there is one water outlet.
High pressure pump PINF 350L/min
Vacuum pump 2BE-204， the flow capacity is 40~5800m3/h
High pressure cleaning hose real 60m* 25mm

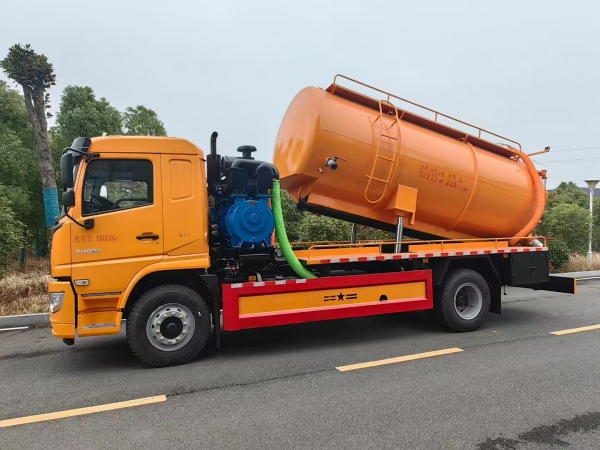

The high pressure cleaning and suction truck tank can be hydraulically lifting.
The rear cover of the tank can not be opened.
The rear cover with a DN600 small hole which can be opened.
One DN100 suction valve and one DN150 suction valve at the rear
With one DN100 suction valve at side.
