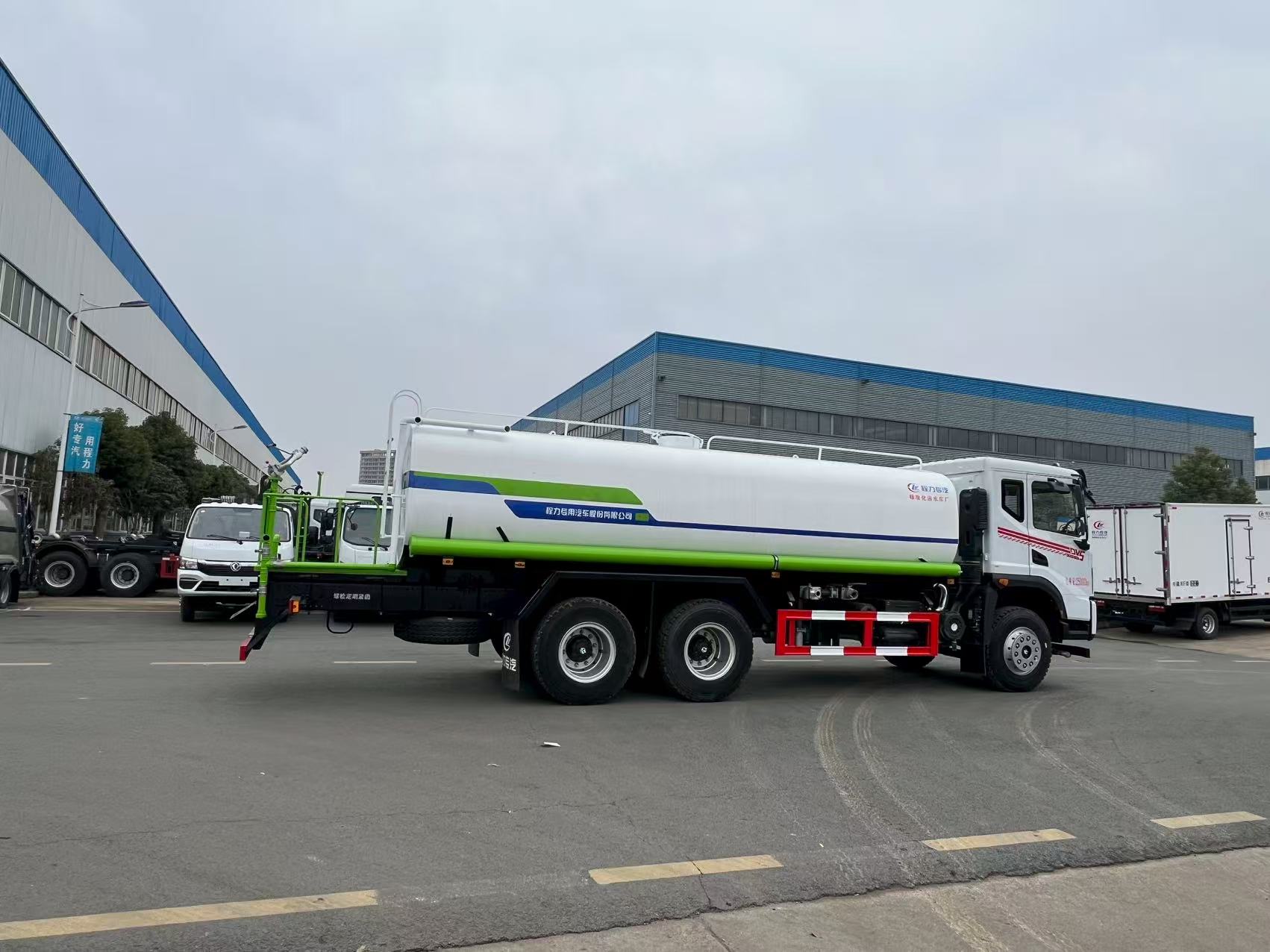

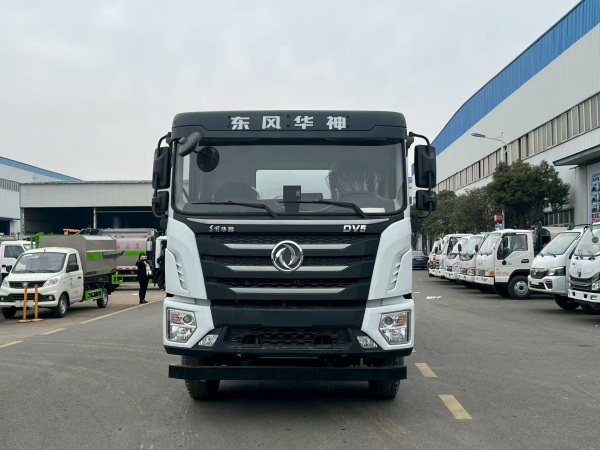

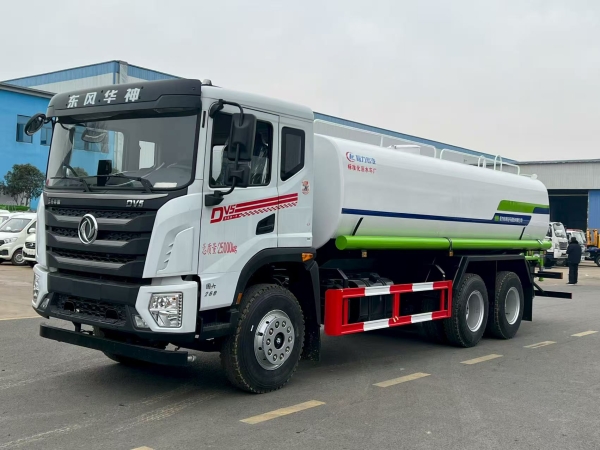

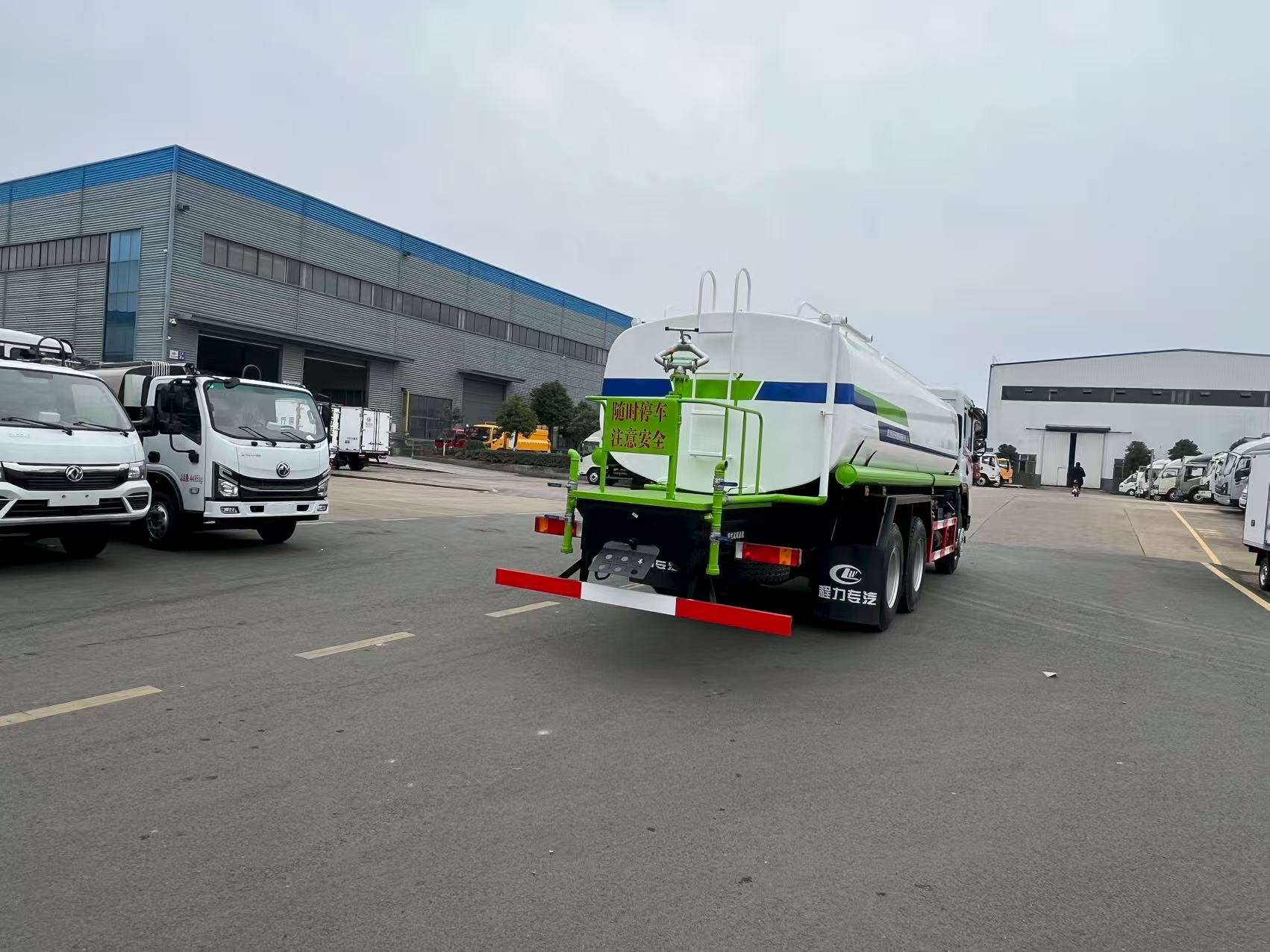

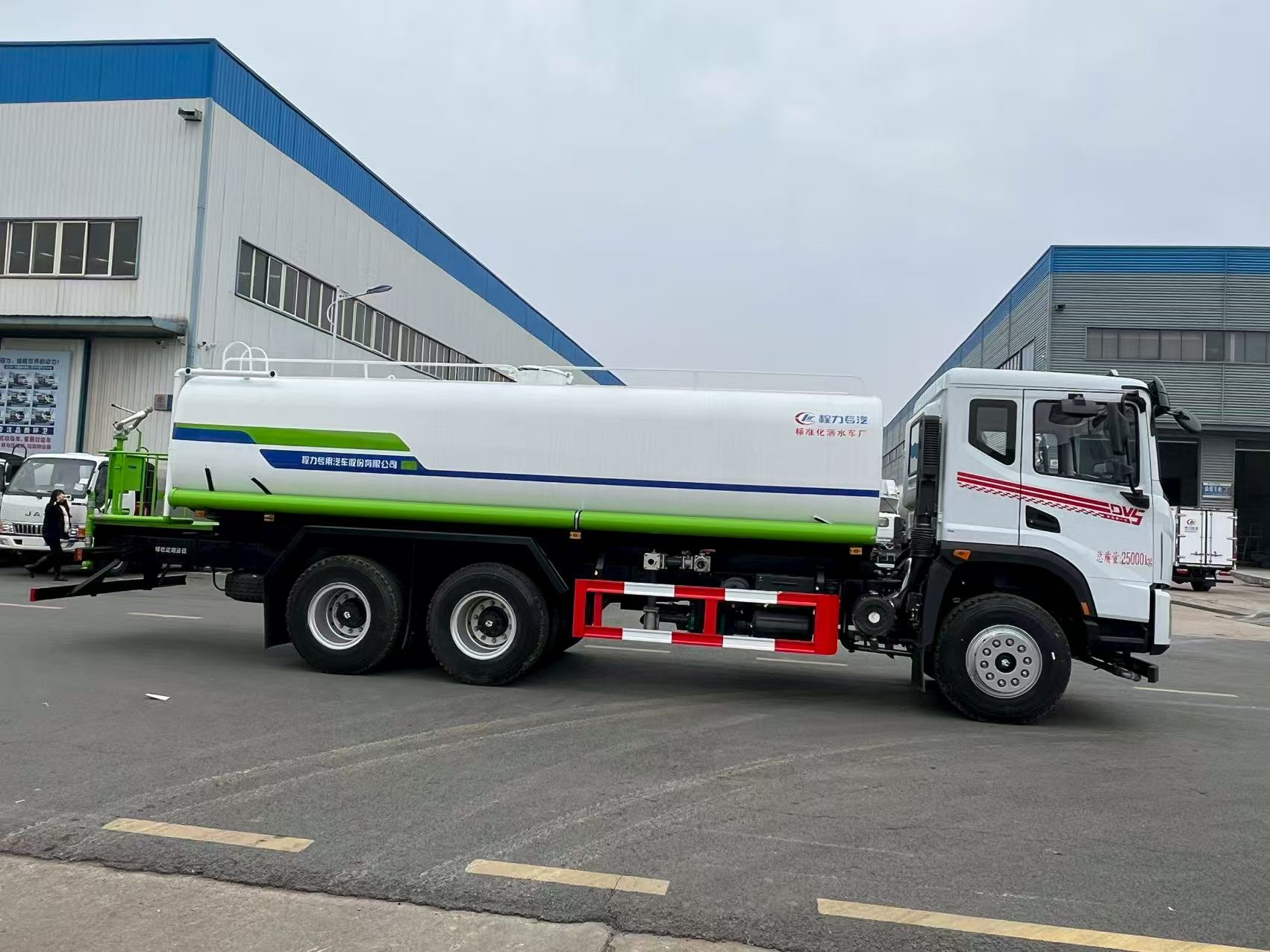

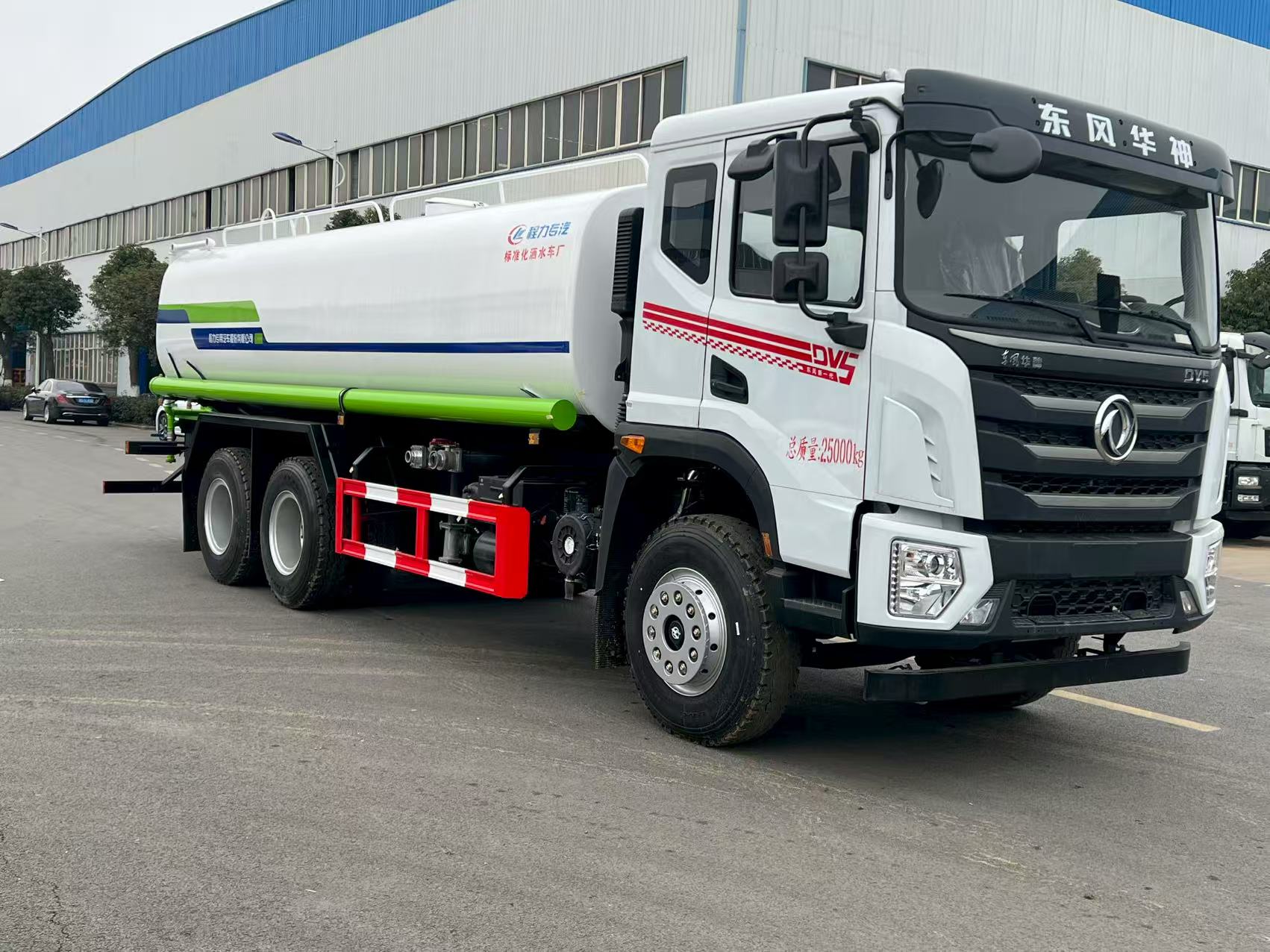

Dongfeng Huashen 20m3 water spraying truck main parameters:

Overall Model: CLW5250GPS6DN

Chassis Model: EQ1250GL6DJ

Chassis Configuration: Wheelbase 4350 + 1350mm

Engine: Cummins 260hp

Transmission: FAW 8-speed (with power take-off)

Tires: 11.00R20 18PR

Fuel Tank: 220L iron fuel tank

Cab: New Huashen DV5 half-cab

Other Configurations: Electric windows, remote lock, original air conditioning, air suspension seat, driving recorder, 5T front axle, double 10T rear axle.

Dongfeng Huashen 20m3 water spraying truck body configurations: New 3.0 version coating, tank volume 20m3, tank material Q235, partition thickness 4mm, tank carbon steel thickness 5mm, head thickness 5mm. Large

diameter straight-through ball valve, optional aluminum alloy three-way, thickened main pipeline (76mm) sprinkler function, front spray, rear spray, side spray, standard 60/90 high-power sprinkler pump, self-priming and self-discharging, with fire interface.

Dongfeng Huashen 20m3 water spraying truck features：

Road surface flushing: The water truck can use the front flushing nozzles to wash away the dust and garbage on the road surface, improving the cleanliness of the road.

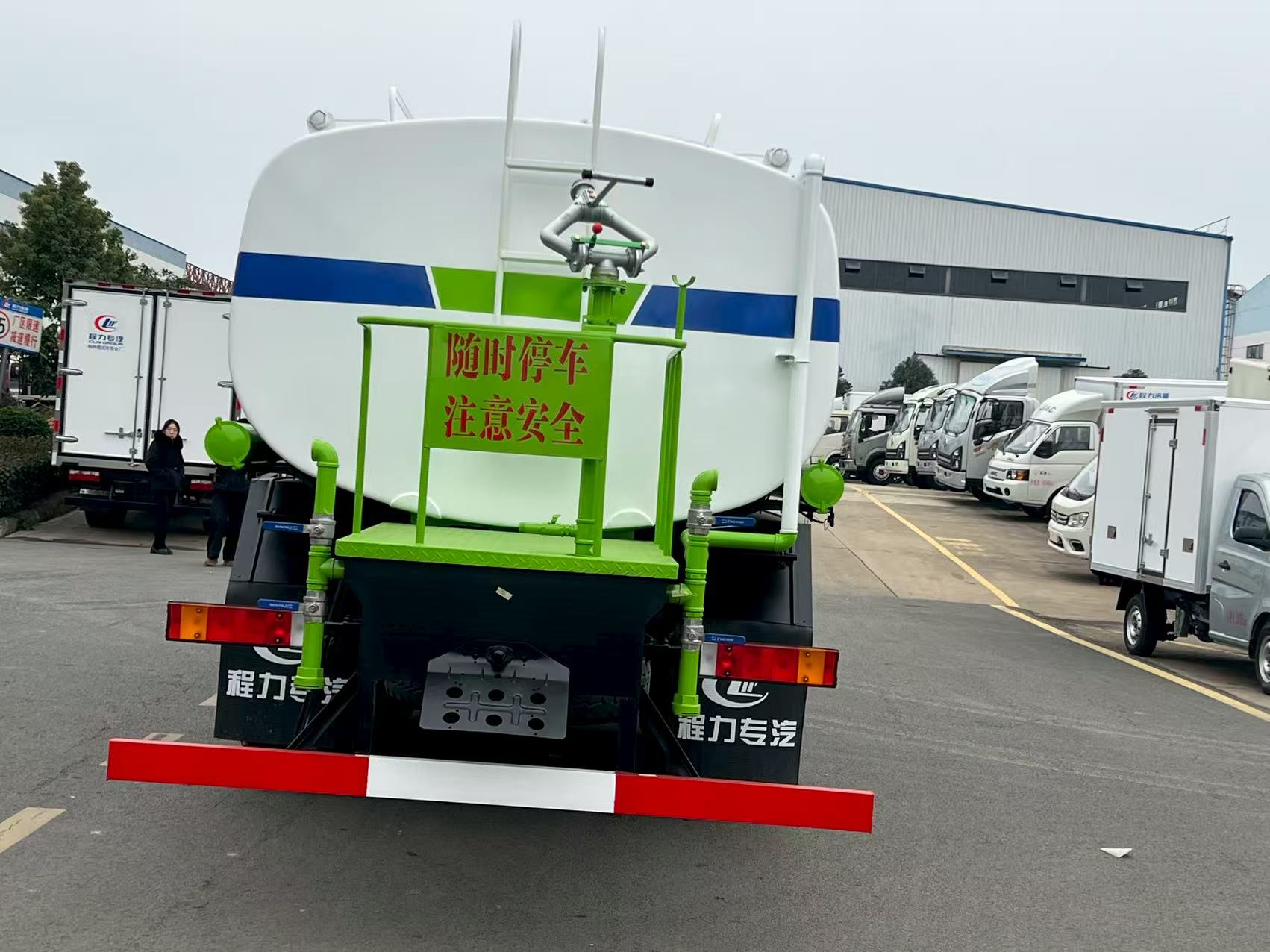

Greening irrigation: The water spraying truck rear sprinkler and side sprayer functions can water the green belts on both sides of the road, promoting plant growth.

High-pressure water cannon: The high-pressure water cannon on the water truck can be used for watering greenery or emergency firefighting, with a range of up to 25m, suitable for various spraying needs.

Operation vedio of the water spraying truck:
