Dongfeng 9m3 water sprinkler truck configurations:

Model: CLW5120GPSE6

Chassis Announcement: EQ1125SJ8CDC

Chassis Configuration: Wheelbase 3800mm, Engine: Yunrei 150hp, Transmission: Wanliyang 6-speed, Tires: Tires 8.25R20/16PR, Fuel Tank: Fuel tank 80L

Cab: New white single-row cab

Other Configurations: Electric windows, remote key, multi-function steering wheel, original air conditioning, anti-lock brakes, 2.7T front axle, 5.5T rear axle

Dongfeng 9m3 water sprinkler truck superstructure Configuration: New 3.0 version coating, actual tank volume 9.2m3, material: Tank uses Q235, partition thickness 3mm, tank carbon steel thickness 4mm, head thickness 5mm. Large-diameter direct-through ball valve, Sprinkling Function including Front spray, rear discharge, side spray, tail greenery cannon. Optional aluminum three-way, thickened main pipeline (76mm)

Features of the Dongfeng 9m3 water sprinkler truck:

The Dongfeng 9m3 water sprinkler truck adopts Dongfeng Furuica chassis with engine 150hp, the power is strong enough to support different positions of the water spraying functions.

The oval shape of the tank can hold more water compared with square tank.

The rear part of the Dongfeng 9m3 water sprinkler truck is a large platform, there is enough space for different kinds of tools, also optional choice water cannon can be added.

The pipeline of the Dongfeng 9m3 water tank truck adope large flow pipeline with diameter 76mm, this makes the water pressure large the spraying effect better.

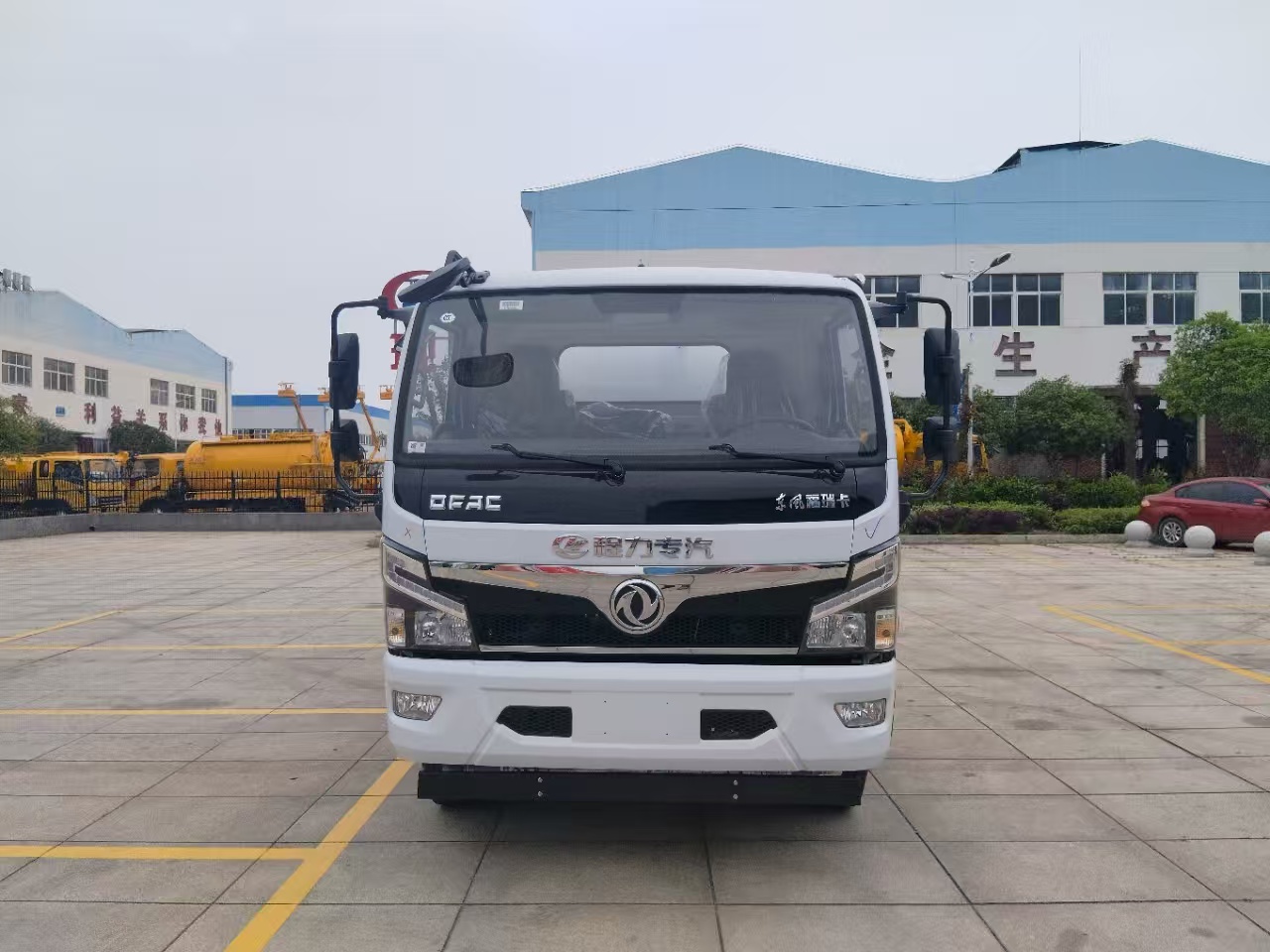

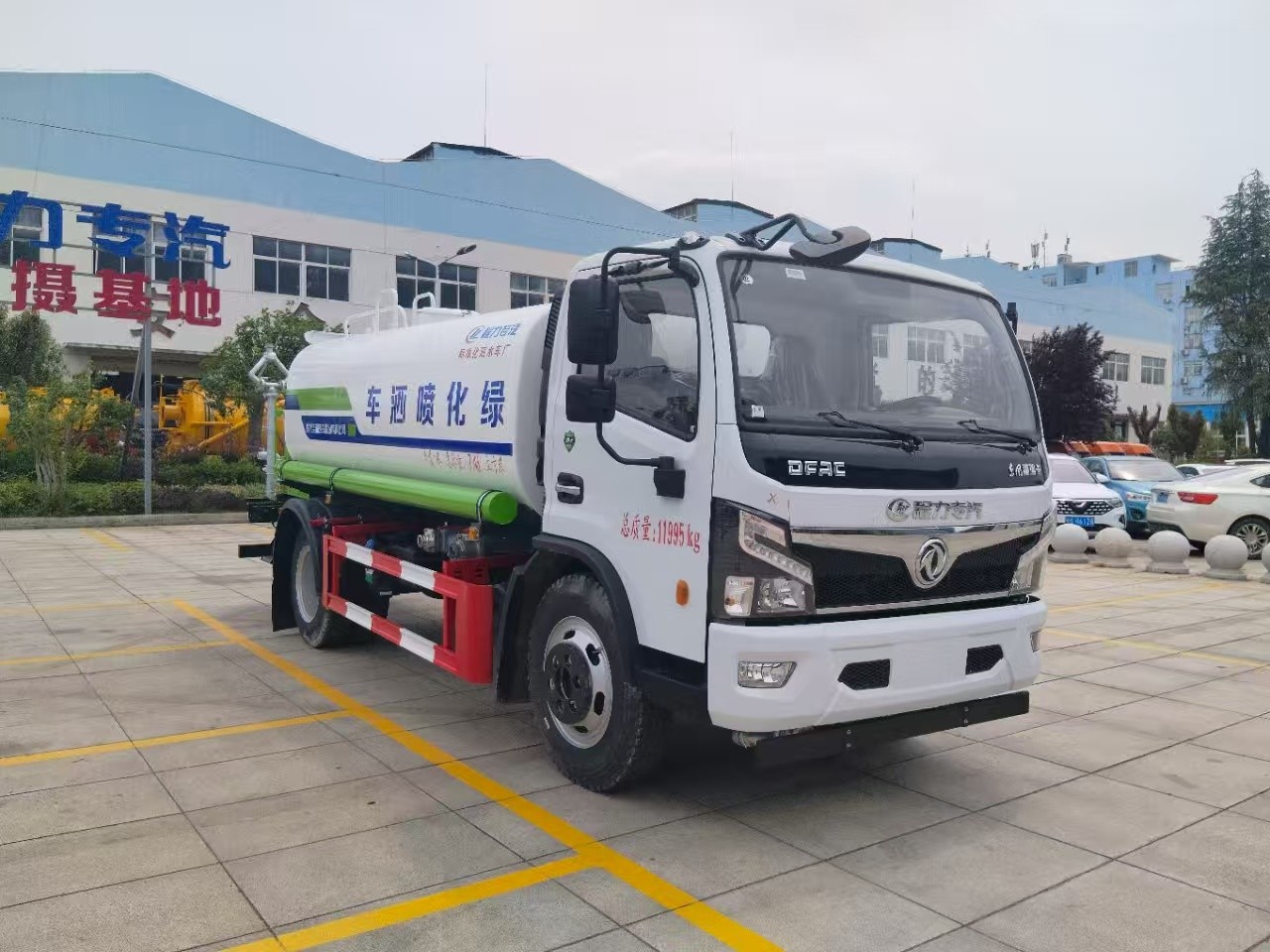

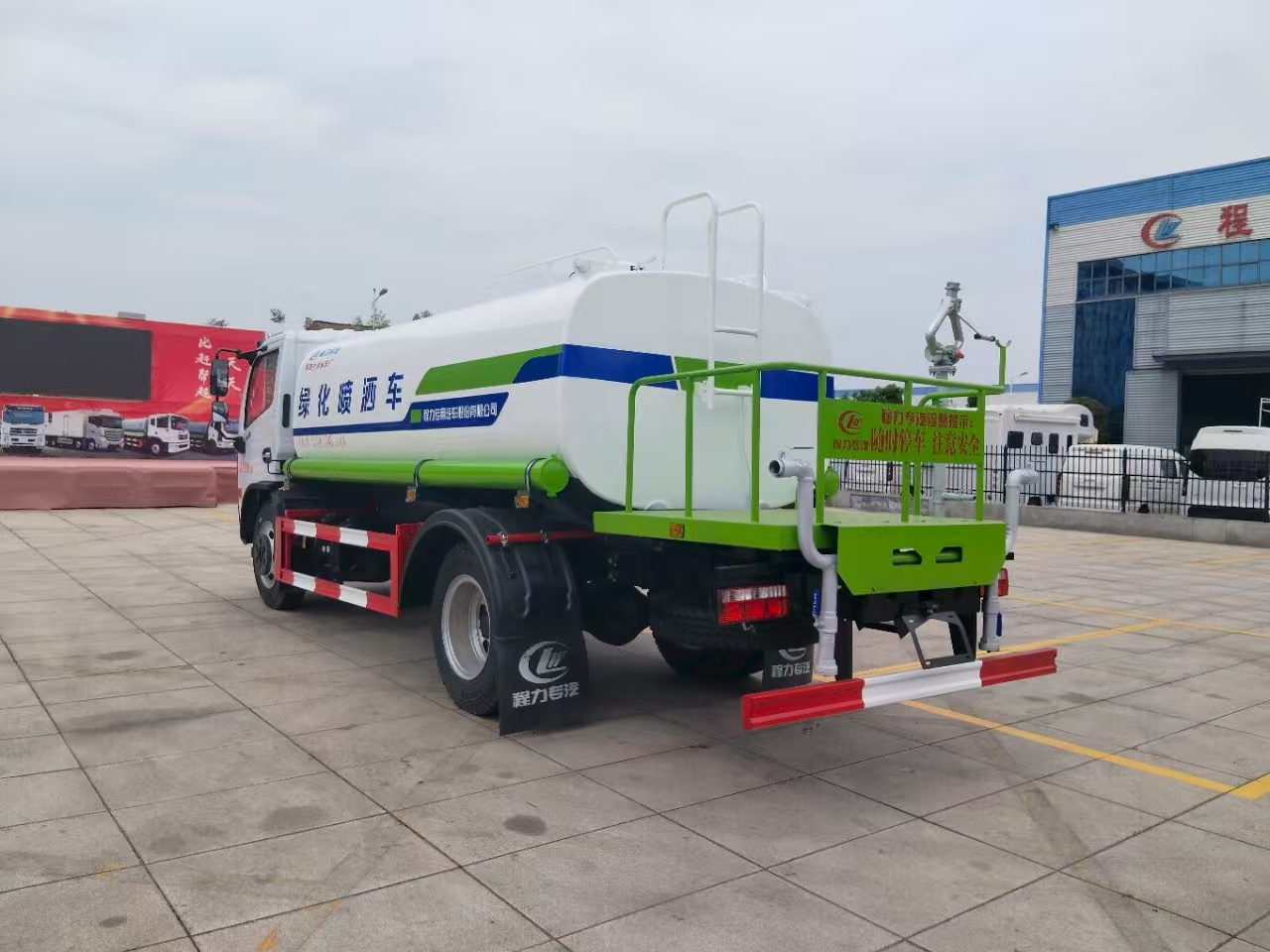

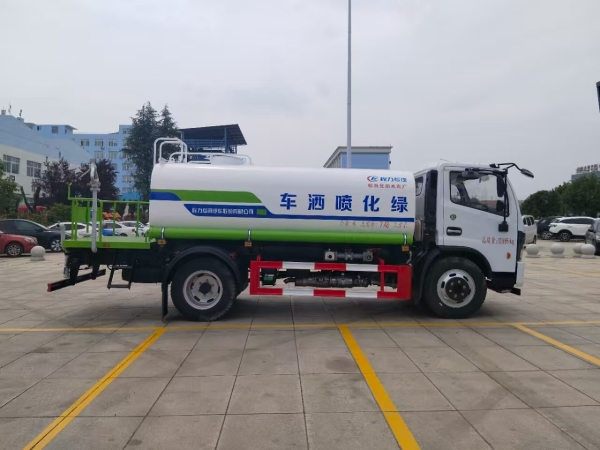

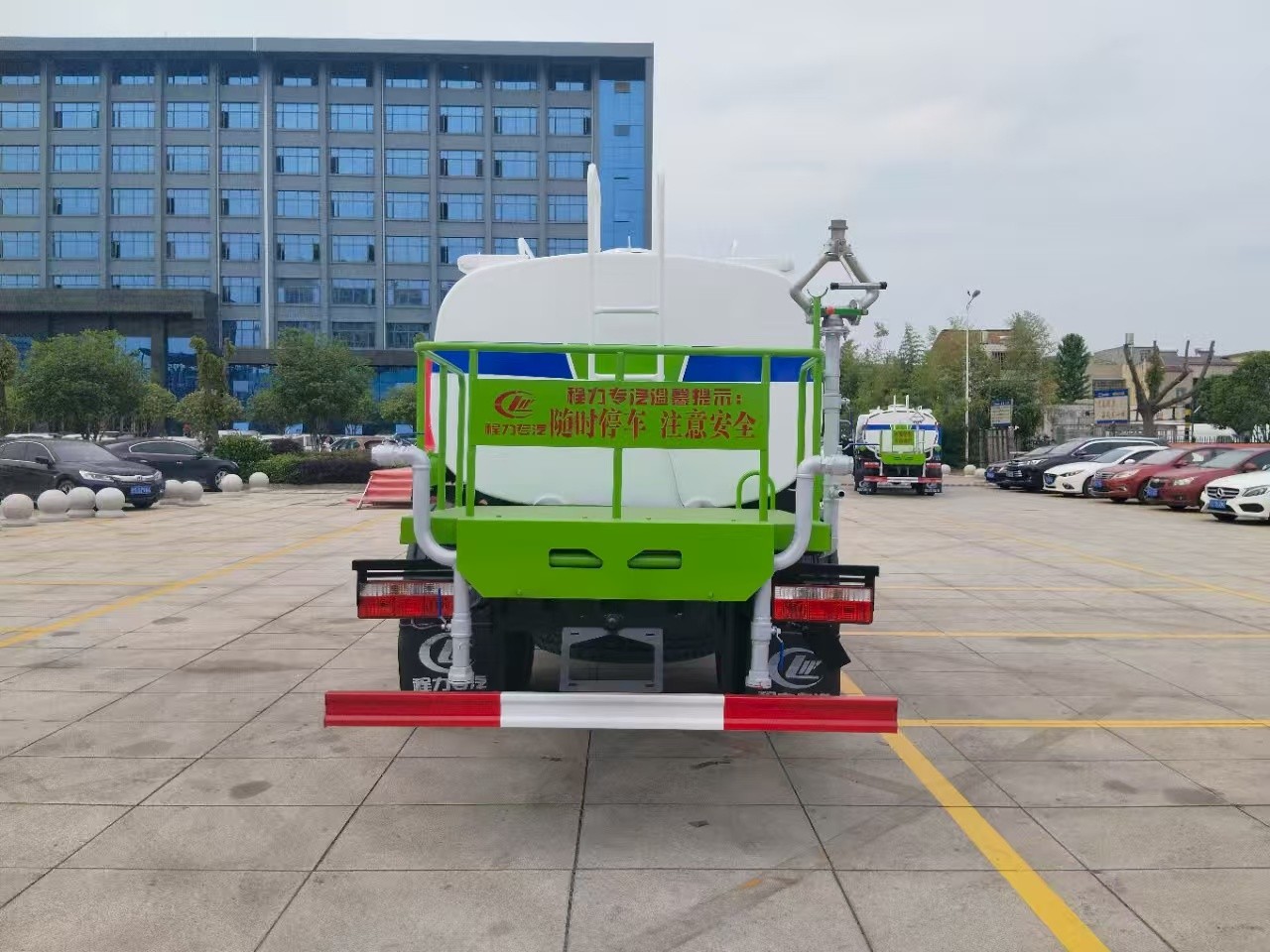

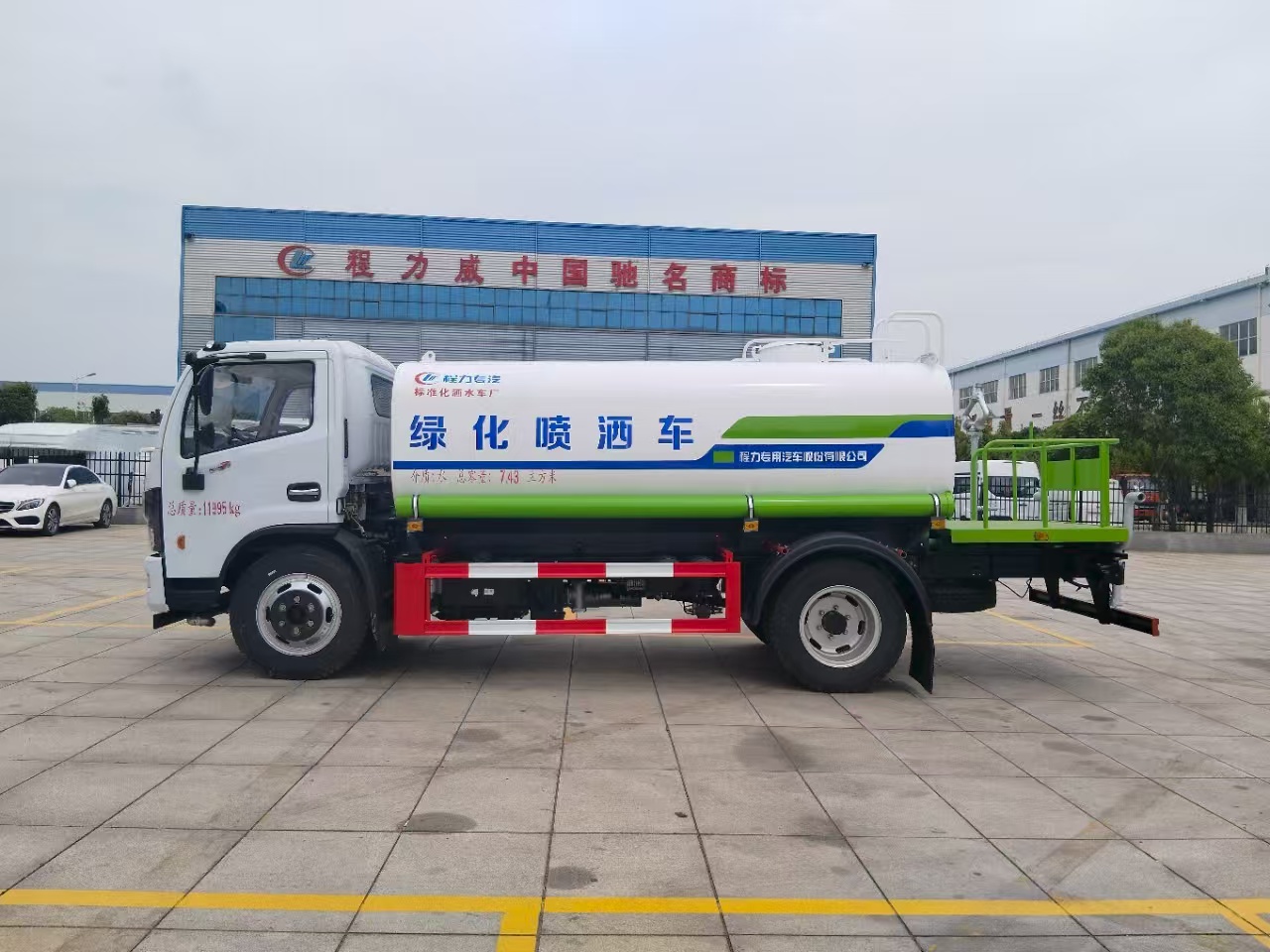

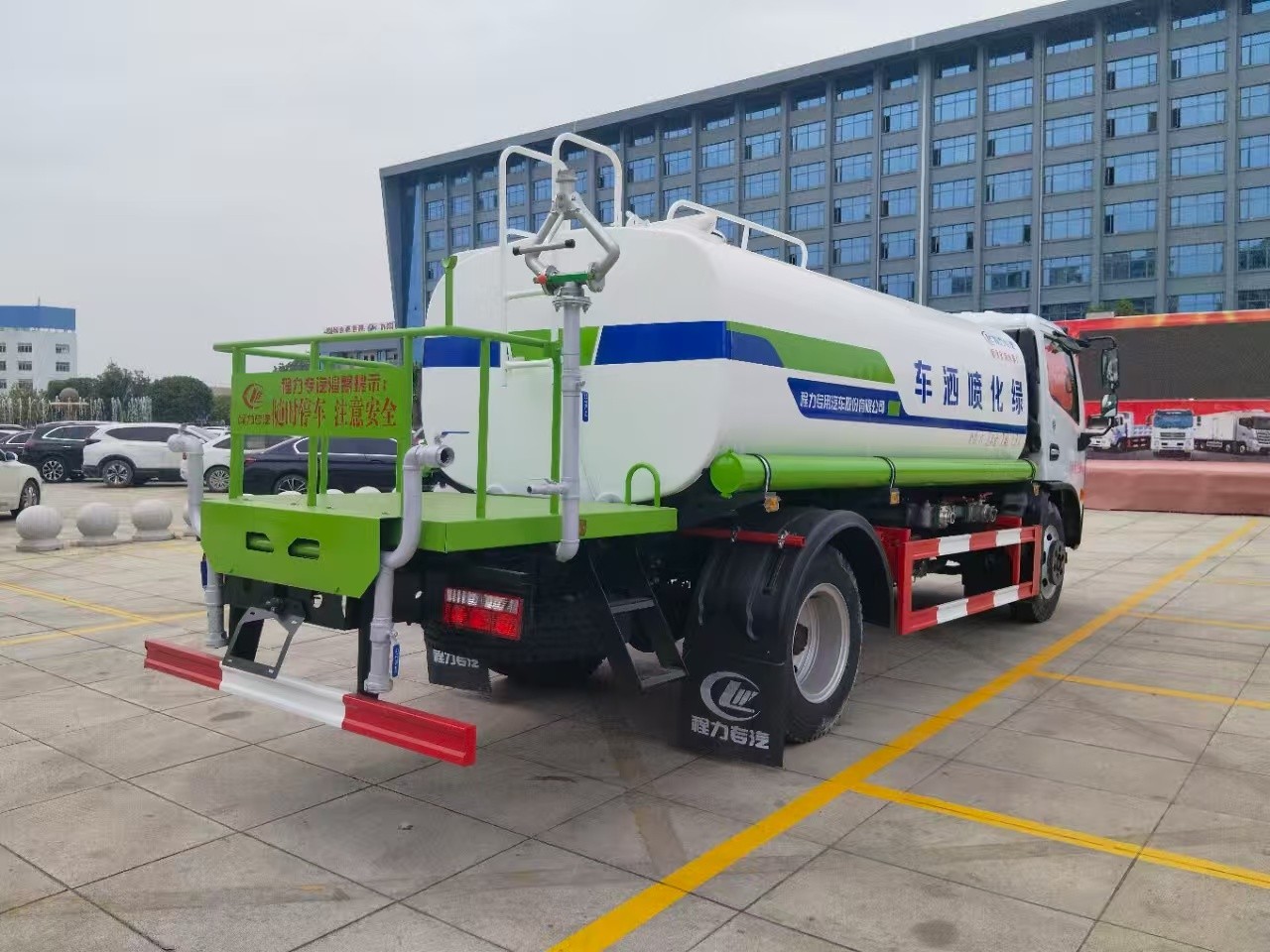

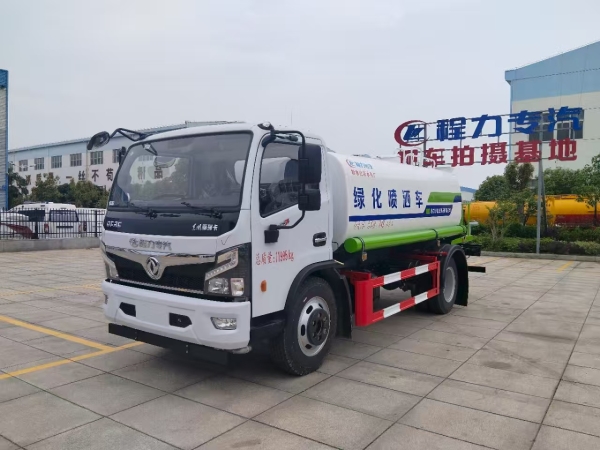

Water sprinkler truck spraying effect showing:
