Vehicle model: CLW5160GPSSDP

Chassis model: SX1160GP6411

Wheelbase: 3950mm

Engine: Yuchai 170hp, Yunnei 177hp

Transmission: Fast 8-speed (with power take-off)

Tires: 9.00R20/16PR tires

Fuel tank: 130L iron fuel tank

Cab: X9 half-cab/2120 cab

Chassis Other configurations: Electric windows, central locking; clutch assist; 100Ah maintenance-free dual batteries; frame 861x232/6+4 double-layer, 145/3.2T front axle, 145/8T rear axle

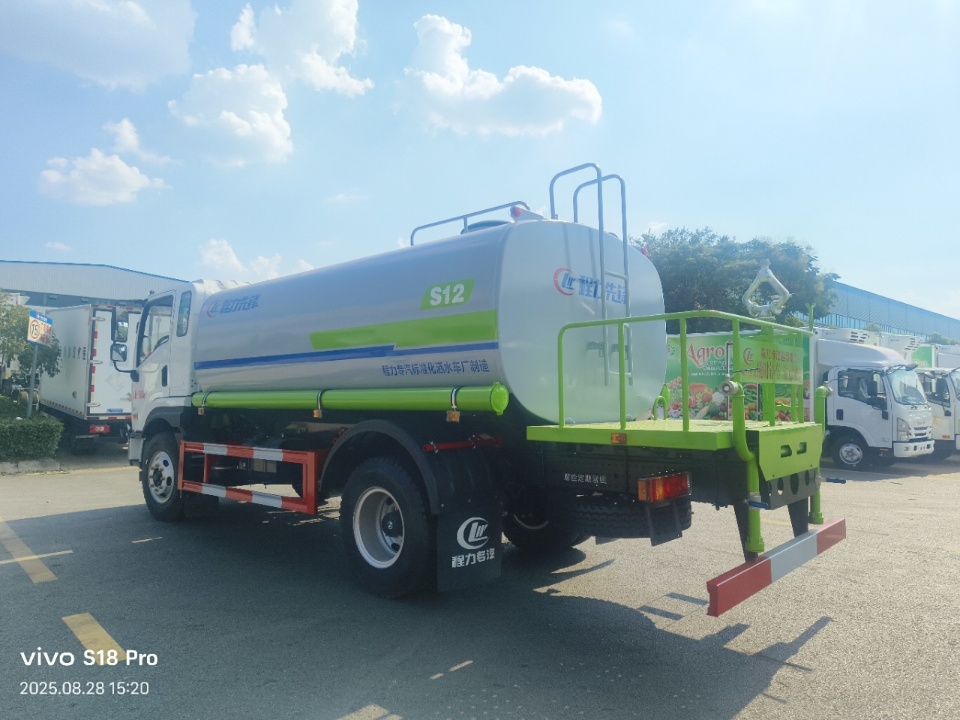

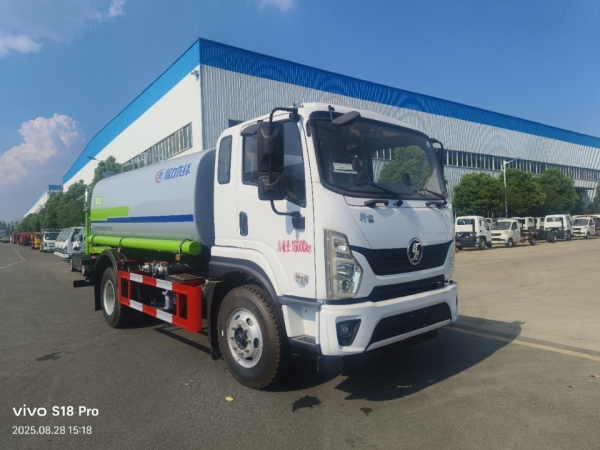

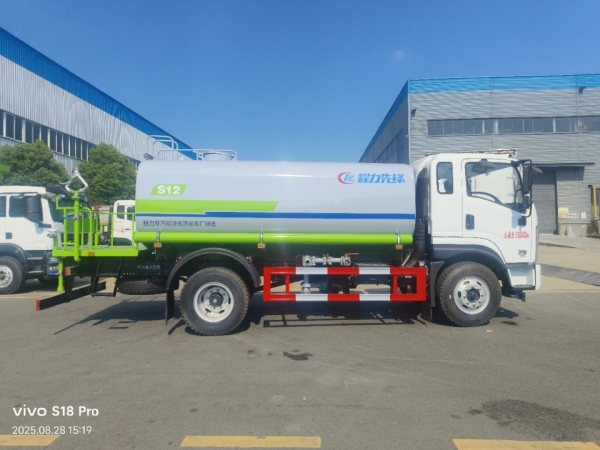

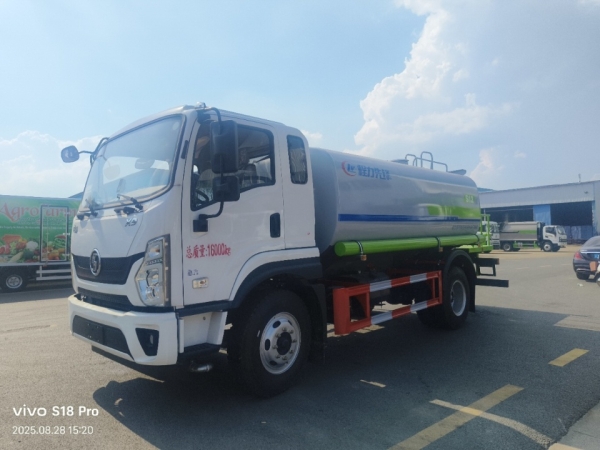

Shacman 12m3 water sprinkler truck body configuration: 12m3 tank, material: tank body made of Q235, partition thickness 3mm, tank body carbon steel thickness 4mm, head thickness 5mm. Large-diameter straight-through ball valve, thickened main pipeline (76mm).

Other accessories: Aluminum alloy rear spray, stainless steel ball valve, high-pressure water cannon.

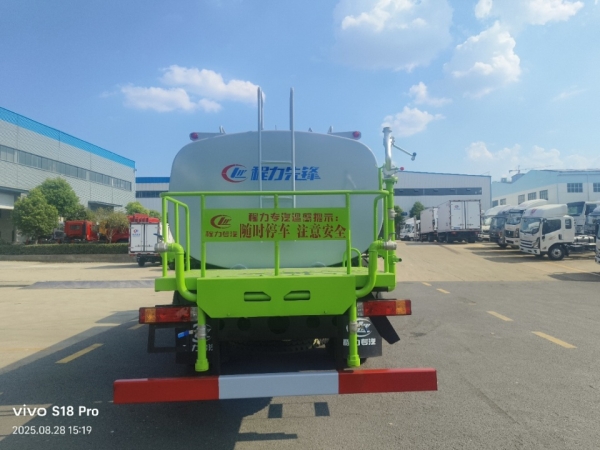

Perforated plate platform: 2mm perforated plate, better anti-slip performance, no water accumulation on the platform, optimized structure, stamped forming, better strength, lightweight design, beautiful and practical, enhancing product grade

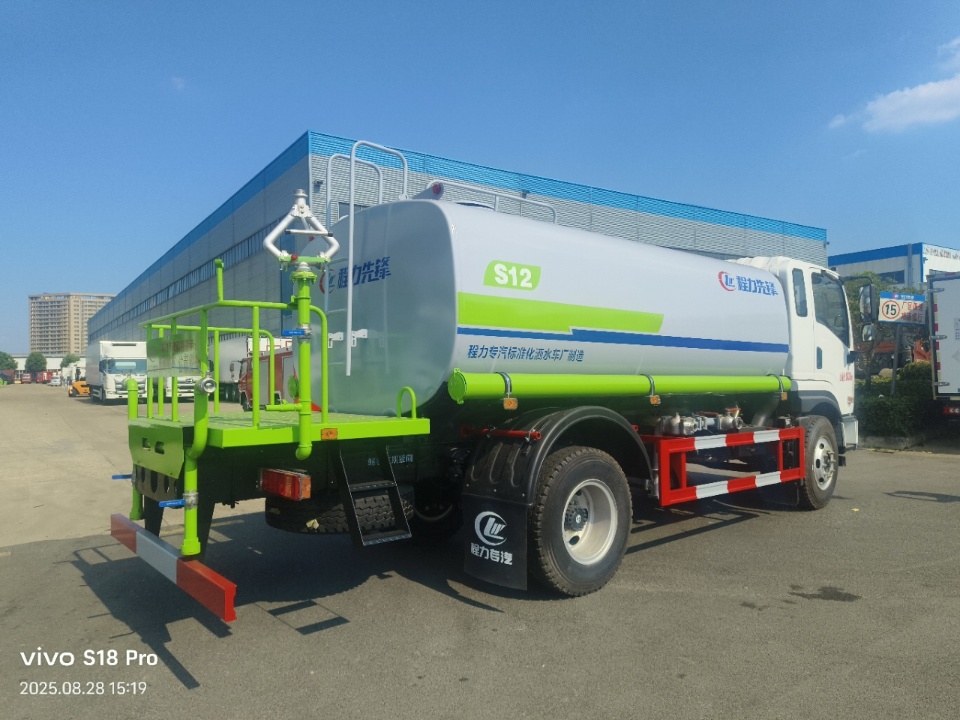

Special performance of the Shacman 12m3 water sprinkler truck: Front spray (flush), rear spray, side spray, rear working platform, high-pressure cannon for greenery watering installed on the platform (adjustable spray shape: straight flush, heavy rain, medium rain, drizzle, continuously adjustable, maximum range up to 30 meters), equipped with high-power dedicated water pump, with fire hydrant connection, with self-flow valve, with self-priming function, with filter screen. Suction height ≥ 6 meters, watering width ≥ 16 meters, range ≥ 30 meters, mist ≥ 15m.

Water sprinkler truck operation vedio:
